Einleitung

The audio amplification PCB is the PCB which has the task of amplifying the B212D speaker's input signals.

  1. Whj2vPTm2CqCGePm
    • CAUTION: Unplug your speaker from the power outlet.

    • Remove the 8 Phillips screws from the back of the speaker.

  2. IlaTRENYXONpJsmU
    • Carefully remove the back panel, lifting out the metal electronics-box with it.

    • To avoid damaging your speaker, remove slowly, as there is still a wire attached from the electronics box to the speaker.

  3. CDRAJbneBDeTaqlW
    CDRAJbneBDeTaqlW
    eWciSVRTwTEcl4L6
    QWImWQCbxU46WNvk
    • There are two silver, 6 mm-long machine screws with two 1/8" inner-diameter washers on the exterior of the metal electronics box; remove these first using a #2 philips screwdriver.

    • There are five of the same type of machine screw (silver, 6 mm-long) remaining around the metal electronics box's exterior; remove these as well.

    • You should have removed a total of 7 machine screws and 2 washers.

    • The reason for removing the two screws with the two washers first (or replacing them last when reassembling) is that their holes are actually slots. They are designed as slots to accommodate slop in the assembly, and if unscrewed out of order, you may have difficulty while removing - or possibly even damage - the other five screws.

  4. LpWvHGtBLOYOOqjk
    • Remove the portion of the metal housing that you freed with the 7 screws in the previous step.

  5. aQVnWBYbMXKjpCik
    aQVnWBYbMXKjpCik
    4YDTL1JqLXAqmHuD
    31BuKwhJAWa2W1nJ
    • Inside the metal electronics box housing is a white clip attached to a small PCB; remove this.

    • The white clip in this image has been glued, indicating that the manufacturer may not expect the end user to remove this clip; it is difficult to proceed with the disassembling without doing so, however, because the rest of the speaker does not provide a sufficient surface on which to work.

    • Snake the clip head through the hole in the metal electronics box casing.

  6. Eu3YFTxp2FBrs5EP
    Eu3YFTxp2FBrs5EP
    tbgIZTORyfpE2tTS
    • Remove the 4, 7/32" long machine screws with a #2 phillips head screwdriver.

  7. jDjWPGvI41CWvdFX
    jDjWPGvI41CWvdFX
    jJX1NYwAacK2iUmS
    • Caution: The circuit board contains many capacitors that could cause serious injury if touched. If possible, use a capacitor discharge probe to safely rid the capacitors of dangerous charges.

    • Rotate the back panel so you can view the interior; note the three wires attached.

    • Remove the wires to you can fully remove the back panel.

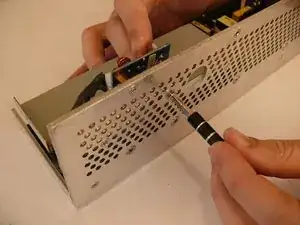

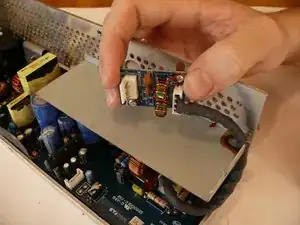

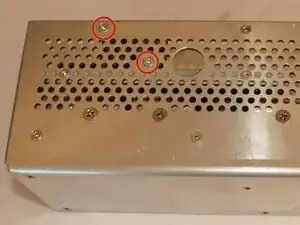

  8. 5DAbLtQPVdcOPCOE
    5DAbLtQPVdcOPCOE
    ygBicwcnotKnouGv
    FcV1joCVDZtOXKIs
    • Remove the 2 indicated flat head machine screws indicated using a #2 phillips head screwdriver.

    • The small PCB could be removed for replacement at this point, but you can also just leave it attached to the audio amplification PCB as you remove other parts.

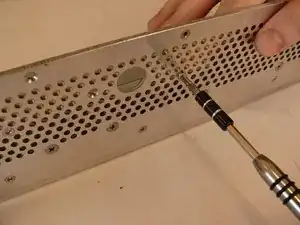

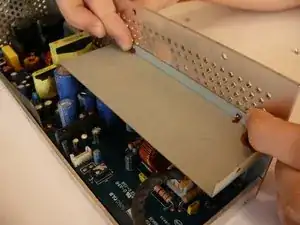

  9. IcSkKtPfcYaspvKg
    IcSkKtPfcYaspvKg
    cOEoysvnwNfQA6Ge
    OxOvqjnexRTghjG6
    • Remove the 2 indicated flat head machine screws using a #2 phillips head screwdriver.

    • Remove and set aside the metal panel that was separating the small PCB from the audio amplification PCB.

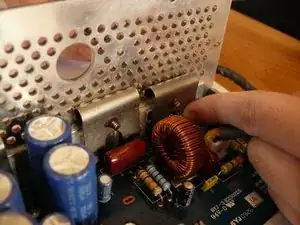

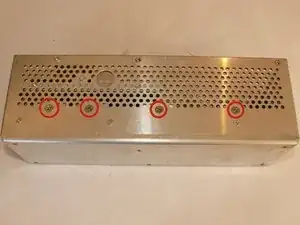

  10. UwvYNsQrb64qrRjS
    UwvYNsQrb64qrRjS
    ncTPXcZUY6NRk6vP
    • Caution: The circuit board contains many capacitors that could cause serious injury. Use a capacitor discharge probe to safely rid the capacitors of dangerous charges.

    • Wearing electrically insulated gloves and rubber soled shoes while working with and near the capacitors ensures greater safety and protection against electric shock. See iFixit's Project Safety page for additional safety information.

    • Note the 4 large flat head machine screws which hold the clamps on the opposite side; remove them with a #2 phillips head screwdriver.

    • The clamps are meant to hold the audio amplification PCB's IC's to the common heat sink; they ensure proper contact between the heat sink and the IC's through the ceramic thermal paste.

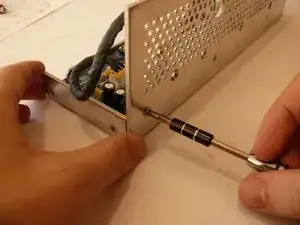

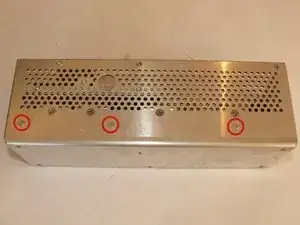

  11. IrUaZPWjnswE3xmS
    IrUaZPWjnswE3xmS
    NP6kA1Yhf4rGlYaj
    • Note the 3 flat head machine screws holding the heat sink to the metal electronics box; remove them using a #2 phillips head screwdriver.

    • It may be possible to leave this heat sink connected, but you will have to separate the heat sink from the IC's and be careful not to touch the ceramic thermal paste: its really hard to remove, even with soap!

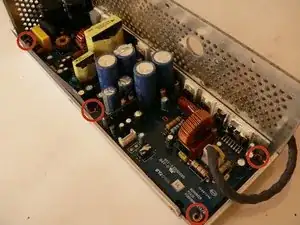

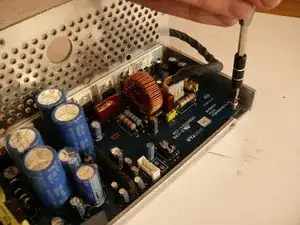

  12. 61RObPqkgECHEG1D
    61RObPqkgECHEG1D
    PTiBDQ5eydQmHKOd
    • Note the location of the 4 indicated machine screws which hold the audio amplification PCB to the metal electronics box; remove them using a #2 phillips head screwdriver.

    • The screws are not actually attached in this photo; sorry!

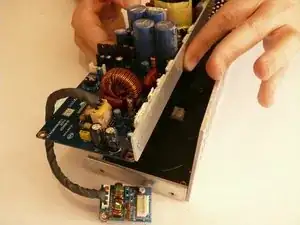

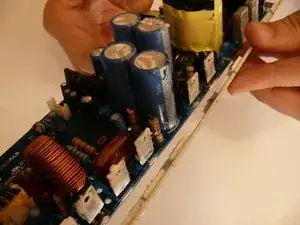

  13. THwedFCOSPkLP5Se
    THwedFCOSPkLP5Se
    FZpTJxZO1RgGVkFS
    • Remove the audio amplification PCB from the metal electronics box.

    • If you haven't already, remove the heat sink from the IC's, being careful not to get any of the ceramic thermal paste on your skin, as it is difficult to remove, even with soap.

    Hi I need replacement parts for the Behringer b212. Where can I buy them?

    shannonleggettemusic@gmail.com

    Shannon Leggette -

    Hi very good tuto but same question ... where i can buy the Audio Amplification PCB? lestyx@wanadoo.fr

    stephane rousseau -

    Same problem, I need one too.

    johngauer -

Abschluss

To reassemble your device, follow these instructions in reverse order.
