Behringer Eurolive B212D Control PCB Replacement

Geschrieben von: Troy W. Weber
  • Kommentare: 4
Behringer Eurolive B212D Control PCB Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

30 - 45 Minuten

Einleitung

The control PCB is attached to the inside of the back panel, and provides access to adjustment knobs and inputs and outputs for the B212D speaker.

  1. Whj2vPTm2CqCGePm

    • CAUTION: Unplug your speaker from the power outlet.

    • Remove the 8 Phillips screws from the back of the speaker.

  2. IlaTRENYXONpJsmU

    • Carefully remove the back panel, lifting out the metal electronics-box with it.

    • To avoid damaging your speaker, remove slowly, as there is still a wire attached from the electronics box to the speaker.

  3. CDRAJbneBDeTaqlW
    CDRAJbneBDeTaqlW
    eWciSVRTwTEcl4L6
    QWImWQCbxU46WNvk

    • There are two silver, 6 mm-long machine screws with two 1/8" inner-diameter washers on the exterior of the metal electronics box; remove these first using a #2 philips screwdriver.

    • There are five of the same type of machine screw (silver, 6 mm-long) remaining around the metal electronics box's exterior; remove these as well.

    • You should have removed a total of 7 machine screws and 2 washers.

    • The reason for removing the two screws with the two washers first (or replacing them last when reassembling) is that their holes are actually slots. They are designed as slots to accommodate slop in the assembly, and if unscrewed out of order, you may have difficulty while removing - or possibly even damage - the other five screws.

  4. LpWvHGtBLOYOOqjk

    • Remove the portion of the metal housing that you freed with the 7 screws in the previous step.

  5. aQVnWBYbMXKjpCik
    aQVnWBYbMXKjpCik
    4YDTL1JqLXAqmHuD
    31BuKwhJAWa2W1nJ

    • Inside the metal electronics box housing is a white clip attached to a small PCB; remove this.

    • The white clip in this image has been glued, indicating that the manufacturer may not expect the end user to remove this clip; it is difficult to proceed with the disassembling without doing so, however, because the rest of the speaker does not provide a sufficient surface on which to work.

    • Snake the clip head through the hole in the metal electronics box casing.

  6. Eu3YFTxp2FBrs5EP
    Eu3YFTxp2FBrs5EP
    tbgIZTORyfpE2tTS

    • Remove the 4, 7/32" long machine screws with a #2 phillips head screwdriver.

  7. jDjWPGvI41CWvdFX
    jDjWPGvI41CWvdFX
    jJX1NYwAacK2iUmS

    • Caution: The circuit board contains many capacitors that could cause serious injury if touched. If possible, use a capacitor discharge probe to safely rid the capacitors of dangerous charges.

    • Rotate the back panel so you can view the interior; note the three wires attached.

    • Remove the wires to you can fully remove the back panel.

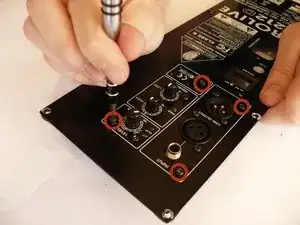

  8. 3o3cyKPJgu1w2Z3p

    • Remove the 4 indicated 9/32" long screws with the #1 phillips head screwdriver

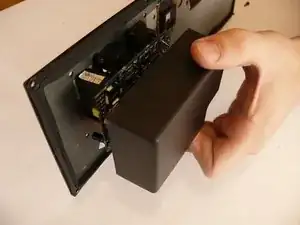

  9. L2MjLcrReZeyWGbN

    • Remove the plastic cover.

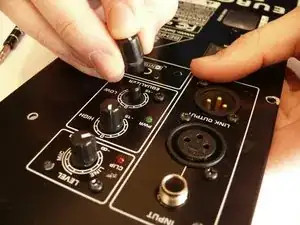

  10. O4oRytZopWhVAuJZ

    • Remove all three of the knobs by pulling them straight up.

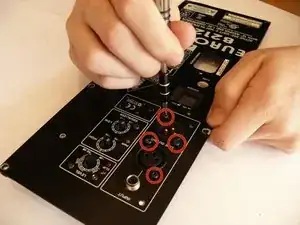

  11. m2CdFvHNhBxMgtXO

    • Remove the 4 indicated 9/32" long screws using a #1 phillips head screwdriver.

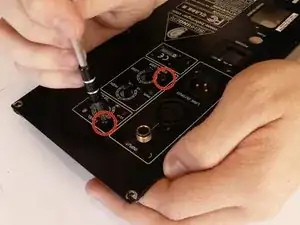

  12. chItLsCPBuGKUsx5

    • Remove the 2 indicated 3/16" long machine screws with a #1 phillips head screwdriver.

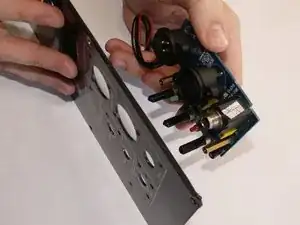

  13. aZA2BhtKRAFDyBDN

    • The control PCB is free now, ready to be removed from the speaker's back panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Troy W. Weber

Mitglied seit: 30/03/12

1359 Reputation

4 Kommentare

In Step 3 there are 2 more screws, along the side of the 'electronics box’.

The washer and nut securing the 1/4” socket also need to be removed.

plasticmojo -

Where do I find a replacement control PCB for my B212A??

jcard2002 -

Hi,i like to conect the board to another amp pcb but i dont now wich cable is for what ,do you now where is the power and the inputs?i already look for schematics but i didnt find anything about..thanx

Manolis Travlos -

Where do I find a replacement control PCB for my B212A??

Frank Hazzard -
