Einleitung

If the light in the drill is not glowing upon use, then this guide will show a step by step process on how to replace the light bulb for the drill.

  1. jMgkkbpVbII4U1GU

    • For this guide we will need to use a 1.0 mm phillips #1 screw.

    • There are a total of thirteen screws that need to be removed in order to open the drill and access the interior components.

  2. Pd5hCDh3EggjGOIt

    • Remove the four screws on the back top side of the drill.

  3. VUm3BDL165D5QNaF

    • Remove the four screws that connect the chuck to the drill.

  4. 6BlOjfEErWYA4nCH

    • Remove the five screws on the front side of the drill.

  5. 6CMopeSCWC2FqVeF

    • Gently grab both sides of the drill casing, and separate both sides from each other.

  6. GsOhQXeFxOsmAmha

    • At this point you should be able to separate both as illustrated.

  7. nHwoZs2d34ncHoLE

    • Now all the components of the drill are visible and can be accessed.

  8. f4NiQQrDQjMjirga

    • After following the prerequisite guide the drill is now open and you can see all the components of the drill.

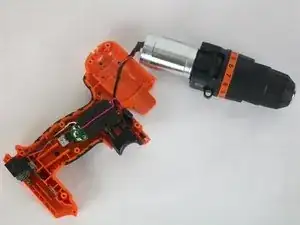

  9. Ju6uZLiu4HTYPV5H

    • First separate the top part of the drill, which includes the motor and the chuck, from the rest of the components.

    • Remove carefully so that wire connection is not damaged throughout this process.

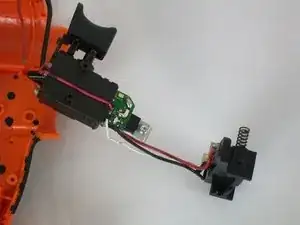

  10. BETdBgiAE1qTXCQ5

    • Then separate the other component which includes the trigger, light, and the connection to the battery.

    • Do this carefully so that no wire connection or any component gets damaged.

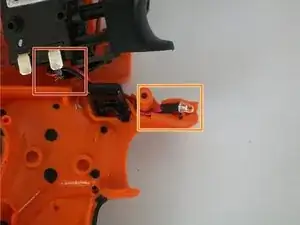

  11. RTBvm2Mmd5vfZPUA

    • First check if the connection to the light is not intact.

    • If the wiring is lose simply reconnect the wire.

    • Then check if the light bulb is not damaged in any way.

    • If the light bulb is broken or simply just burnt; simply replace the light bulb.

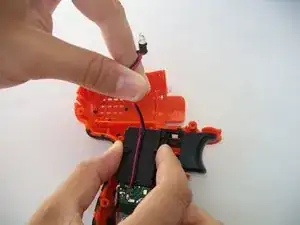

  12. 46VakIiP1yYWGgjS

    • Grab the connection of the light bulb.

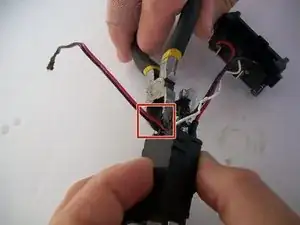

  13. uxehsZqhxLiQGXg1

    • Using pliers cut the two connecting wires from the mother chip.

    • To prevent potential damage to the component, try desoldering the wires. Learn more about soldering here.

Abschluss

To reassemble your device, follow these instructions in reverse order.
