Black and Decker LI2000 Circuit Board Replacement

Geschrieben von: Katherine Simmons
  • Kommentare: 5
Black and Decker LI2000 Circuit Board Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

Use this guide to remove or replace the circuit board in your Black and Decker LI2000.

  1. FxUQHaFXBBWDEdga
    FxUQHaFXBBWDEdga
    yTkaMN6UyjstKsTN
    oVTmmmgUBASMYQFH

    • Remove the following five screws

    • Three 20 mm Phillips #1 screws

    • One 10 mm #000 Phillips screw

    • One 13 mm Phillips 31 screw

    • When you remove the 13 mm screw, the spring may pop out of the screwdriver. Point the backside of the screwdriver away from your face and others.

  2. QDlNel2OsDxDDcwW

    • Remove the black sticker with recycling information.

  3. tECvLjDYhnRy44Jg

    • Use your fingers or a plastic opening tool to pry the casing apart.

  4. ZWUT2ltVjCSLGayD

    • Remove the plastic slider by picking it up off the screwdriver.

    • You may consider leaving half of the casing on the screwdriver to make handling the screwdriver easier.

    You should also leave the switching slider on the motor as it is DIFFICULT to reinstall the switch assembly.

    Bob -

  5. RxD6ZUI4QWo6Annr
    RxD6ZUI4QWo6Annr
    BuXFLHeZFI4XQHUp

    • Remove the four 15mm Phillips #1 screws.

  6. nMYCeoLiF6m3dDo4
    nMYCeoLiF6m3dDo4
    gHQTkJODLP2M22LD

    • Use a plastic opening tool to pry the casing apart.

  7. BZWpQMvp1StuaEBd
    BZWpQMvp1StuaEBd
    EGXtdgtkaMdyONEE

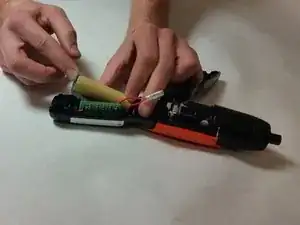

    • Using pliers or your fingers, remove the leads off of the battery.

    where did you get the new battery?

    jack isme -

    YA, don’t find on e-bay or on B&D site. Need PN at least.

    Tom

    Thomas Patridge -

    This is what I got from eBay: https://www.ebay.com/itm/4PCS-18650-2600...

    You have to fudge a bit as the tabs fit the connectors, but are not exactly oriented the same as the original battery.

    Jeff McDermaid -

    Google; Black+and+Decker+LI2000+Battery+Replacement

    Bob -

  8. sGMBWCnH2bfTtX1I

    • Refer to the Soldering Technique Guide to remove the wires on the circuit board that connect the charging adapter by applying heat from iron to existing solder on the board.

    • Keep track of which wire connected to which part of the board.

  9. Zs3pOtCPwUOOTTAF

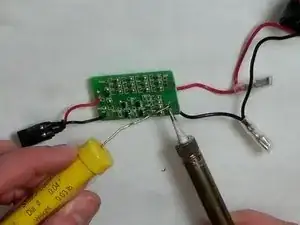

    • Refer to the Soldering Technique Guide to remove the wires from the circuit board that connect to the battery by heating the existing solder on the leads.

    • Keep track of which wire was connected to which part of the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
