Einleitung

Be prepared with the tools listed and also be cautious while going through the steps in this guide as the phone components are quite fragile.

  1. SXrJpbdDAl222JZF
    • Find the small slot on the bottom left corner of the back panel.

    • Slide the spudger into the small slot and lightly twist it. This will cause the corner of the back panel to pop up.

    • When the back panel is loose enough, use your fingers to remove it completely.

    If slot 1 is messed up can you use slot 2 for simcard and the phone still work

    Margie White -

  2. UMPBqxtNN6EfZayj
    • With the back panel off, you should see a large white rectangle. This is the battery. Slide the spudger under the indent on the bottom right of the battery and pull it up.

  3. ufX6PRwomTSJl5A5
    • Using the PH00 Phillips head screwdriver unscrew the screws holding the panel down, making sure to keep track of the position of the screws.

    • The screw holes with the red circle around them hold screws with a 3.5 mm length.

    • The screw holes with the orange circle around them hold screws with a 2.5 mm length.

  4. Xuf4IM2KksBDeSSI
    Xuf4IM2KksBDeSSI
    KusqM6Aww4yNwxto
    • Insert the plastic opening tool into a corner of the plastic panel and gently pry it away from the rest of the phone.

    • Do this for each corner until the panel pops up.

  5. InvpPyelEKEVHKI5
    InvpPyelEKEVHKI5
    ZPLPuYQOBRh5TfsN
    i21KBVelAkrUZHDf
    • Along the right side of the phone you will see a long black wire with 2 gold end pieces on the end. This is the display cable.

    • To disconnect the gold end pieces from the motherboard, take the tweezers and gently but firmly pull upwards. Do this for both ends and the wire will disconnect.

  6. SWV2kEAvFNS2OMwA
    SWV2kEAvFNS2OMwA
    QIbWrOClko4bkFDF
    ThdJ1YWNAmH4duCE
    • Using the tweezers, lift the tabs where the cables are connected, this unlocks the cables. The cables will slide out of sockets easily when they are unlocked. Pull from wire using tweezers as pictured.

    • The red rectangles represent where the cable's are located.

    • The orange rectangles are where the cables pug into the ports. This is where you want to apply the tweezers.

    • There are two black tabs and one blue tab.

  7. kZsZXJLBCf5Bkm1r

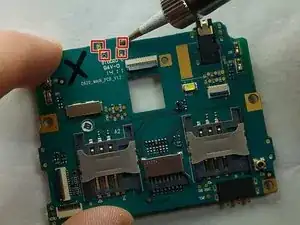

    • Solder the pins on the back of the charging port. Here's a guide to soldering: How to solder

    • Soldering iron can be very hot!

    Eu sugiro que para uma melhor remoção do conector, devemos antes aplicar massa de solda, de modos a amolecer os pinos do conector, e depois aplicar o ferro de estanho sobre o pinos!

    Januário Sacalumbo -

  8. pHXg4cXDdFXqoT1L
    pHXg4cXDdFXqoT1L
    Fynkc4HqnH6xfB1S

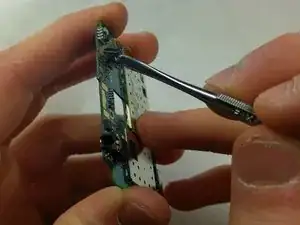

    • Pry charging port away from the board using the metal spudger.

    • It's easier to pry with the metal spudger inserted in the charging port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
