Einleitung

There is nothing more irritating than halfway through your ride your remote dies. Even though today's battery technology keeps improving, batteries eventually die. Luckily batteries are relatively easy to replace.

This guide will instruct you how to properly disassemble your remote and replace the battery. Keep in mind the area around scroll wheel has levers and moving parts inside, so be cautious while opening and closing the remote.

  1. lmk12VTqQOhuf2Jv
    lmk12VTqQOhuf2Jv
    bwgWMrHE4lG1iFC6
    CQjgbLKobBYeS1vY
    • Before disassembling your remote, be sure it is powered off.

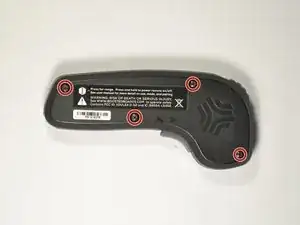

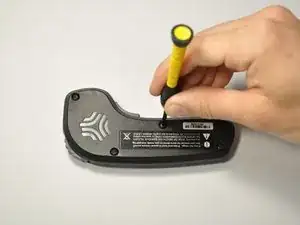

    • Remove the four 17.57mm screws from the bottom of the case with a PH0 screwdriver.

    hi my name is Eugene.  I have a question .  My skateboard remote is gone.  remotes are not sold in my country.  what should i do how can i use the skateboard .  we sell remotes from another company.  how can it be adjusted to my boosted mini .  help me solve the issue please.

    Evgeny Bubnov -

  2. ZbBFgadGmsJJg4dB
    ZbBFgadGmsJJg4dB
    CLeQCBhZC2iDBfGJ

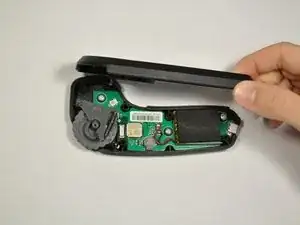

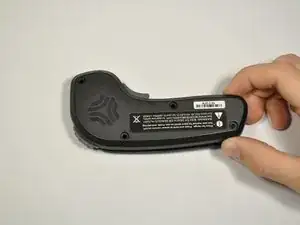

    • Carefully separate the two halves of the casing by pulling them apart at the seam.

    • Be sure to keep the scroll wheel, lever and buttons attached to the housing.

  3. wHkXMORfPQCDnGmO
    wHkXMORfPQCDnGmO
    sZEJqU2kxBQemVxr
    jqKuXOJGEKIT4wxW

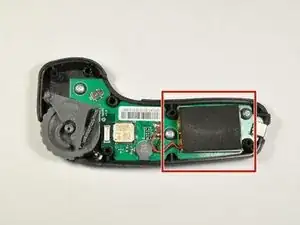

    • Remove the rectangular black adhesive foam on top of the battery by peeling it away from the battery.

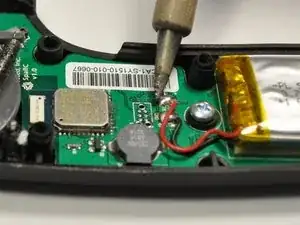

    • Desolder the battery connections from the circuit board.

    • Replace the dead battery with a new 3.7 volt lithium polymer battery.

    • Refer here for more information how to desolder the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
