Bose QuietComfort 25 Motherboard Replacement

Geschrieben von: Samuel Coss
  • Kommentare: 1
Bose QuietComfort 25 Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

30 Minuten

Einleitung

These steps will outlines replacement of the QC25 Motherboard, one of which is located in each earpiece. Be warned, this guide requires precision soldering of very small components and not recommended for the faint of heart.

  1. aWi4RCidqGaNjymI

    • Begin repair by removing the ear cushion.

    • The cushion is held on by a few small plastic clips. Pry carefully with plastic opening tool or fingernails.

  2. 3RMMNyevBD5JjVXG

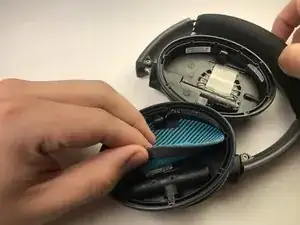

    • Next, remove the soft lining behind the cushion. This is held on with adhesive and is easily removed by hand.

  3. VOEs5eDFAvlMlQRS
    VOEs5eDFAvlMlQRS
    ZHcyFkk5JpFZhLyi
    b4PSD2O3nnOEpRMh

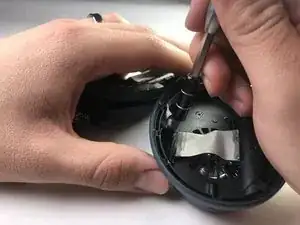

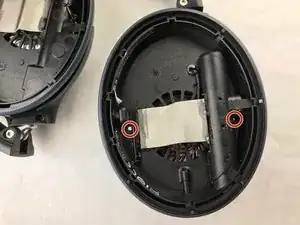

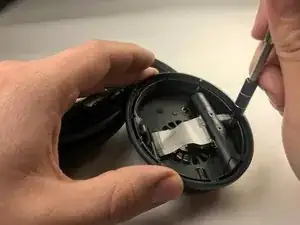

    • Once the soft lining is removed from behind the ear cushion, two screws will be exposed.

    • Carefully remove the two 5 mm screws with a precision screwdriver (PH00) and put aside.

    While you are are unscrewing the screws if you push them in it helps to pop out the cover on the back side which makes it a lot easier to remove.

    Adam -

  4. fHM1mk41GsKdI2GD

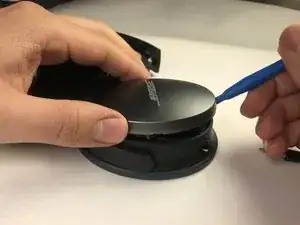

    • Flip the earphones back over and carefully pry around the outside cover of the earpiece.

    • Try a plastic opening tool before moving on to harder metal tools.

    • This cover will come loose with moderate pressure.

  5. pVraN1OBmpH2AjjC
    pVraN1OBmpH2AjjC
    pv5DEsZavMNYxQdc
    HrxFNmCxbmYoZO5O

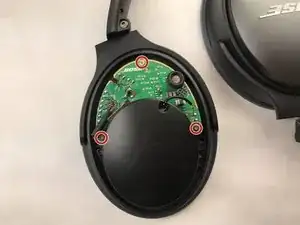

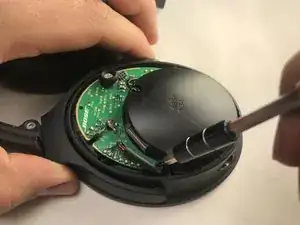

    • There are 3 screws holding the motherboard to the earpiece.

    • Remove these screws to make the next step easier.

  6. RdNVDlm5FFtPmRu4

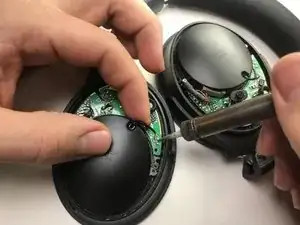

    • Once the motherboard is exposed, all of the soldered connection will need to be removed.

    • Be careful of this step and take note of the position of each wire.

    • This should only be attempted by someone with experience soldering small components, as irreparable damage may be result from improper methods. For help with this step see this guide on Wie man Lötverbindungen herstellt und entlötet

  7. OEYXasyBRXgZ1qx1

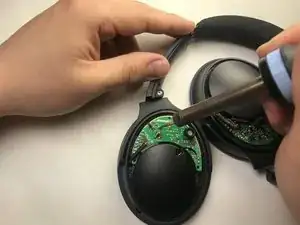

    • After removing all the soldered joints, the motherboard can be removed by hand.

    • The connections will all need to be re-soldered into their respective locations.

Abschluss

To reassemble your device, follow these instructions in reverse order.
