Braven BRV-X Button Module(s) Replacement

Geschrieben von: Trey Peterson
  • Kommentare: 0
Braven BRV-X Button Module(s) Replacement

Schwierigkeitsgrad

Easy

Schritte

15

Zeitaufwand

3 Minuten

Einleitung

If the buttons on your speaker are not working, they may need to be replaced. Use this guide to replace the button module on your Braven BRV-X.

  1. kk5skKYfaJLXpnVQ

    • Remove four 1.1 cm outer screws in the outer shell using the Phillips #00 screwdriver.

  2. Cm2DPjunCRGUHcZy

    • Remove four 1.3 cm inner screws in the outer shell using the 1.5mm Hex screwdriver.

  3. KwRyBZVOBUtFFdvj

    • Gently remove the outer shell.

  4. DfrOsbjF4BOejfFe
    DfrOsbjF4BOejfFe
    QQrldlZjrY6v1aDT

    • Cut adhesive tape on both sides.

  5. LNcLhIAbWtdEPBLC
    LNcLhIAbWtdEPBLC
    VRZ2OpUOUJwmCvEv

    • Remove eighteen 0.9cm screws in the inner shell using the Phillips #00 screwdriver.

  6. sVZmMIam1OrnXTCN
    sVZmMIam1OrnXTCN
    UtAMIPl25FeCaTkF
    KxiKIrIHsiXnjXCh

    • Pry open the glued inner shell using a spudger around all sides of the shell.

    • Don't use too much pressure as that could cause damage to the plastic.

  7. nnEoPSrwHKpDQWEs
    nnEoPSrwHKpDQWEs
    vigKXIAbVmGuSjqF

    • Remove ten 0.7 cm screws in the front plate using the 1.5 mm Hex screwdriver.

  8. Md1dAWgMp1qkFD4R
    Md1dAWgMp1qkFD4R
    UQTsQmcYeYsqgsGk

    • Use a spudger to open the front speaker plate.

  9. QTKLGSs13OBOTpxC

    • Remove three 1.0 cm screws from the battery unit.

    • It is recommended (but not required) to remove the battery.

  10. EUhJ4SuKatttQZMx
    EUhJ4SuKatttQZMx
    w5tIKxvs2PvwPnj6

    • Disconnect the ribbon cable attached the main board.

  11. XINfWxQB6M3ICTLN
    XINfWxQB6M3ICTLN
    QvYsgmZ5xGex5g1V
    AFBavGQDSBmqvUb2

    • Pry open the second plate holding in the speaker using a spudger around all sides.

    • It is recommended to use a spudger to remove the heavily glued areas between the plates before prying.

    • Don't use too much pressure as that could cause damage to the plastic.

  12. pGiWisyVnKEZFI5V
    pGiWisyVnKEZFI5V
    KpSnCHMWeQg2qHkK
    kCXEAYaTGFCnfPPf

    • Cut the 20 gauge wires attached to the front IR sensor and two speaker wires.

    • Leave enough length on the wire to work with it afterwards.

    • Cut the 22 gauge wire attached in the corner.

    • Solder the new speaker plate during reassembly.

    • To properly solder and desolder connections, visit the How to Solder and Desolder Connections guide.

  13. TenXNV6nCYst2NvU
    TenXNV6nCYst2NvU
    ItswGG5xk6WcZOxS

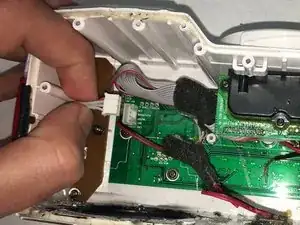

    • Remove the ribbon cable attached to the main board.

    • Pull from the clip and not from the cable.

  14. DeZWcWHaepsQEpMC

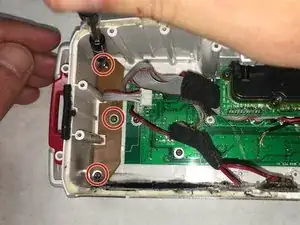

    • Remove three 0.7 cm screws from the button module(s) using the Phillips #00 screwdriver.

  15. GQ1OnSNo2bMa5L3P

    • Gently lift the button module from the enclosure.

Abschluss

To reassemble your device, follow these instructions in reverse order.
