Braven BRV-X Front Speaker Panel Replacement

Geschrieben von: Trey Peterson
  • Kommentare: 0
Braven BRV-X Front Speaker Panel Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

20 - 30 Minuten

Einleitung

Use this guide to remove the front speaker panel in your device. You’ll need to know how to solder to fully replace the speaker panel in your Braven BRV-X. The How to Solder and Desolder Connections guide may help you with this guide.

  1. kk5skKYfaJLXpnVQ

    • Remove four 1.1 cm outer screws in the outer shell using the Phillips #00 screwdriver.

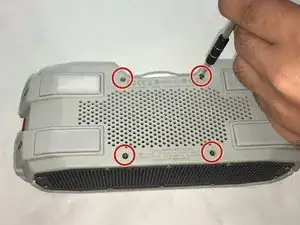

  2. Cm2DPjunCRGUHcZy

    • Remove four 1.3 cm inner screws in the outer shell using the 1.5mm Hex screwdriver.

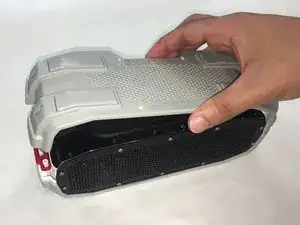

  3. KwRyBZVOBUtFFdvj

    • Gently remove the outer shell.

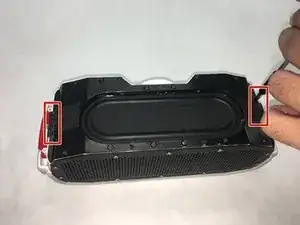

  4. DfrOsbjF4BOejfFe
    DfrOsbjF4BOejfFe

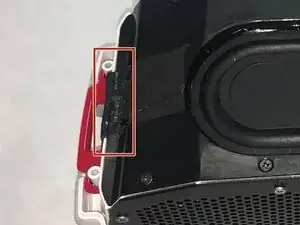

    QQrldlZjrY6v1aDT

    • Cut adhesive tape on both sides.

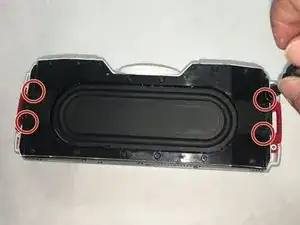

  5. LNcLhIAbWtdEPBLC
    LNcLhIAbWtdEPBLC

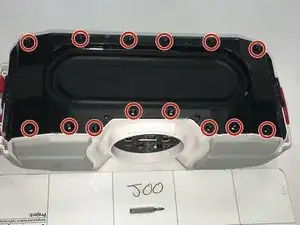

    VRZ2OpUOUJwmCvEv

    • Remove eighteen 0.9cm screws in the inner shell using the Phillips #00 screwdriver.

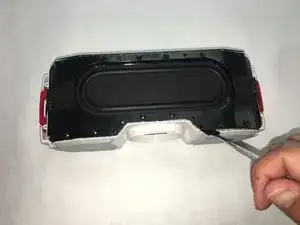

  6. sVZmMIam1OrnXTCN
    sVZmMIam1OrnXTCN

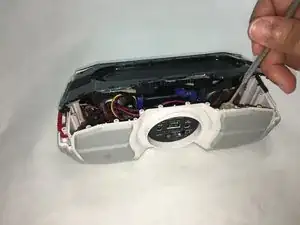

    UtAMIPl25FeCaTkF
    KxiKIrIHsiXnjXCh

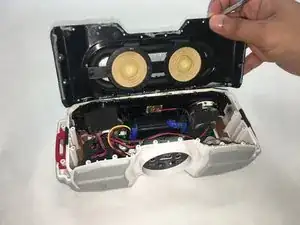

    • Pry open the glued inner shell using a spudger around all sides of the shell.

    • Don't use too much pressure as that could cause damage to the plastic.

  7. nnEoPSrwHKpDQWEs
    nnEoPSrwHKpDQWEs
    vigKXIAbVmGuSjqF

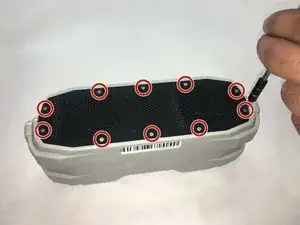

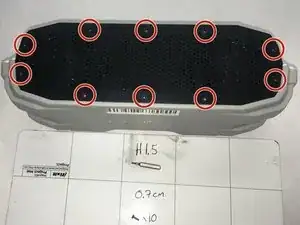

    • Remove ten 0.7 cm screws in the front plate using the 1.5 mm Hex screwdriver.

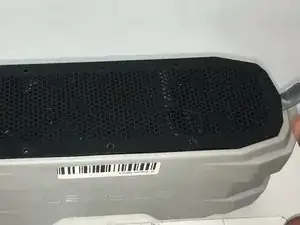

  8. Md1dAWgMp1qkFD4R
    Md1dAWgMp1qkFD4R
    UQTsQmcYeYsqgsGk

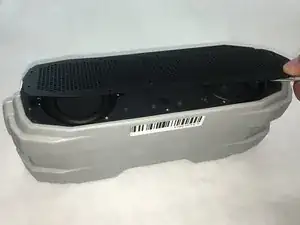

    • Use a spudger to open the front speaker plate.

  9. QTKLGSs13OBOTpxC

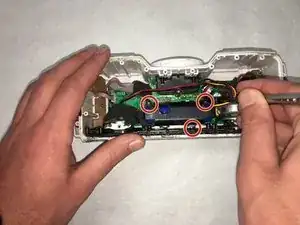

    • Remove three 1.0 cm screws from the battery unit.

    • It is recommended (but not required) to remove the battery.

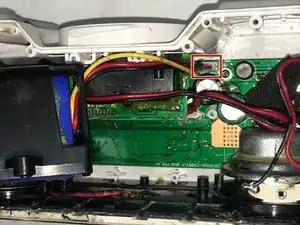

  10. EUhJ4SuKatttQZMx
    EUhJ4SuKatttQZMx

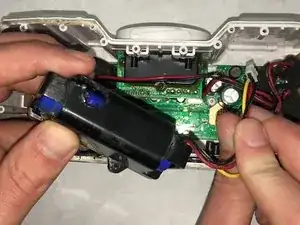

    w5tIKxvs2PvwPnj6

    • Disconnect the ribbon cable attached the main board.

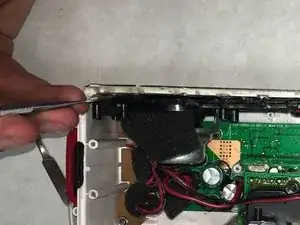

  11. XINfWxQB6M3ICTLN
    XINfWxQB6M3ICTLN
    QvYsgmZ5xGex5g1V

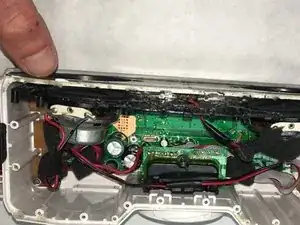

    AFBavGQDSBmqvUb2

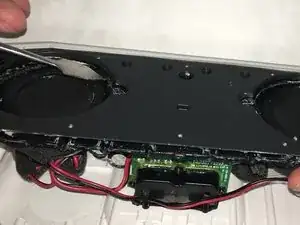

    • Pry open the second plate holding in the speaker using a spudger around all sides.

    • It is recommended to use a spudger to remove the heavily glued areas between the plates before prying.

    • Don't use too much pressure as that could cause damage to the plastic.

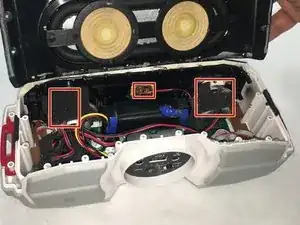

  12. pGiWisyVnKEZFI5V
    pGiWisyVnKEZFI5V

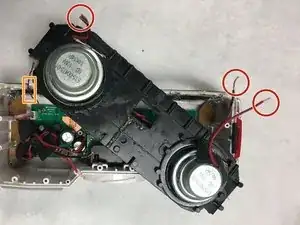

    KpSnCHMWeQg2qHkK

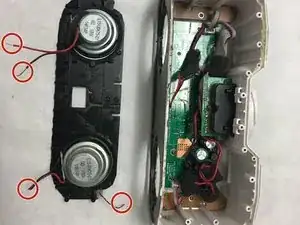

    kCXEAYaTGFCnfPPf

    • Cut the 20 gauge wires attached to the front IR sensor and two speaker wires.

    • Leave enough length on the wire to work with it afterwards.

    • Cut the 22 gauge wire attached in the corner.

    • Solder the new speaker plate during reassembly.

    • To properly solder and desolder connections, visit the How to Solder and Desolder Connections guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
