Canon PowerShot A4000 IS Flash Replacement

Geschrieben von: Ansley Gardner
  • Kommentare: 1
Canon PowerShot A4000 IS Flash Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

  1. lInBNtgwmEBZqIjD
    lInBNtgwmEBZqIjD
    IbwqGSnTQpIMyf2n
    uLLFg2cPaCaudGwT

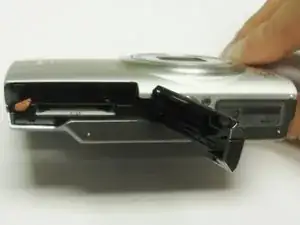

    • Remove the battery and data card. Refer to the Battery Removal and Memory Card Removal guides.

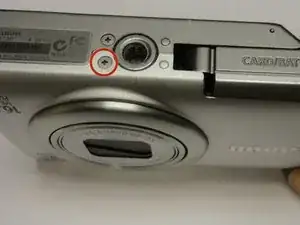

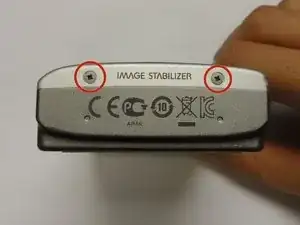

    • Use a Philips head screwdriver (PH000) to remove the screws circled in the picture. Screw Sizes: 4 millimeters.

  2. bn2sjKBViRqMTifK
    bn2sjKBViRqMTifK
    I6EaNBn4C2Rjc1IK

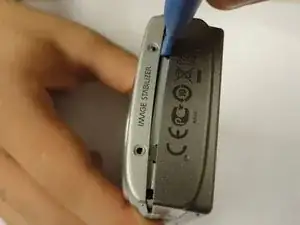

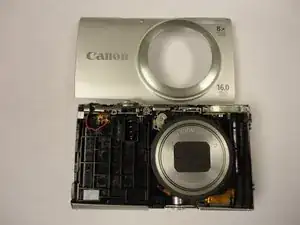

    • Use the spudger tool to gently lever the front cover off.

  3. 1VvZkmNsImbJtCCX
    1VvZkmNsImbJtCCX
    gtSaAJFtGKRIWXRV
    WLT5GHSWtHChGlp2

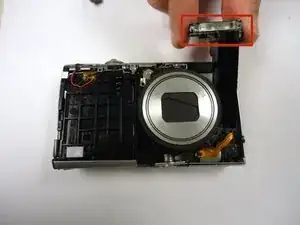

    • The flash is not held very securely in the camera so be careful. Make sure someone is holding on to it so it does not fall out.

    • Your flash should come out very easily if you use your spudger to lever it out carefully.

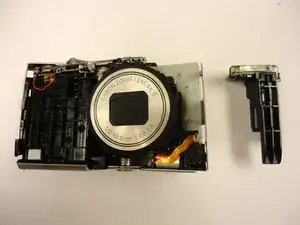

    • Once the bulb piece of the flash is clear of the camera body, simply use your fingers to lift the flash clear of the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
