Canon Powershot ELPH 100 HS Speaker Replacement

Geschrieben von: Jacob

Kommentare: 0

Canon Powershot ELPH 100 HS Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

This guide will walk you through replacing a damaged speaker in your Canon Powershot ELPH 100.

This process involves soldering—make sure you are proficient at soldering before attempting this task.

Because many soldering irons take time to heat up, turn yours on before beginning. This will save you time later on in the procedure.

Werkzeuge

Schritt 1

Locate the battery cover on the bottom of your camera.
Slide the tab to the right to open the battery cover.

Schritt 2

Flip the battery cover open.
Using your fingers, slide the battery out of the camera.
This was not the original battery that came the camera, so yours may look different.

Schritt 3

Push down on the memory card until it clicks and releases.
Pull up on the memory card to remove it.

Schritt 4

Using the Phillips #00 screwdriver, remove the two 3.1mm screws from the bottom of the camera.
Keep track of all the screws that are being taken out from the outer case.
The display screen of the camera should be facing towards you.

Schritt 5

Ensure that the screen is facing you, and then rotate it till you see the screws on the side of the camera.
Use the Phillips #00 screwdriver to remove the two 3.1 mm screws.

Schritt 6

With the screen still facing you, rotate the camera 180 degrees.
The side with the charging port should now be facing up.

Schritt 7

Use the Philips #00 screwdriver to pry open the charging port cover.
Once you pry open the charging port cover, rotate the cover so that you have access to the screw underneath. Which is seen in the next image.
Remove both 3.1 mm screws using the Phillips #00 screwdriver.
The image still shows the screw from step 3 in place.

Schritt 8

Turn the camera so the bottom is once again facing up.
With the battery door still open, use a spudger to remove the cover from the front of the camera.
Carefully go around all of the edges until the cover is released.

Schritt 9

Once the entire front cover has been released carefully pull it off.
Be careful not to break the tabs that hold it in place.

Schritt 10

Just like Step 4-6 , carefully use the Spudger to remove the back cover.
Go along all the borders of the back cover so that it releases from the camera safely.
Be careful not to break the tabs.

Schritt 11

Turn on soldering Iron.

Schritt 12

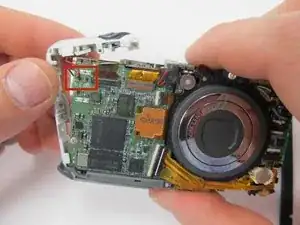

Gently remove the tabs surrounding the power button on the housing of the camera.
Be careful not to break the wires that connect the housing to the body of the camera.

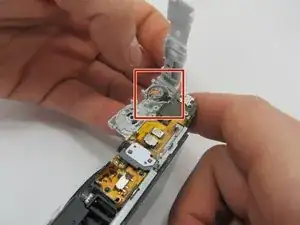

Schritt 13

Make sure the battery is removed.
Cut the wires half way between the microphone and body of camera.
Leave 25mm of wire on the speaker when cutting the wire

Schritt 14

Strip the ends of the newly cut wires.
Expose only 2 mm of bare wire.

Schritt 15

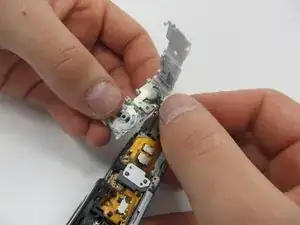

Remove the 3.1mm screw holding speaker to the housing.

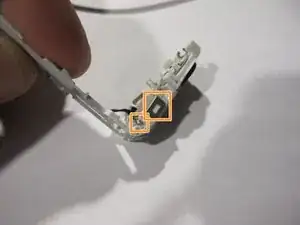

Remove the two clips and the metal cover will be released
When you remove the metal cover the spring will shoot out.
Take note of the spring and its orientation, it will need to be re-installed later
Image of the spring

Schritt 16

Using tweezers, grab the wires to pull the speaker from the plastic housing.
Use force as the speaker is glued to the housing.

Schritt 17

Test the heat of the soldering iron by touching it to the tip of a paperclip.
If the tip of the paperclip melts, the iron should be ready.
If you have never used a soldering iron before, please consult the tutorial in the description of this guide, or watch the following video: How To Solder Or Soldering Techniques.

Schritt 18

Solder the red wire to the right terminal, and the black wire to the left terminal.
Do not apply force to the speaker wires during this step. If the wires break, you will need to re-solder them.

Schritt 19

Place the speaker back in it's housing.

Schritt 20

Place the metal cover over the speaker.
Do not attach the screw.

Schritt 21

Lift up the corner of the metal cover and slide the spring in so it rests around the screw hole.
After the spring is around the screw hole post, replace the screw so that the cover stays in place.
