Casio LK-170 Speaker Replacement

Geschrieben von: Samantha Baker
  • Kommentare: 1
Casio LK-170 Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

40 - 50 Minuten

Einleitung

To properly hear the gorgeous notes played from the keys, the replacement for the speaker(s) of the keyboard will take a bit of time as you need a screwdriver and soldering iron. Note that these instructions are to replace the left speaker, but the same steps can be taken to replace the right speaker.

  1. SwfZEULnTBvCtUmL
    SwfZEULnTBvCtUmL
    nsCRTSRATN6QmKYN
    HuGlXHPEjWsmfNWt

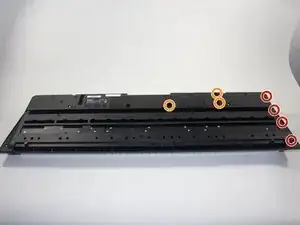

    • Locate the seven 11mm screws on the back of the keyboard in order to remove the speaker from the front of the keyboard.

    • There are 7 screws that need to be removed in total to replace one speaker. Use a JIS-1 screwdriver to remove these screws: 2 on the back panel, and 4 on the side of the keyboard.

    • Three of these seven screws are slightly hidden and may be hard to find.

  2. xMWOTSAwsZiOGkBj
    xMWOTSAwsZiOGkBj
    2wBxYdmiyySWZRFF

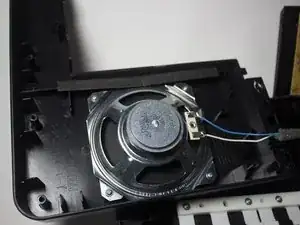

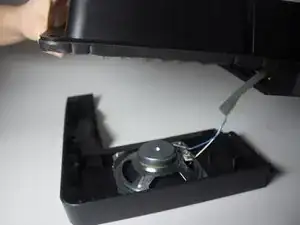

    • Gently remove the speaker and its compartment from the front of the keyboard.

  3. e6SyLRxHQJcCn4KP

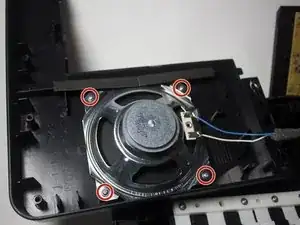

    • Remove the four 11 mm screws with JIS-1 screwdriver on the four corners of the silver square on the back of the speaker.

  4. 65tmbm5vPiDdBcRQ
    65tmbm5vPiDdBcRQ
    odpTSXqWgEOcSoLZ

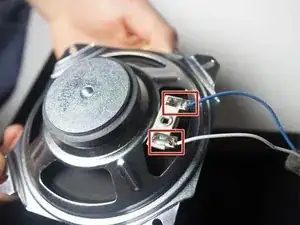

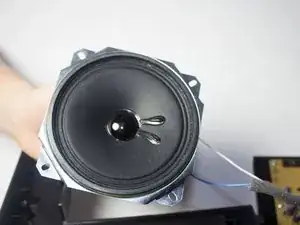

    • A soldering iron is needed to remove the wires connected to the speaker in order to fully replace it. For soldering help, take a look at the Soldering and Desoldering Connections guide.

    • Desolder the metal that attaches the blue and white wires to the speaker.

    • Remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
