Cineyo BT-03 Device Charging Port Replacement

Geschrieben von: Rene Klopf
  • Kommentare: 8
Cineyo BT-03 Device Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

30 Minuten

Einleitung

This guide will take you step by step through the simple process of replacing your charging port.

  1. 6jjbErJIok6MkAxA
    6jjbErJIok6MkAxA
    TyXVPLAoUylme4Y3
    psuFAuJT41SCKGkE

    • Remove the top (button side) rubber cover using your hands.

    The third picture in step 1 could be more focused.

    Sarah Hamrin -

  2. vGptoVnDCUXRfLUC
    vGptoVnDCUXRfLUC
    RgYHCykchLSNCLxV

    • Flip over the device and remove the bottom rubber cover using your hands.

    In the picture for step two, the device should be in clear focus. The hands can be blurry, but the device must be in focus.

    Sarah Hamrin -

  3. yOxfumEALTVUbYYF
    yOxfumEALTVUbYYF
    ySNFrwVVHABaWdxZ
    FiZDnjJL2mIGSbTH

    • Using your hands, pull off the plastic side cover (on the side with the audio jack) using the indented tab. The indented tab has been highlighted in the picture.

    The first picture in step 3 could be more focused.

    Sarah Hamrin -

  4. TOvRukfbwcqcunsx
    TOvRukfbwcqcunsx
    CIVlXTrxusoCGIW1
    JsphVNgxY6oWktCy

    • Detach the plastic speaker cover on both the front and back sides. Then slide the cover off of the device.

    • The cover should remain as one solid piece.

  5. MlfilHJOmIsQo2ds

    • Remove the five 1 cm screws on the back side (opposite of the speakers) of the device using a Phillips #1 screwdriver.

  6. gFLNJOMvGklIMEev

    • Gently pull apart the two sections of the device.

    In particular, the background of step 6 could be much whiter. The rest of the photos could be whiter as well.

    Sarah Hamrin -

  7. EmHccuRLXu1lskFA

    • Disconnect all wires from the top of the circuit board.

    The parts of the device mentioned in the bullet (circled in red) need to be in focus in the picture.

    Sarah Hamrin -

  8. YgHcuKsBX5XEuHLY

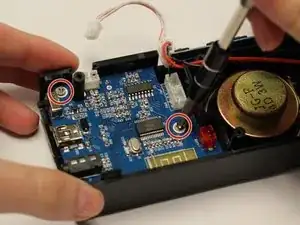

    • Using a small Philips head screwdriver, remove the two 5 mm screws from the main circuit board.

    In step 8, make sure both areas circled in red are in clear focus. Try to have the whole device in focus.

    Sarah Hamrin -

  9. JcXrFjEmXsS4lvBk
    JcXrFjEmXsS4lvBk
    VGkFFsMBNEhCCYIT
    XW4LPX3kfTDKPdfx

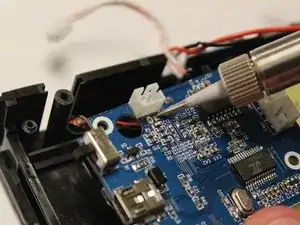

    • Use the soldering iron to melt the two contact points that attach the wires to the rear side of the circuit board.

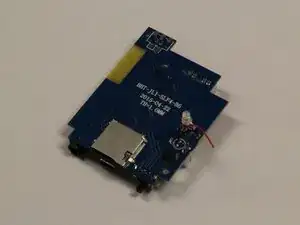

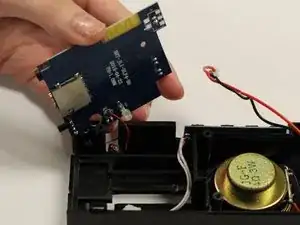

    • This will require soldering off the wires connecting the bottom of the circuit board to the device. iFixit's Soldering Guide is available to aid in soldering.

    In step 9, mark where the two contact points are by highlighting them. Also, "2" should be spelled out as "two" according to both MLA and APA formatting guidelines. Also, what are the second and third photos trying to express? I don't understand their purpose.

    Sarah Hamrin -

  10. lrq1fY2IWqPw42Bw
    lrq1fY2IWqPw42Bw
    nDqiSiwxCrsJLBaF

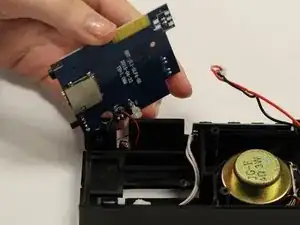

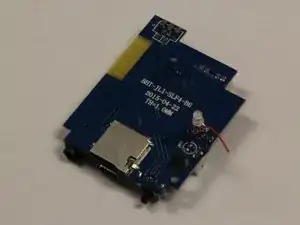

    • Remove the circuit board from the device.

  11. DtWBFl2a1yxCpag2

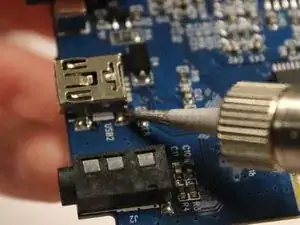

    • Using a soldering iron, remove the charging port from the circuit board.

    This picture needs to be in focus. Also, I don't see how this picture and the bullet point relate. More bullet points or more pictures (or both) should be added.

    Sarah Hamrin -

Abschluss

To reassemble your device, follow these instructions in reverse order.
