Cineyo BT-03 Device Page Button Replacement

Geschrieben von: Rene Klopf
  • Kommentare: 4
Cineyo BT-03 Device Page Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

25 Minuten

Einleitung

This guide will take you step by step through the steps of replacing your devices buttons.

  1. 6jjbErJIok6MkAxA
    6jjbErJIok6MkAxA
    TyXVPLAoUylme4Y3
    psuFAuJT41SCKGkE

    • Remove the top (button side) rubber cover using your hands.

    The third picture in step 1 could be more focused.

    Sarah Hamrin -

  2. vGptoVnDCUXRfLUC
    vGptoVnDCUXRfLUC
    RgYHCykchLSNCLxV

    • Flip over the device and remove the bottom rubber cover using your hands.

    In the picture for step two, the device should be in clear focus. The hands can be blurry, but the device must be in focus.

    Sarah Hamrin -

  3. yOxfumEALTVUbYYF
    yOxfumEALTVUbYYF
    ySNFrwVVHABaWdxZ
    FiZDnjJL2mIGSbTH

    • Using your hands, pull off the plastic side cover (on the side with the audio jack) using the indented tab. The indented tab has been highlighted in the picture.

    The first picture in step 3 could be more focused.

    Sarah Hamrin -

  4. TOvRukfbwcqcunsx
    TOvRukfbwcqcunsx
    CIVlXTrxusoCGIW1
    JsphVNgxY6oWktCy

    • Detach the plastic speaker cover on both the front and back sides. Then slide the cover off of the device.

    • The cover should remain as one solid piece.

  5. MlfilHJOmIsQo2ds

    • Remove the five 1 cm screws on the back side (opposite of the speakers) of the device using a Phillips #1 screwdriver.

  6. gFLNJOMvGklIMEev

    • Gently pull apart the two sections of the device.

    In particular, the background of step 6 could be much whiter. The rest of the photos could be whiter as well.

    Sarah Hamrin -

  7. unDGIxOaXE3PRPSg
    unDGIxOaXE3PRPSg
    TpAITZUdXhsdUZvs

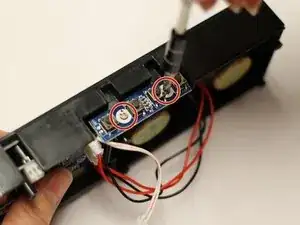

    • With a Phillips #1 screwdriver, remove the two 5mm screws which attach the button mount to the plastic casing of the device.

  8. yDcTkMXg5AX4P3UP
    yDcTkMXg5AX4P3UP
    XNX6jiiDWEq2u3XP

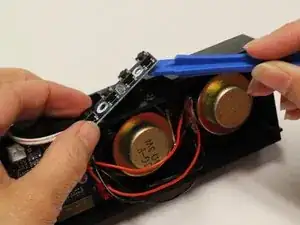

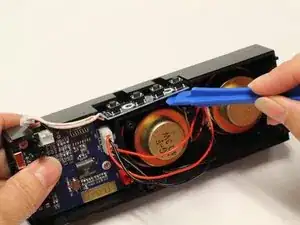

    • Using a plastic opening tool, pry the button mount off of the plastic casing of the device.

  9. LQ2gkBTAWHhRFfw4
    LQ2gkBTAWHhRFfw4
    xK2uCwBj6JoTRUUI

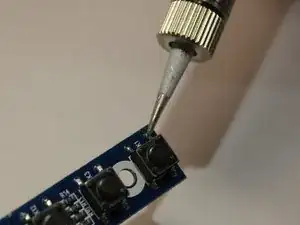

    • Using a soldering iron and iFixit’s Soldering Guide, remove the individual buttons.

Abschluss

To reassemble your device, follow these instructions in reverse order.
