Cineyo BT-03 Device Speaker Replacement

Geschrieben von: Rene Klopf
  • Kommentare: 7
Cineyo BT-03 Device Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

25 Minuten

Einleitung

This guide will take you step by step through the process of replacing your speakers.

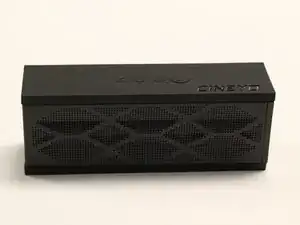

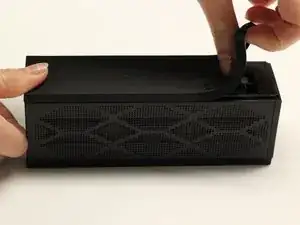

  1. 6jjbErJIok6MkAxA
    6jjbErJIok6MkAxA
    TyXVPLAoUylme4Y3
    psuFAuJT41SCKGkE

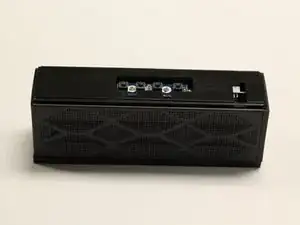

    • Remove the top (button side) rubber cover using your hands.

    The third picture in step 1 could be more focused.

    Sarah Hamrin -

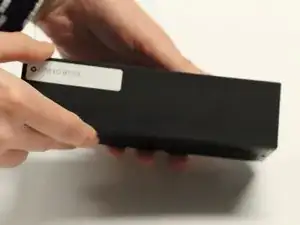

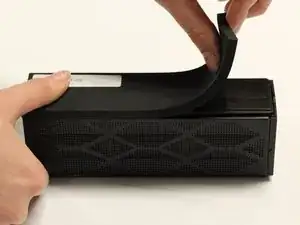

  2. vGptoVnDCUXRfLUC
    vGptoVnDCUXRfLUC
    RgYHCykchLSNCLxV

    • Flip over the device and remove the bottom rubber cover using your hands.

    In the picture for step two, the device should be in clear focus. The hands can be blurry, but the device must be in focus.

    Sarah Hamrin -

  3. yOxfumEALTVUbYYF
    yOxfumEALTVUbYYF
    ySNFrwVVHABaWdxZ
    FiZDnjJL2mIGSbTH

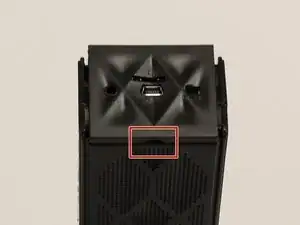

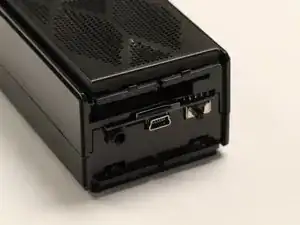

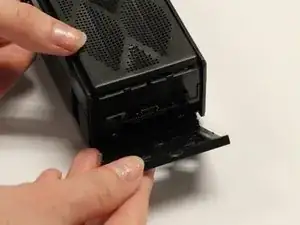

    • Using your hands, pull off the plastic side cover (on the side with the audio jack) using the indented tab. The indented tab has been highlighted in the picture.

    The first picture in step 3 could be more focused.

    Sarah Hamrin -

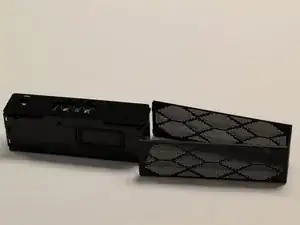

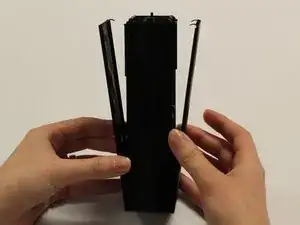

  4. TOvRukfbwcqcunsx
    TOvRukfbwcqcunsx
    CIVlXTrxusoCGIW1
    JsphVNgxY6oWktCy

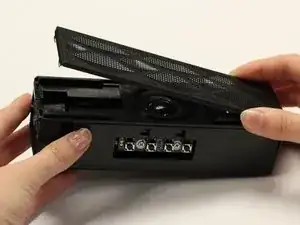

    • Detach the plastic speaker cover on both the front and back sides. Then slide the cover off of the device.

    • The cover should remain as one solid piece.

  5. MlfilHJOmIsQo2ds

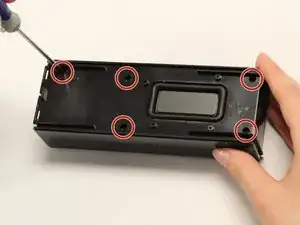

    • Remove the five 1 cm screws on the back side (opposite of the speakers) of the device using a Phillips #1 screwdriver.

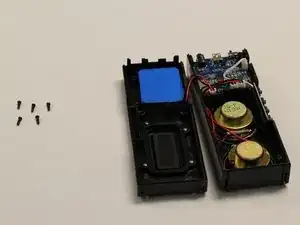

  6. gFLNJOMvGklIMEev

    • Gently pull apart the two sections of the device.

    In particular, the background of step 6 could be much whiter. The rest of the photos could be whiter as well.

    Sarah Hamrin -

  7. SYpMPIXFSCuLkWVF

    • Separate the wires so that each white cap distinctly has a single red and single black wire coming out of it.

    • This is to make it safe and easy to disconnect the wires.

    This picture needs to be in better focus.

    Sarah Hamrin -

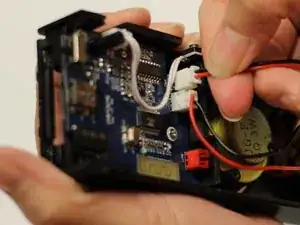

  8. GRm4N2LKVcBxeoCg

    • Disconnect the two sets of wires by pulling on the wires until the white cap detaches from the circuit board.

    • Make sure to leave the white casing attached to the circuit board.

    This picture needs to be in better focus. Also, you might try highlighting the bullet points on the picture.

    Sarah Hamrin -

  9. sWSdKgAQdRbiXVUj
    sWSdKgAQdRbiXVUj
    vebcRvcAIcclZLPQ

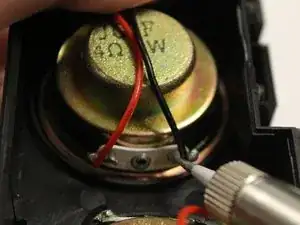

    • Detach the solder points on each gold speaker in order to release and remove them.

    • For help soldering, please review iFixit's Soldering Guide.

    The part of the device mentioned in the bullet points is not in clear focus in the picture. The point that you are talking about should be clearly visible and not blurry.

    Sarah Hamrin -

Abschluss

To reassemble your device, follow these instructions in reverse order.
