ClickN Kids Tablet Battery Replacement

Geschrieben von: Kevin Finney
  • Kommentare: 3
ClickN Kids Tablet Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

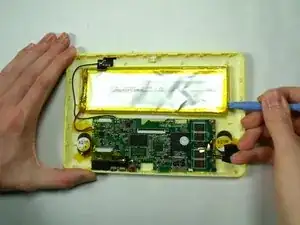

  1. NjSbj2BoYyS4OCMb

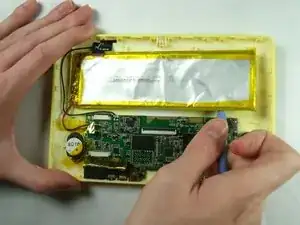

  2. XgbF2ktCcFAYOJKO

    • The battery is connected to the back side by a strong adhesive.

    • The battery may bend during this process.

    • Be careful not to damage the wires or the black tab attached to the battery.

    • Be careful not to allow the battery to bend any more than necessary. Battery acid leakage is possible.

    • Pry the battery off the back side with a plastic opening tool.

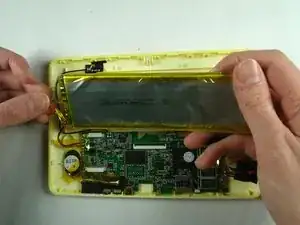

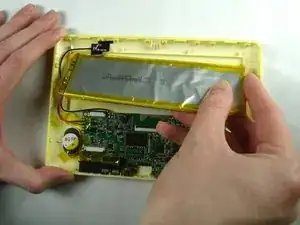

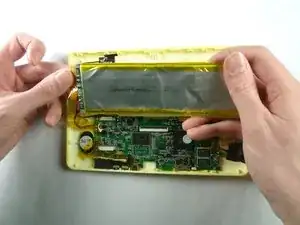

  3. MlHKLErnxyHRVBVB
    MlHKLErnxyHRVBVB
    DWCsLx3eYppxHVKF
    h1TDIoaYYGIWqkGR

    • Pull the tape off the side with the wires and circuit piece.

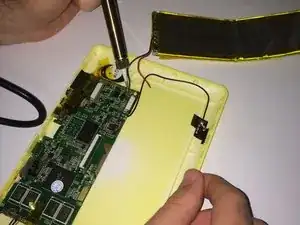

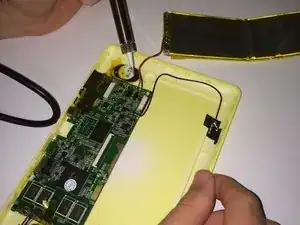

  4. 1bs2EryhDTBPtYuN
    1bs2EryhDTBPtYuN
    ofRMEEeoVNf4AR2H
    MsQAdO1vTbNUQTFW

    • Have someone who is skilled in soldering to perform this step.

    • Be careful not to destroy the motherboard or other parts of device.

    • Desolder the wires connecting the battery to the motherboard from the contact points on the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
