The purpose of this guide is to communicate steps on how to replace or repair the controller ports on a ColecoVision.
-
-
Flip the ColecoVision over with the pegs facing the ceiling.
-

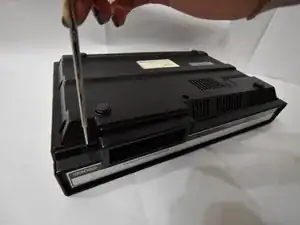

Remove the eight 15mm screws holding the bottom of the ColecoVision in place using the Phillips #1 screwdriver.
-
-
-

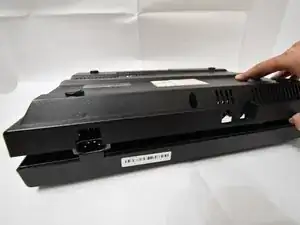

Carefully remove the bottom of the ColecoVision out of the top.
-
I would recommend running a metal spudger along the rim of the case to remove the bottom.
-
-
-
Remove the two 15mm screws holding the casing in place using the Phillips #1 screwdriver.
-

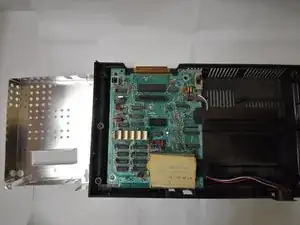

Remove the casing and put it to the side.
-
-
-

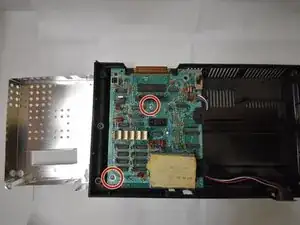

Remove the two 15mm screws on the motherboard with a Phillips #1 screwdriver.
-

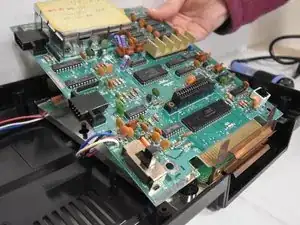

Pull the entire motherboard towards the back of the system and carefully lift the entire motherboard.
-
-
-
Flip the motherboard over and locate the two controller ports.
-
Using a soldering iron, desolder the controller ports.
-
After waiting for controller ports to cool down, flip motherboard back over and carefully lift controller ports to remove.
-
To reassemble your device, follow these instructions in reverse order.
