Comfort Zone CZ6C Motor Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

Before replacing your fan's motor, use this Comfort Zone CZ6C Fan Blades Replacement Guide.

  1. 5cTK26yxwNQXHC1n
    5cTK26yxwNQXHC1n
    Z5gCWBDp2Wxg4HDU
    6YayA51TTvE6Ckmr

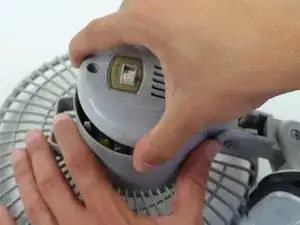

    • Make sure to unplug the Comfort Zone CZ6C before replacing the motor. This will prevent the risk of electrocution.

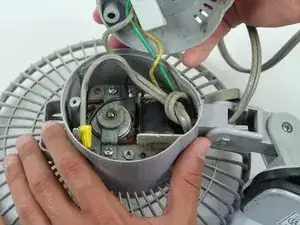

    • Unscrew the main housing screw located right above the main switch using a Phillips screwdriver.

    • Then use gentle force to remove the main housing door.

    • Remember to keep track of your screws!

    good morning: this fan is not the fans that i have, but do think i can use these instructioins to help me with repairs on my clipon fans. thank you,

    ray6669k -

  2. lrBFV6cQGjGZH4gO
    lrBFV6cQGjGZH4gO
    xgFqct23BrJUl2aS
    UOUxBwbSbZCLcblt

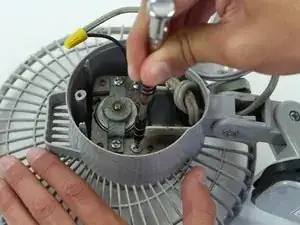

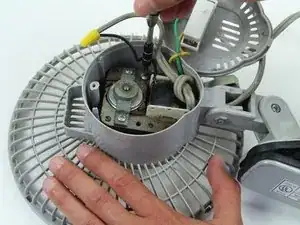

    • Unscrew the two adjacent housing screws to free the motor cage from the housing.

  3. cywB6XiV2RQNsBuM
    cywB6XiV2RQNsBuM
    LFabASrPKWEpeqIN
    GTLowXfPrtDiyoLU

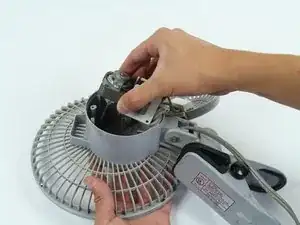

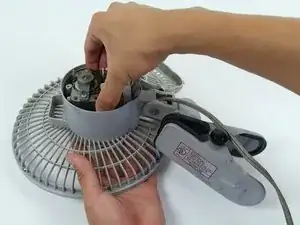

    • Remove the motor cage from the fan housing.

  4. ghFXbcWe4IwRyTUZ
    ghFXbcWe4IwRyTUZ
    tLEXWXIC5jVYB1fF

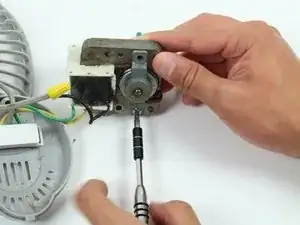

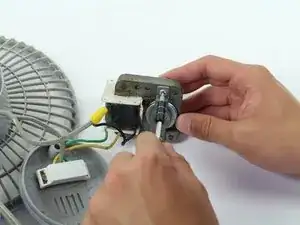

    • Unscrew the two adjacent motor cage screws to free the motor

  5. TRxGSbK1idqqFLS6
    TRxGSbK1idqqFLS6
    UIXkmYNbJku5ogOq
    EVBQQO34mQv1Dxsf

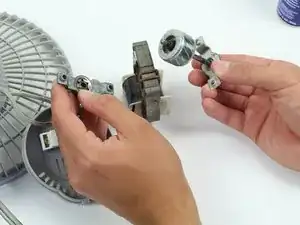

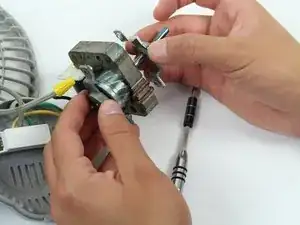

    • The motor is now free to be replaced.

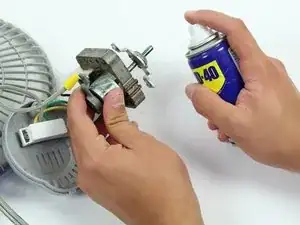

    • If the motor will not move out of its now freed state you can use WD-40 to loosen it

Abschluss

To reassemble your device, follow these instructions in reverse order.
