Comfort Zone CZ6C Power Cable Replacement

Geschrieben von: Nishanth Dara
  • Kommentare: 0
Comfort Zone CZ6C Power Cable Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

Learn how to properly replace the power cable of your Comfort Zone CZ6C.

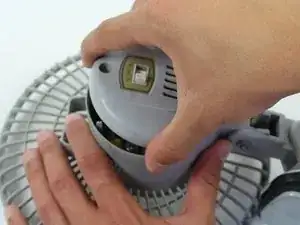

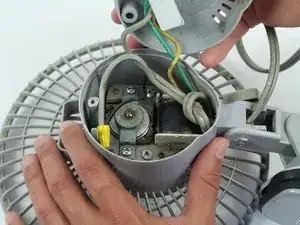

  1. ADaF5wG31NKowk2W
    ADaF5wG31NKowk2W
    6HSNeQZraaRe2EDr
    rKjPasCLDRQOa5Es

    • Make sure to unplug the Comfort Zone CZ6C before cutting any wires.

    • Before attempting to replace your power cable, learn how to solder using the How To Solder and Desolder Corrections Guide.

    • Start with the fan on its back. Unscrew the back panel to expose the internal wiring.

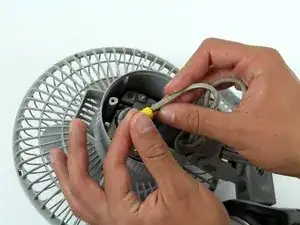

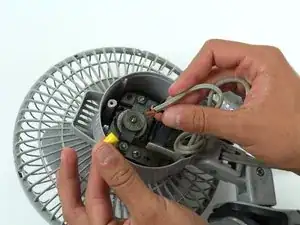

  2. qAqP6fZXW6yDJubv
    qAqP6fZXW6yDJubv
    mKuKFqYwRk6nDoFE
    HtYaYuDXXOMaBi51

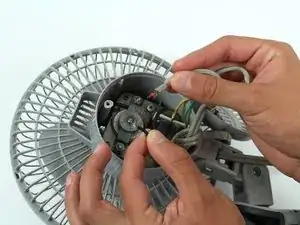

    • Unscrew the yellow cap that connects the black wire and the gray power cord wire. Then, unwind the tied wires and pull them apart.

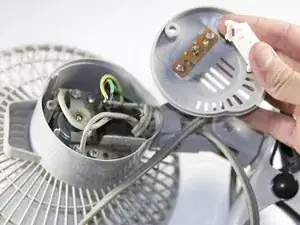

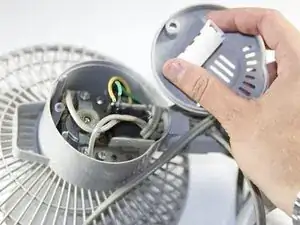

  3. dQ5TjLGa4GPYKfvw
    dQ5TjLGa4GPYKfvw
    sHxVLutuZqTSCtCi

    • Remove the plastic cover on the switch by pulling it apart from the back panel.

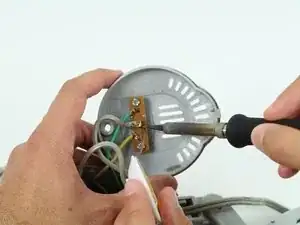

  4. isvtbWKXWlEv2S56

    • Use the soldering iron with caution. Don't touch the tip of the soldering iron to avoid the risk of injury.

    • This step can be made easier with the help of a partner to hold the wiring while you desolder the connection.

    • Disconnect the gray power wire from the switch by desoldering the connection.

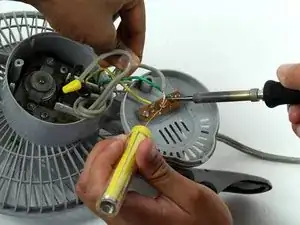

  5. 1NUW4fH2xgTURksN

    • Strip the end of the gray power cord.

    • Then solder the end of the gray power cord to the switch.

Abschluss

To reassemble your device, follow these instructions in reverse order.
