Einleitung

To complete this guide, you will need to disassemble your device and use a soldering iron to replace the battery.

Make sure to power off the device before you begin to take apart your device. Not doing so could potentially cause harm.

  1. xbvTvDp32a6vJqVW
    xbvTvDp32a6vJqVW
    ErbworcBRRAtcfHn

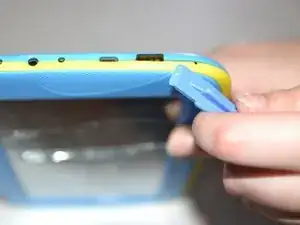

    • Use the plastic opening tool help push out the microSD card from the microSD slot.

  2. 3g1J4YBVEEhPlXiR
    • Use the plastic opening tool to unclip the plastic front from the plastic back. Use the MicroSD slot to initially start the unclipping.

  3. aINjm44e2XGejhu5
    aINjm44e2XGejhu5
    rg5wDR2fuyPseOxi

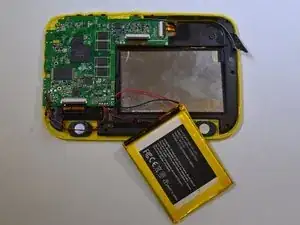

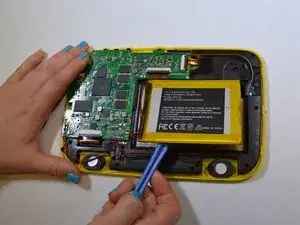

    • The battery is glued onto the black plastic. Use the plastic opening tool to pry the battery from the black plastic.

  4. aUgqNZqv331KWNTK
    aUgqNZqv331KWNTK
    sPKIuly3DXGQIMZL

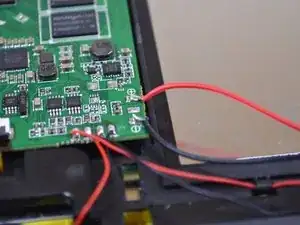

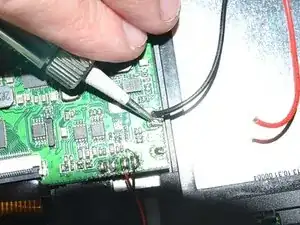

    • Unsolder the red and black wires that are connected to the battery from the logic board using a soldering iron.

    • Tips on how to solder can be found here.

Abschluss

To reassemble your device, follow these instructions in reverse order.
