Conair Infiniti Pro Model 259NP Cold Shot Button Replacement

Geschrieben von: Timothy Lo

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

20 - 30 Minuten

Einleitung

For a sticky Cold Shot button, you may only need to clean the button. This guide will show you how to fully remove and replace the button.

Note: This guide requires soldering skills. If you don't know how to solder or want to brush up on your skills check out this handy tutorial.

Caution: Unplug the hair dryer before attempting this guide. Leaving the device plugged in may result in electrocution and damage to the device.
Hold the hair dryer by the handle so that the back panel faces up.

Starting from where the cord attaches to the handle, pull apart the two plastic panels.
Continue separating the back panel, working along the seam.
With moderate force, completely remove the back panel from the hair dryer.

Caution: If you recently used the hair dryer, wait at least 10 minutes before attempting this step. The heating element may still be very hot and can cause serious burns.
Pull on the back of the fan motor to gently lift the motor out of the hair dryer.

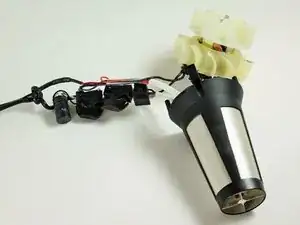

Lift the attached electrical wiring and heat shield completely out of the hair dryer.

Caution: Do not attempt to open or tamper with the capacitor. You may suffer severe electrical shocks.
Hold the electrical switches so that the wires are facing upwards.

Focus on the button closest along the wires to the fan motor.

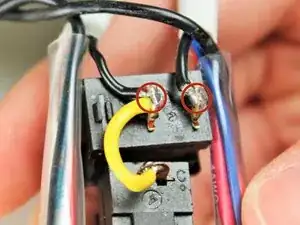

Desolder the button at the circled locations.
To reattach the new button, resolder at the same points. Be sure the wires connect to the correct locations.

Abschluss

To reassemble your device, follow these instructions in reverse order.
