Conair Infiniti Pro Model 259NP On/Off Button Replacement

Geschrieben von: Timothy Lo
  • Kommentare: 0
Conair Infiniti Pro Model 259NP On/Off Button Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

20 - 30 Minuten

Einleitung

For sticky on/off buttons, you may only need to clean the button. This guide will show you how to fully remove and replace the button.

Note: This guide requires soldering skills. If you don't know how to solder or want to brush up on your skills check out this handy tutorial.

  1. FxfpZBxiRvLwosUs

    • Caution: Unplug the hair dryer before attempting this guide. Leaving the device plugged in may result in electrocution and damage to the device.

    • Hold the hair dryer by the handle so that the back panel faces up.

  2. iiYalPNNIvRkI4iY
    iiYalPNNIvRkI4iY
    ImOAZMefOsIVRdpW

    • Remove the two 15.875 mm Phillips #2 screws from the back panel.

  3. CAR2JcQOQZDVgYoY
    CAR2JcQOQZDVgYoY
    vVb6TaApTJjKhYIt
    giEeBaHPqXdQMifY

    • Starting from where the cord attaches to the handle, pull apart the two plastic panels.

    • Continue separating the back panel, working along the seam.

    • With moderate force, completely remove the back panel from the hair dryer.

  4. mvrrmXFPwUvaQeCQ
    mvrrmXFPwUvaQeCQ
    AP6dEb5EWr5OeZbC

    • Hold the hair dryer by the nozzle so that the handle points to the left.

    • Remove the two 1-inch Phillips #2 screws from the back of the fan motor.

  5. eMV5dwtQB16HsGmP
    eMV5dwtQB16HsGmP
    vESHkKfd5GlT5fSY
    E2btK1XpIuSmJ1Nm

    • Caution: If you recently used the hair dryer, wait at least 10 minutes before attempting this step. The heating element may still be very hot and can cause serious burns.

    • Pull on the back of the fan motor to gently lift the motor out of the hair dryer.

    • Lift the attached electrical wiring and heat shield completely out of the hair dryer.

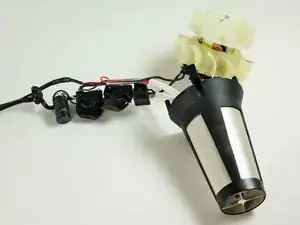

  6. IAjadR4SN4SyXutx

    • Caution: Do not attempt to open or tamper with the capacitor. You may suffer severe electrical shocks.

    • Hold the electrical switches so that the wires are facing upwards.

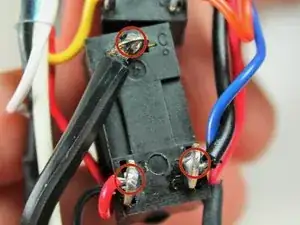

  7. pkLu5JjGP1IlMcEE

    • Focus on the button directly next to the cylindrical capacitor.

    • Desolder the button at the circled locations.

    • New line.

Abschluss

To reassemble your device, follow these instructions in reverse order.
