Creative Nomad Jukebox Zen Auxiliary Jack Input placement

Geschrieben von: Bradley McHugh
  • Kommentare: 0
Creative Nomad Jukebox Zen Auxiliary Jack Input placement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 - 35 Minuten

Einleitung

Hello! This guide will show you the steps to replace the auxiliary jack in your Creative Nomad Jukebox Zen Device and have you listening to your music again in no time! Please use caution when using the soldering tool.

  1. GWbEXjrZ4bUyPtEn
    GWbEXjrZ4bUyPtEn
    EEEaxqFijLfjBkJA
    PnwiJiAEo3GV4khL

    • Use a J0 screwdriver to remove the eight 3.5mm screws.

  2. HYAVSTitkAAkD2bm
    HYAVSTitkAAkD2bm
    2NKwAtobnDNfT2Kj
    KVH5yDUSilMqOfWd

    • Use the plastic opening tool to open the top cover by carefully prying at each corner.

  3. SlKTTFQeQRLH4bQf

    • Once the front face is removed, remove the three 6.8mm J0 screws from the metal cover and remove it.

  4. CviQYZmoMEfLwQug

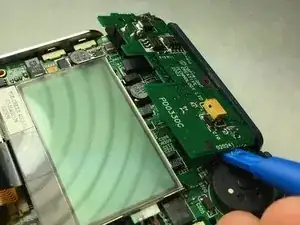

  5. EXwNbRhnK1uy1VbW

    • Using the plastic opening tool, gently pry up the other side of the auxiliary jack motherboard.

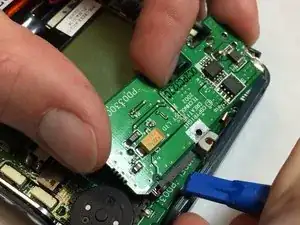

  6. DmdATDth6jXSvpAx

    • Using the plastic pulling tool, pull the plastic housing of the device out of the way in order to wiggle the the auxiliary jack motherboard free.

Abschluss

To reassemble your device, follow these instructions in reverse order.
