Creative Nomad Jukebox Zen Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

Hello! If your battery is not holding charge this guide will show you the steps to replace the old battery in your Creative Nomad Jukebox Zen Device. Follow the steps in this guide and you will be listening to hours of your music again in no time! Please use caution when using the soldering tool.

  1. cSiOeUCeISSCg4Ms
    cSiOeUCeISSCg4Ms
    p1S5lfuEAaZ4dGOp
    njWQKeUwm6lQQYGX

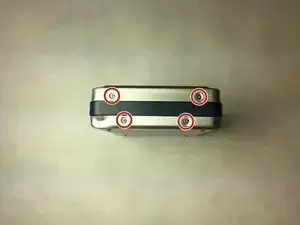

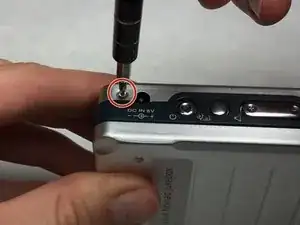

    • Use a J0 screwdriver to remove the eight 3.5mm screws.

  2. QuTPiqPruUSO1Pvp
    QuTPiqPruUSO1Pvp
    FT4Hsx65fyRmIi1l

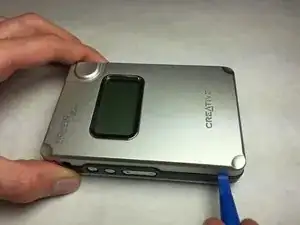

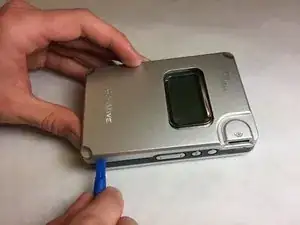

    • Use plastic opening tool to open top cover by carefully prying at each corner.

  3. KxfdkhROkqwJtHHJ

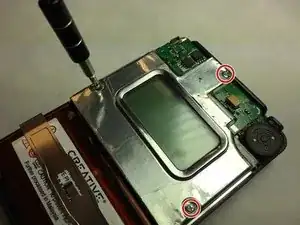

    • Once the front face is removed, remove the three 6.8mm J0 screws from the metal cover.

  4. vIPom5O6kRZya5Oc

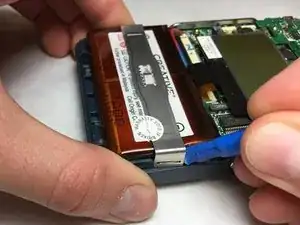

    • Use the plastic opening tool to unclip the metal bracket holding the battery down.

    • When sticker is torn warranty is void.

  5. EPVvBJX2d4cmGWCR
    EPVvBJX2d4cmGWCR
    AwNOdop2bmmJqK1j

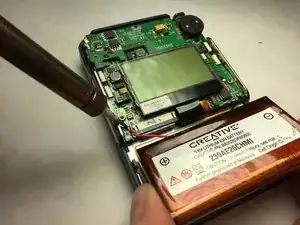

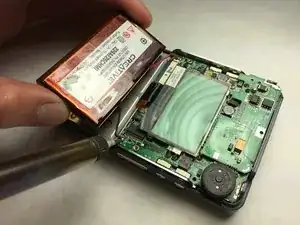

    • Desolder both red and black wires coming from battery.

    • Wie man Lötverbindungen herstellt und entlötet Use soldering gun with care as it becomes extremely hot and can cause burns.

    • Make sure to solder the black and red wires back into the same locations.

Abschluss

To reassemble your device, follow these instructions in reverse order.
