CrystalView NB4-35788 Auxiliary Speakers Replacement

Geschrieben von: Alex Stokes
  • Kommentare: 0
CrystalView NB4-35788 Auxiliary Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

45 Minuten

Einleitung

Replace the speakers to improve the sound quality of your device.

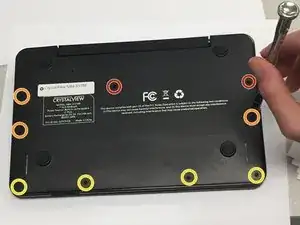

  1. fkvqpAEUdOOkSHMw

    • Power off the device before beginning disassembly.

    • Using a Phillips #00 Screwdriver, take out the following screws:

    • Two 6 mm screws

    • Three 4 mm screws

    • Four 3 mm screws

    • These screws can be taken out in any order.

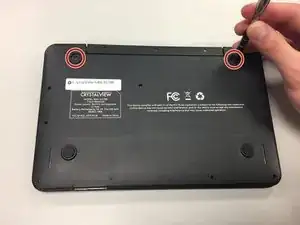

  2. mdRQCFaxY65griUj

    • Using a Phillips #00 Screwdriver, remove the screws located under the top two standoffs.

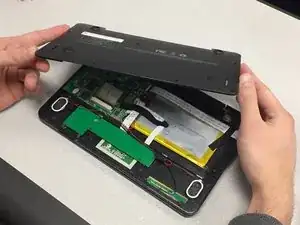

  3. EXf26eABDDKEBGuP

    • Remove the cover off the back of the device.

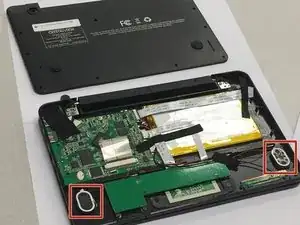

  4. SrSTvCN6MkWgZQsC

    • Two speakers can be found on the device, one in the lower-right corner and one in the lower left-corner.

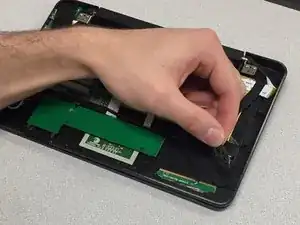

  5. HlSVQuMsM3sH34nD

    • Gently pull up on the speaker to remove it. Repeat this for the other speaker.

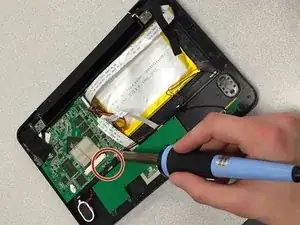

  6. 3BkcPLnyqlqXKDHU
    3BkcPLnyqlqXKDHU
    IlDjVSyrKtwMNZRo

    • De-solder the red and black wires to disconnect the old speaker.

    • Be careful while using a soldering iron as it is extremely hot.

    • Follow the How To Solder and Desolder Connections guide for help.

Abschluss

To reassemble your device, follow these instructions in reverse order.
