CrystalView NB4-35788 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

45 Minuten

Einleitung

Replace your dying battery to restore the power of your CrystalView Netbook.

  1. reUP6IlQrASoxYAH

    • Power off the device before beginning disassembly.

    • Using a Phillips #00 Screwdriver, take out the following screws:

    • Two 6 mm screws

    • Three 4 mm screws

    • Four 3 mm screws

    • These screws can be taken out in any order.

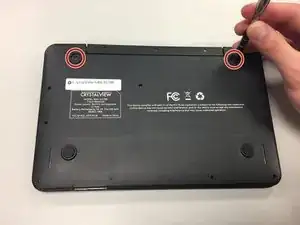

  2. Vbfw2AYDsBsZesFU

    • Using a Phillips #00 Screwdriver, remove the screws located under the top two standoffs.

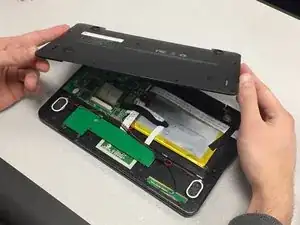

  3. GnKgcL1dArLovJrd

    • Remove the cover off the back of the device.

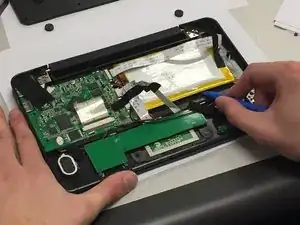

  4. yIZonsIjEIutedUt

    • Remove the battery using a plastic spudger.

    • Do not use a metal spudger, as this can damage the device.

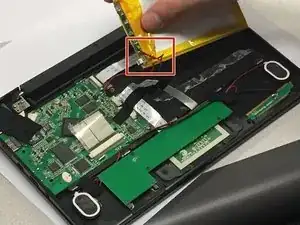

  5. fGOyCDvVbttTYIEf
    fGOyCDvVbttTYIEf

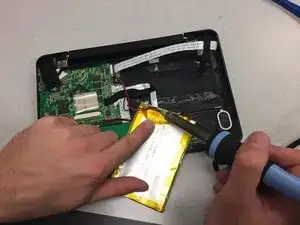

    esMsMbrDbSerWVxt

    • Peel back the yellow film on the old battery to expose the red and black wires

    • De-solder these wires to disconnect the old battery

    • Be careful while using a soldering iron as it is extremely hot.

    • Follow the How To Solder and Desolder Connections guide for help.

Abschluss

To reassemble your device, follow these instructions in reverse order.
