DJI Mini 2 Gimbal Camera Replacement

Geschrieben von: Parker Sowersby
  • Kommentare: 8
DJI Mini 2 Gimbal Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

1 - 2 Stunden

Einleitung

This guide will show you how to successfully replace the gimbal assembly inside the DJI Mini 2 drone. If you need more detailed information on disassembling the gimbal camera to replace the camera cable or replace the gimbal housing, watch the video guide.

The Gimbal Camera is the camera that allows the drone to capture video and photos. It also can rotate in place to allow for multiple angles for the photos the drone can take. If the Gimbal Camera is broken or damaged this will prevent the drone from successfully capturing photos and videos.

This guide requires the use of ESD-safe tools.

If you have replaced the gimbal assembly, you will need to calibrate your DJI Mini 2 drone, but for gimbal calibration, you will need to use additional software.

How to calibrate the gimbal camera watch this video tutorial https://youtu.be/mu03HWXplM4

  1. OlIZwIPY2ye5fSbS
    OlIZwIPY2ye5fSbS
    lDMamJNH2CmcXDqd

    • Face the DJI Mini 2 away from you so that you are looking at the charging ports.

    • Use your finger to open up the back panel.

  2. 1pNtTomXrvTtSALB
    1pNtTomXrvTtSALB
    lUbPH2u6OpgHJxds

    • Pinch the locking mechanism on the battery to release the lock.

    • Pull the battery straight out of the compartment.

    Honestly, did we need an ifixit tutorial on THIS?!

    Next up, how to insert the battery.

    Big Ed -

  3. laTuKhxgCusJG2wU
    laTuKhxgCusJG2wU
    5HbKW32WPNt5si2f

    • Unfold the wings of the drone.

    • Place the drone upside down on a flat surface.

    • There should be stickers on the device telling you how to unfold the propeller arms.

  4. rB21Rh3WTVLj3PxQ
    rB21Rh3WTVLj3PxQ
    G65ZWTW2PZ1LI2Lv

    • Remove the four 5 mm J000 screws near each propeller arm.

  5. CybVSYG4SPRyCwIl
    CybVSYG4SPRyCwIl
    UTtqSwhMVhpJQIaX
    FPvj3rVnP3vAUO43

    • Flip the drone back over.

    • Use a combination of the opening tool and your fingers to pry open the top panel of the drone along the seams.

  6. QdVwABwqRZlRYukA
    QdVwABwqRZlRYukA
    3kYwQp1nwsZyWtTj

    • Remove the two 5 mm J000 screws located in the battery hatch and near the ports on the back of the drone.

  7. 2eKTlxYayAZFgAV5
    2eKTlxYayAZFgAV5
    tCOgssTTRY1KNedw

    • Flip the drone over again.

    • Pry off the bottom panel of the drone using the opening tools and your fingers.

  8. tJQU2dyab2tBBxZn
    tJQU2dyab2tBBxZn
    uIxBycmT1qBWrJiR
    MQHQYCbpINsb1eQ4

    • Remove the three 3mm J000 screws on the black plate.

  9. PBdqFk6RggEtAFFS
    PBdqFk6RggEtAFFS
    In2iQdmQHZnHwPJB

    • Use your fingers to pull the black plate off to reveal main board.

  10. fOvlulcs21YJjpL6
    fOvlulcs21YJjpL6
    ABmA22iKqNP5Udxo
    D5IijMGQxLJHhPBX

    • Try to avoid disturbing the blue thermal paste covering two of the large board components. If the paste is disturbed or splotchy in places it may need to be removed and reapplied. For more information refer to the How to Apply Thermal Paste guide.

    • Using ESD Safe Tweezers Blunt Nose, remove the 5 cables attached to the main board.

  11. 1bThXX52cUqZJYXY
    1bThXX52cUqZJYXY
    YPKCTjKPCLPdvc5I

    • Use the ESD Safe Tweezers Blunt Nose and your fingers to pull off the main board from the drone carriage.

    note: the connectors are stuck with a hotglue sometimes, so be careful. i suggest heating gently before attempting to break the glue.

    jcollins1905 -

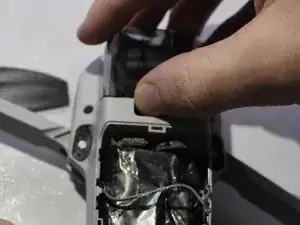

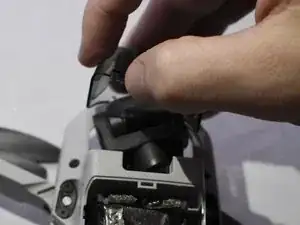

  12. bQDHgBNVqeb4UiER
    bQDHgBNVqeb4UiER
    vWiZEXLSBexfgxje

    • Use your hands to remove the camera cover.

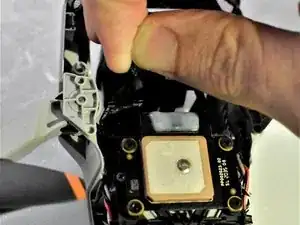

  13. lk5nJBSEnSuDUiIL

    • Pull the cable that was once attached to the mainboard and attaches to the camera through the main body.

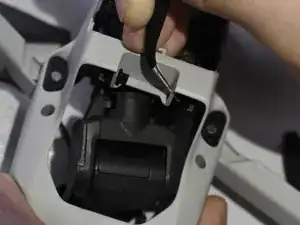

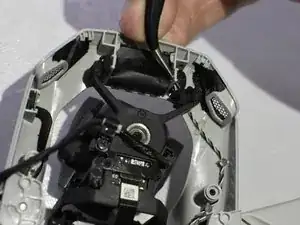

  14. L5I3XhYd5bTqNyhw
    L5I3XhYd5bTqNyhw
    VQMYYUn2muZFCThn

    • Use the tweezers to pull the four rubber camera holsters off of the body.

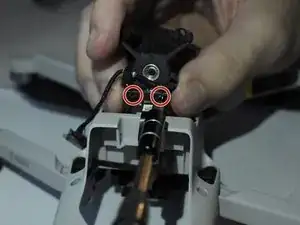

  15. xHZOejjYti1YgpFi

    • Using the J000 screwdriver, remove the two remaining 3 mm screws connecting the camera to the body.

    • Remove the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Parker Sowersby

Mitglied seit: 28/03/22

280 Reputation

6 Kommentare

this guide is missing so many steps its ridiculous

Ben Coleman -

Hi Ben, thank you for the constructive criticism, but this is what happens when you make “creating a guide” a class requirement for a grade rather then hire professionals. I personally had no idea what I was doing writing this and just wanted to get my grade. So unfortunately, this guide will not be updated.

Parker Sowersby -

Check out the video guide

Arty -

Thank you very much for your tutorial. I successfully managed to replace my broken camera assembly. Maybe you should mention how to insert gimbal back (not as easy as it seems). With the official part, you have to use pliers to pull the little rubber parts. And even with an official part, you will always have a warning message about calibration. We can’t do anything for this except sending the drone to dji. Even if the calibration is fine and the drone perfectly working, there is this anti self repair « protection »… Only a certified DJI technician/shop can remove the error.

Gauthier Heiss -

Thanks for the warning about anti self-repair! Was debating replacing it myself to save using up a strike for more serious damage. I didn't see anything about that voiding the warranty though...

Dawson Ross -

Where do you get the parts?

Dillon Hughes -
