DJI Phantom ESC Replacement

Geschrieben von: David Hoyt

Kommentare: 3

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

30 - 45 Minuten

Einleitung

Use this guide to replace an Electronic Speed Controller (ESC) in your DJI Phantom Drone. The ESC receives power from the central board, and a PWM control signal from the flight controller. There is one ESC for each motor, for a total of four. Removing the ESC requires soldering.

Werkzeuge

Schritt 1

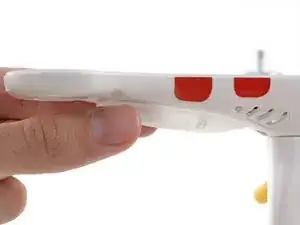

Press down on battery door release tab to flip the battery door open.

Schritt 2

Pull out the battery pack.
Avoid pulling on the battery wires, excess stress may break the wires, damage the power connectors, or crack the internal solder joints.

Schritt 3

Pull the two halves of the XT60 power connector apart.
It's a tight fit, so be careful not to hit your drone or yank on the cables when it releases!

Schritt 4

Silver-topped propeller collets unscrew counter-clockwise
Black-topped propeller collets unscrew clockwise

Schritt 5

For propellors with silver collets: Use a 12 mm wrench or socket to loosen silver collets in the counter-clockwise direction.
Once free, unscrew and remove the collet.

Schritt 6

For propellors with black collets: Use a 12 mm wrench or socket to loosen black collets in the clockwise direction.
Once free, unscrew and remove the collet.

Schritt 7

Gently press down the motor shaft and lift the propeller up to remove it.

Schritt 8

After removing all four propellors, flip the drone over.
Remove the following screws from the underside of the drone:
Twelve 2.0 mm hex screws
Four Phillips #0 screws

Schritt 9

Loosen the cable from the plastic landing gear.
Unplug the magnetometer molex connector.

Schritt 10

Lift up on the top portion of the shell and set it on its side.
Do not attempt to fully remove the case. The GPS and Magnetometer cables connect the top shell to the rest of the Phantom, be careful not to stress or break these cables.

Schritt 11

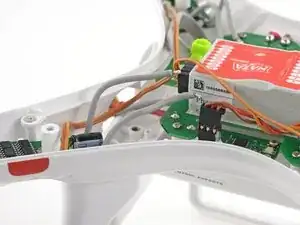

Lift the GPS cable molex connector up out of its socket on the main board.

On the Phantom FCP40 (essentially a Phantom 1), the GPS cable connects directly to the Naza controller box, not to the board as shown here. Also the compass (magnetometer) is connected to the main board, not the GPS unit in the top shell, so you don't need to remove it to remove the top shell.

Marcus Bointon - 26/02/15

Schritt 12

Gently pull the slack of the magnetometer cable through the case bottom shell.
The case top shell should now have enough slack to work on the interior of the Phantom.

Schritt 13

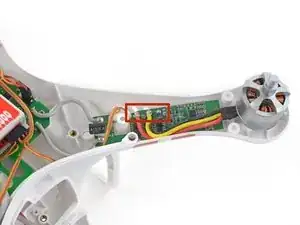

Desolder all three motors wires from the speed controller board.
Follow our soldering guide to learn how, or just to brush-up on your skills.
Be careful not to melt the plastic case bottom shell with your soldering iron or damage any electronic components.
When you're reassembling, solder the motor leads back in their original order. This may be different from the picture. Motors on arms across from each other have the same color order, so check the opposite arm for reference.

Schritt 14

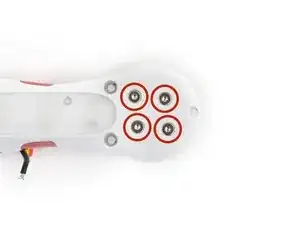

Unscrew the four 2 mm motor hex bolts from the case bottom shell.

Schritt 15

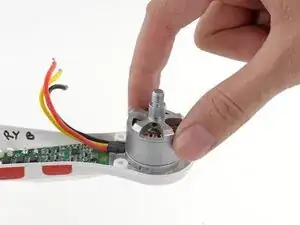

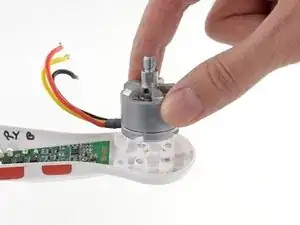

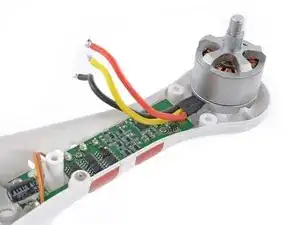

Remove the motor from the Phantom.

Schritt 16

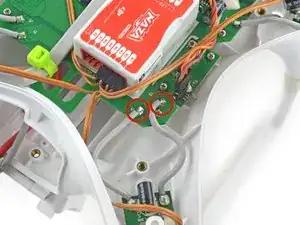

Disconnect the ESC from the mainboard by desoldering the ground and voltage wires.
Be careful not to melt the plastic case bottom shell with your soldering iron or damage any electronic components.

Schritt 17

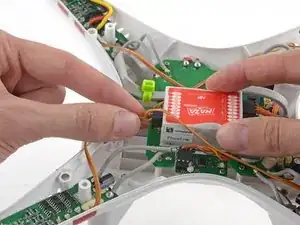

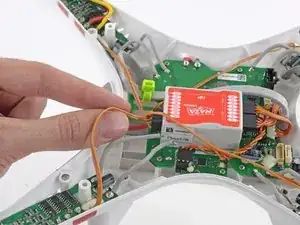

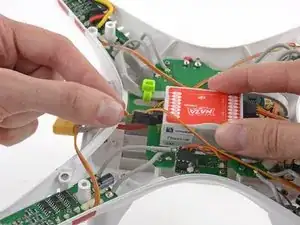

Unplug the ESC signal cable from the flight controller.
You may need to remove other ESC signal cables next to your desired ESC's cable. Be sure to note which socket these cables go back into.

Schritt 18

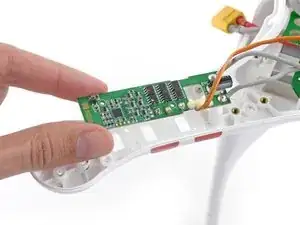

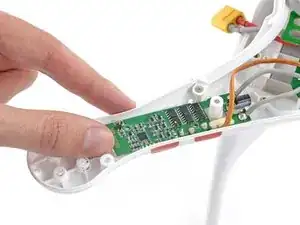

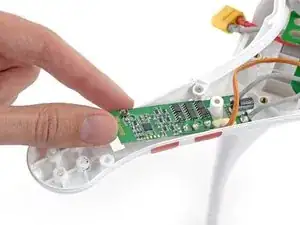

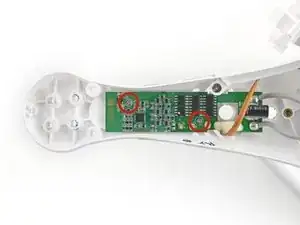

Remove the two Phillips #0 screws securing the ESC.

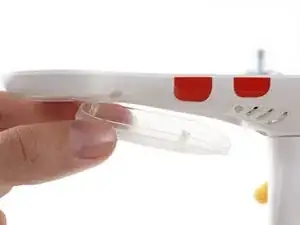

The clear plastic LED light cover may fall off after removing these screws. If it doesn't, remove it so you don't lose it.
