DeWalt DC970 Motor Replacement

Geschrieben von: Jonathan Hamel
  • Kommentare: 3
DeWalt DC970 Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

If the motor of your drill is not operating properly or not operating at all, this guide will show you how to replace the motor of your drill.

  1. iFAWbJDnhLhVdAlL

    • Compress the buttons on either side of the battery and lift the drill away from battery.

  2. rtlRZBdsGVSNifqH

    • Remove battery from drill.

  3. FshZipNC1Ae5umqy
    FshZipNC1Ae5umqy
    YYjY4mpiI4TYpser

    • Remove the eight 16 mm, Torx Security #15 screws.

  4. RGX65BULtpBxULxV

    • Lay the drill on its side and gently lift the top half off it.

  5. krkXek4sGfXBkPrJ

    • Lift drill mechanism out of the shell.

    • Desolder the red and black wires from the motor.

    • Learn more about soldering here.

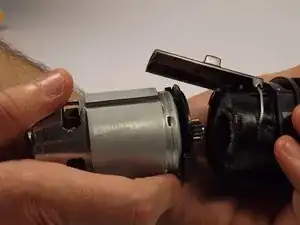

  6. 1vHKV5WTXJrjJjaQ

    • Slightly twist and pull motor away from the clutch.

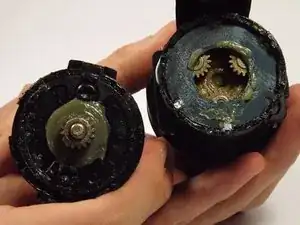

  7. WVRDaNtb4aLfCOPJ

    • When installing the replacement motor into the clutch make sure you correctly align the gears in order to assure that the motor is properly fitted to the clutch.

Abschluss

To reassemble your device, follow these instructions in reverse order.
