Use this guide to replace the battery in your Dell G15-5510 Gaming Laptop.
For your safety, discharge the battery below 25% before disassembling your device. This reduces the risk of fire if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.
-
-
Use a Phillips #1 screwdriver to remove the four screws securing the back cover.
-
Two 8 mm screws
-
Two 5.8 mm screws
-
Loosen the four captive screws.
-
-
-

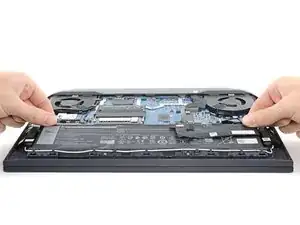

Insert an opening pick between the bottom-left corner of the back cover and the chassis.
-
Pry upward to release clips holding the cover in place.
-
-
-

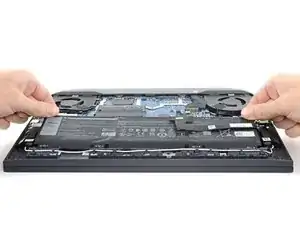

Insert your opening pick again between the bottom-right corner of the back cover and the chassis.
-
Pry up to release the remaining clips securing the back cover.
-
-
-

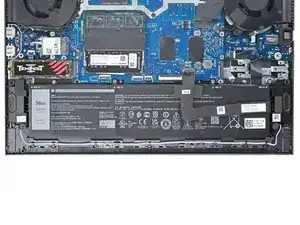

Use the flat end of a spudger to push the battery connector's square tab away from the socket and disconnect it.
-
-
-

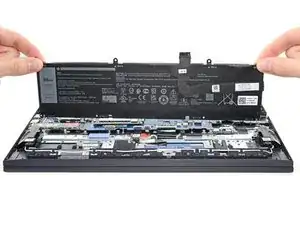

Pull the battery towards the top of the laptop to separate it from its plastic shell.
-
Remove the battery.
-
To reassemble your device, follow these instructions in reverse order.
For optimal performance, calibrate your newly installed battery after completing this guide.
Take your e-waste to an R2 or e-Stewards certified recycler.
