Dell Inspiron 15 5584 Display Cable Replacement

Geschrieben von: Sam Vorn
  • Kommentare: 0
Dell Inspiron 15 5584 Display Cable Replacement

Schwierigkeitsgrad

Moderate

Schritte

25

Zeitaufwand

20 - 30 Minuten

Einleitung

Use this guide to replace the display cable in your Dell Inspiron 15 5584 laptop.

The LCD display cable is a piece of hardware that connects the screen to the motherboard of the device. A broken display cable can cause poor connection between the screen and the motherboard, resulting in distortion, blank areas, or unexpected bands of discoloration.

Because replacement of the LCD cable requires extensive disassembly, confirm that the issue is with the cable before proceeding. If so, ensure the battery is drained and the laptop is shut off and proceed.

  1. oPOnIKUeypnxsimi

    • Make sure to turn off and unplug your laptop before starting.

    • Turn over the laptop so that the bottom is facing upwards, and the Inspiron logo is upside-down.

  2. g61NnV56Xi3Ilmeu
    g61NnV56Xi3Ilmeu
    kVDPCFqDOPefTDvL
    QCi5dDrAmYTXtnnH

    • Remove the seven 7 mm screws from the bottom using a Phillips #0 screwdriver.

    • Loosen the two captive back corner screws using a Phillips #0 screwdriver.

    • The two corner screws are not removable. A clicking sounds indicates that the screw is fully loosened.

  3. bupImkwfq6wXFZW5
    bupImkwfq6wXFZW5
    MZ4bG4Xqm65cDuKN

    • Slide an iFixit opening tool underneath the right side USB port and the keyboard.

    • Gently trace the iFixit opening tool along the entire outer rim of the laptop, carefully applying an upwards pressure.

    • Be careful not to force open the plate or push too much off without loosening the other sides. This can cause the bottom cover to crack.

  4. BDbtQKm1PpcFMjwT
    BDbtQKm1PpcFMjwT
    LdW2RPYV6dTtETSM

    • Gently pry off the bottom cover from the laptop.

    • Use the iFixit opening tool to loosen any spots you may have missed from Step 3.

  5. URmUC6rTbkIqvkHm
    URmUC6rTbkIqvkHm
    GrBnScvewWLojZEn

    • Remove the four 3.5 mm screws holding the battery down with a JIS #0 screwdriver.

  6. pp2BxyGd14HSJHrI
    pp2BxyGd14HSJHrI
    mJ5nSuiXR66MiSoW
    kiUKI1SQEeIbxKBV

    • Detach the motherboard connector tab from the top left of the battery.

    • Remove the battery from the device.

    • Be sure to carefully wiggle the connector out from the battery socket. Ripping it out too forcefully could damage the socket.

  7. Bgpn5FQw2OYuxc2h
    Bgpn5FQw2OYuxc2h
    yOmqYlTWotW3kaSg
    1ZG1iMgogpekAENI

    • Loosen the four captive 3.5 mm screws securing the heat sink to the motherboard using a Phillips #0 screwdriver.

    • Remove the CPU plate cover from the motherboard and safely place it off to the side.

  8. LBJoALAgcmovFSan
    LBJoALAgcmovFSan
    PPYc1nDLMQPBAYTF
    Lj6dMWgPMPEVLBYH

    • Remove the two 3.5 mm screws from the fan with a JIS #0 screwdriver.

    • Detach the fan connector from the motherboard using a pair of tweezers.

  9. LTTCdpB5LTLeveKP
    LTTCdpB5LTLeveKP
    MbemBIGxBROwujLm

    • Gently lift the fan from the device and de-thread the LCD display cable.

    • Remove the fan from the device.

  10. TU3hFspijrugYAFw
    TU3hFspijrugYAFw
    XEC6gNBuIcbTNrEF

    • Remove the four 6 mm screws holding down the screen hinge in the upper right corner using a JIS #0 screwdriver.

  11. SAWIbvW1eeX2QnHT
    SAWIbvW1eeX2QnHT
    uNMDpWWCN4rUwRLS

    • Grasp the screen hinge and lift it up.

  12. pcJG2sMcKPiaIcpZ
    pcJG2sMcKPiaIcpZ
    HvK3kbjaSFwHlAlj
    By6kFqSZVhKHOX5u

    • Lift up the sticker covering the DC jack connector using tweezers.

    • Using tweezers, detach the motherboard connector and lift the jack out of place.

    • Remove the DC jack from the laptop.

  13. 1mqFUgLvBLev1DQ5
    1mqFUgLvBLev1DQ5
    yN5fSJFqQmgGYwBZ
    jG4Cxbh4eXeQQVio

    • Remove the single 3 mm screw that holds down the Wi-Fi card using a Phillips #0 screwdriver.

    • Remove the Wi-Fi card from the motherboard.

  14. fLYqAX3fNIfHilu3
    fLYqAX3fNIfHilu3
    otMEDUnKH1s2usPE

    • Remove the four 6 mm screws from the hinge in the upper left corner with a JIS #0 screwdriver.

  15. dlHBTZqBaXiqMwUt
    dlHBTZqBaXiqMwUt
    Iutfhhds4d4XQTo1

    • Grab the hinge and push upwards.

  16. PONySZusni4i4UCU
    PONySZusni4i4UCU
    14ja12anAKkfi1IT
    LSbgGrH3ASaXoLZI

    • Use tweezers to peel off the sticky label covering the display cable port.

    • Use tweezers to unlatch the cable.

    • Grasp the display cable firmly and remove it.

  17. O45eyiTNqcQrCm35
    O45eyiTNqcQrCm35
    FgAHNhiPiJ4gRh6l

    • Lift the underside of the device and slightly open the laptop.

    • Pull the bottom half of the device off of the hinges.

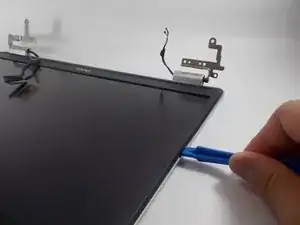

  18. PATcgKfJSBUDPsf6
    PATcgKfJSBUDPsf6
    h24ELXXKYSvlGOgW

    • Use an opening tool to pry along the edges of the screen from the top plate.

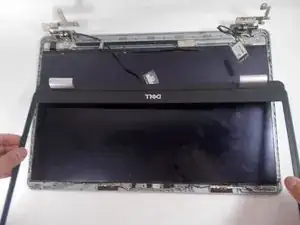

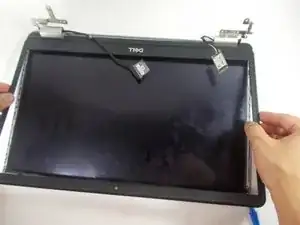

  19. NJdekGkJna4JnjhU
    NJdekGkJna4JnjhU
    IgPeNkECBKiZRwHU

    • Lift and pull the frame from the display.

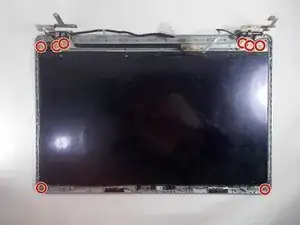

  20. 4WkL2PNDjE5KM2md
    4WkL2PNDjE5KM2md
    HJbsqtJDJUuYVlOp
    puJy1K1olBBWZOAG

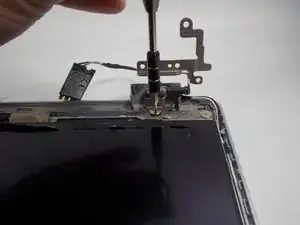

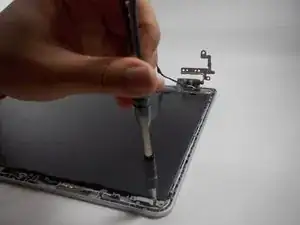

    • Remove the eight 3 mm screws from the screen using a JIS #0 screwdriver.

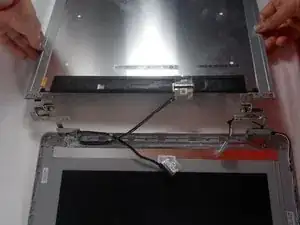

  21. OSmW12gBAESuYlaT
    OSmW12gBAESuYlaT
    ZPXHB4LnKHBIq1ih
    QftNiUdcpoQFKBpJ

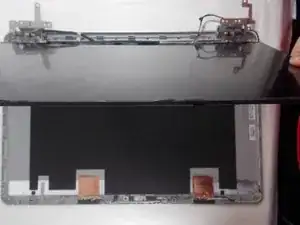

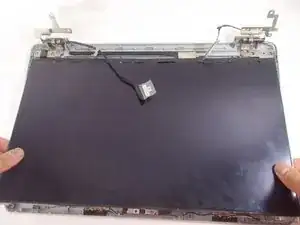

    • Lift the screen and slide it outwards.

    • Flip over the screen so the back of it is facing upwards.

  22. rgExfWSOarWOOqSC
    rgExfWSOarWOOqSC
    HbBu1CqRGAdtOS6f
    5U3ih5aaD5ZSHCUi

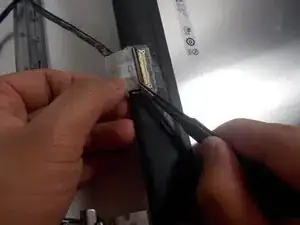

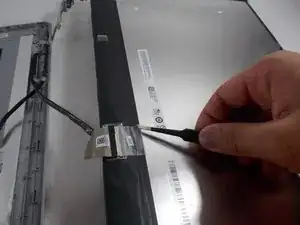

    • Use a pair of tweezers to detach the cable connector from the screen.

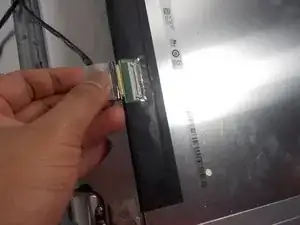

  23. HNrLYMip25OFVDGC

    • Grasp the display cable firmly and remove it.

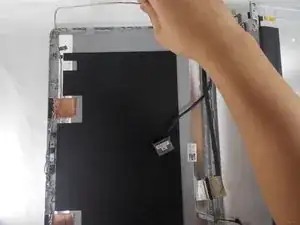

  24. 2TfscZEECCTqWgHh
    2TfscZEECCTqWgHh
    krsuRbkGPxFkvIAZ
    bFoIpQrNMcWUELsM

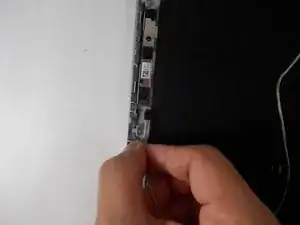

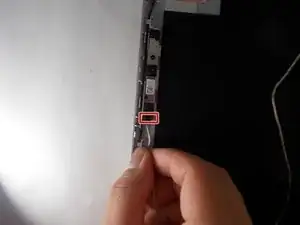

    • De-thread the wire from the top plate frame.

    • Grasp the connector with tweezers.

    • Pull the connector out from the socket.

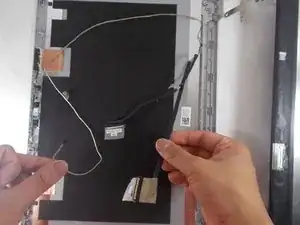

  25. JbZgyTNVHIWSLsCK

    • Remove the display cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
