Use this guide to replace the hard drive in your Dell Inspiron 15 5584.
The hard drive is a component that gathers and contains data within your device. A faulty drive can slow operation and cause application crashes as well as the loss of files.
If you are sure the issue is your hard drive, make sure to save your files to an external storage device before any tampering in order to save data that could be lost otherwise. Be sure to drain the battery and shut down the device as removing the battery is necessary to remove the hard drive. A live battery serves as a fire hazard and can cause personal injury or component damage.
Werkzeuge
Ersatzteile
-
-
Turn over the laptop so that the bottom is facing upwards, and the Inspiron logo is upside-down.
-
-
-
Remove the seven 7 mm screws from the bottom using a Phillips #0 screwdriver.
-
Loosen the two captive back corner screws using a Phillips #0 screwdriver.
-
-
-
Slide an iFixit opening tool underneath the right side USB port and the keyboard.
-
Gently trace the iFixit opening tool along the entire outer rim of the laptop, carefully applying an upwards pressure.
-
-
-
Gently pry off the bottom cover from the laptop.
-
Use the iFixit opening tool to loosen any spots you may have missed from Step 3.
-
-
-
Detach the motherboard connector tab from the top left of the battery.
-
Remove the battery from the device.
-
-
-

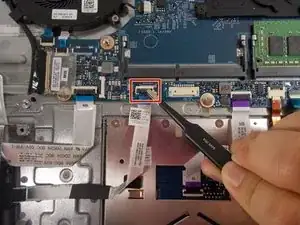

Lift up the motherboard ribbon latch using a pair of tweezers.
-

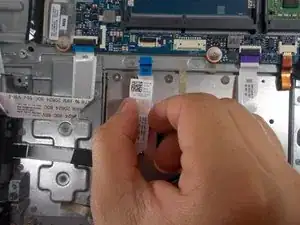

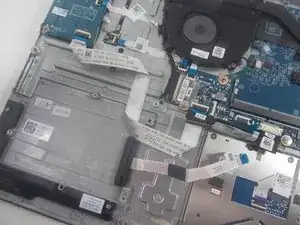

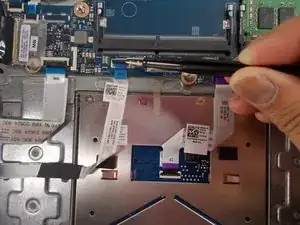

Gently lift the ribbon cable from the motherboard connector socket.
-
-
-

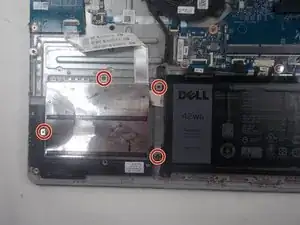

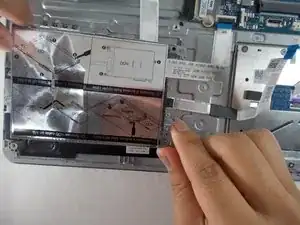

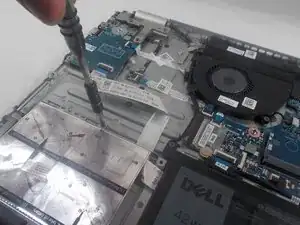

Remove the hard drive cover plate from the device.
-

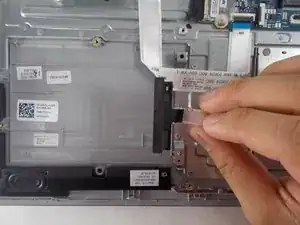

Unplug the connector cable from the hard drive.
-
Remove the hard drive from the device and place it safely to the side.
-
To reassemble your device, follow these instructions in reverse order.
