Use this guide to replace the SSD within your Dell Inspiron 15 5584 laptop.
The SSD, like the hard drive, is a piece of hardware that contains data within the device. A faulty SSD may cause slower operation or process crashing as well as errors.
Before operating on the SSD, ensure that the issue is not related to another component or software. If you are sure the issue is your SSD, make sure to save your files to an external storage device before any tampering in order to save data that could be lost otherwise. Be sure to drain the battery and shut down the device as removing the battery is necessary to remove the hard drive. A live battery serves as a fire hazard and can cause personal injury or component damage.
Ersatzteile
-
-
Turn over the laptop so that the bottom is facing upwards, and the Inspiron logo is upside-down.
-
-
-
Remove the seven 7 mm screws from the bottom using a Phillips #0 screwdriver.
-
Loosen the two captive back corner screws using a Phillips #0 screwdriver.
-
-
-
Slide an iFixit opening tool underneath the right side USB port and the keyboard.
-
Gently trace the iFixit opening tool along the entire outer rim of the laptop, carefully applying an upwards pressure.
-
-
-
Gently pry off the bottom cover from the laptop.
-
Use the iFixit opening tool to loosen any spots you may have missed from Step 3.
-
-
-
Detach the motherboard connector tab from the top left of the battery.
-
Remove the battery from the device.
-
-
-

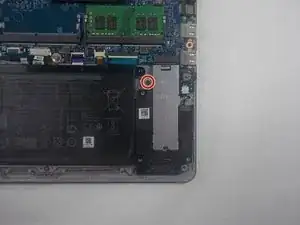

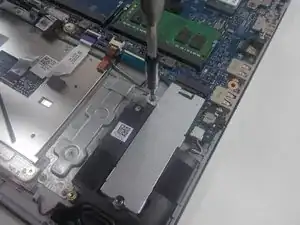

Remove the single 3 mm screw from the SSD cover with a JIS #0 screwdriver.
-

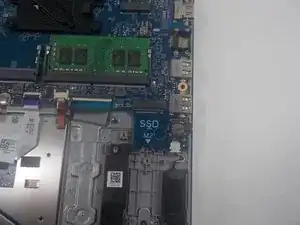

Carefully lift off the SSD cover and put to the side.
-
-
-

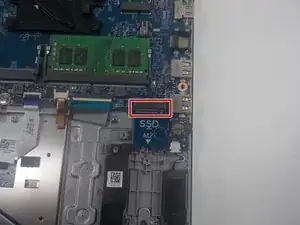

Disconnect the SSD cable from the motherboard port.
-

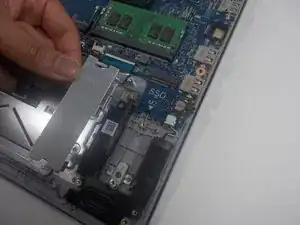

Remove the SSD and place it off to the side.
-
To reassemble your device, follow these instructions in reverse order.
