Use this guide to replace the battery in your Dell Inspiron 3501 Laptop.
For your safety, discharge the battery below 25% before disassembling your device. This reduces the risk of fire if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.
-
-

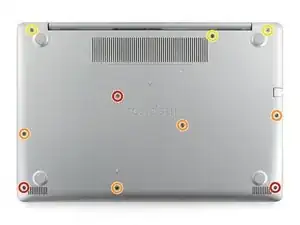

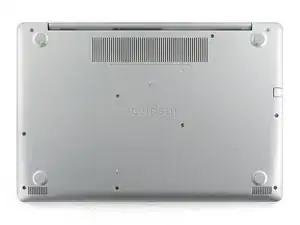

Use your Phillips screwdriver to remove the seven screws securing the back cover:
-
Three 5 mm-long screws
-
Four 7.5 mm-long screws
-
Loosen the three captive screws.
-
-
-
Flip the laptop upright and open the lid so that the keyboard is exposed.
-

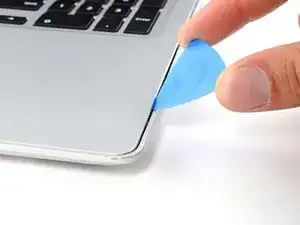

Insert an opening pick between the front right corner of the back cover and the chassis.
-
Pry upward to release the retaining clips holding the cover.
-

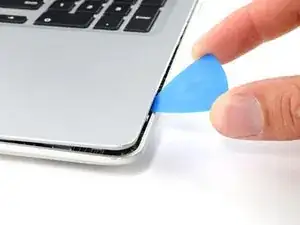

Repeat this procedure for the opposite corner.
-
-
-

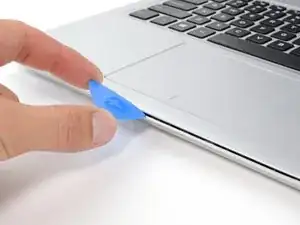

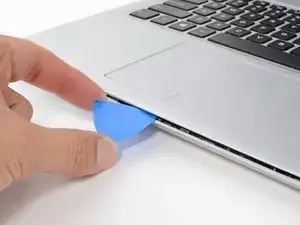

Insert an opening pick between the front edge of the back cover and the chassis, near the trackpad.
-
Pry upward to release the clips along the front edge of the laptop.
-
-
-
Close the screen to the laptop and flip it over.
-

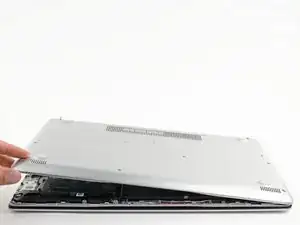

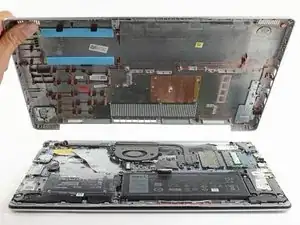

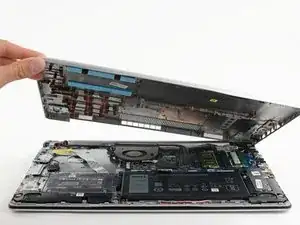

Pull the left side of the back cover away from the frame and remove it.
-
-
-

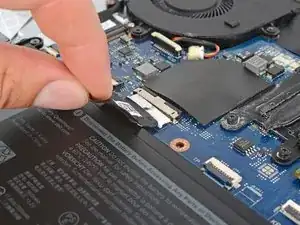

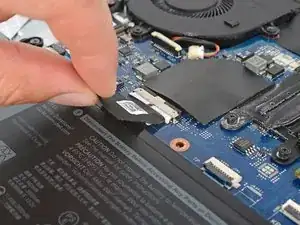

Pull the tab on the head of the battery cable away from the socket to disconnect the battery.
-
To reassemble your device, follow these instructions in reverse order.
For optimal performance, calibrate your newly installed battery after completing this guide.
Take your e-waste to an R2 or e-Stewards certified recycler.
