Dell Inspiron M5030 Processor Replacement

Geschrieben von: Jenine Quintana

Kommentare: 9

Dell Inspiron M5030 Processor Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

15 Minuten

Einleitung

In this guide, you will learn how to replace the processor in the Dell Inspiron M5030. To remove, clean off, and replace the thermal paste in order to remove the heat sink, please refer to the Applying Thermal Paste Guide.

Werkzeuge

Schritt 1

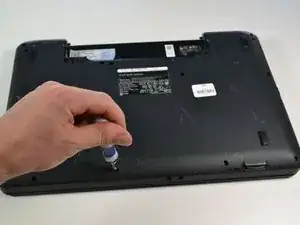

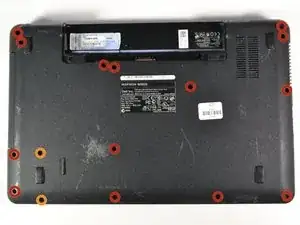

Remove all fourteen Phillips #0 7/16" screws from the bottom of the laptop.
Remove the two Phillips #0 5/16" screws from the bottom of the laptop.

If you are removing only the keyboard, you only need to remove two screws.

1 - Remove the screw to the immediate right of the INSPIRON M5030 label.

2 - To the top left of the INSPIRON M5030 label, there are two screws. Remove the left one.

===

I marked the two screw locations with green, for clarification.

- https://ibb.co/nz4rNG

- https://postimg.org/image/67kinagal/

Robert Johnson - 01/01/18

Schritt 2

Turn the laptop over and open the lid.

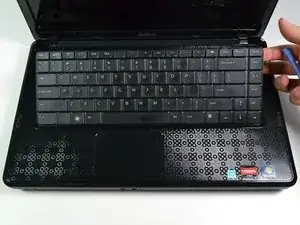

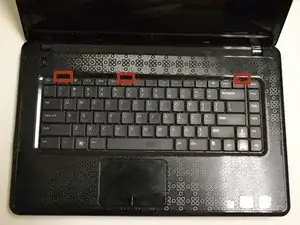

Locate the three tabs above the first row of keys on the top of the keyboard, found above the F1, F6, and PrntScr keys.

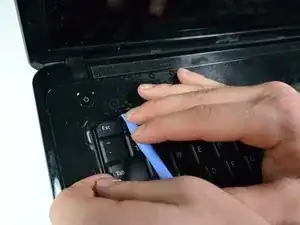

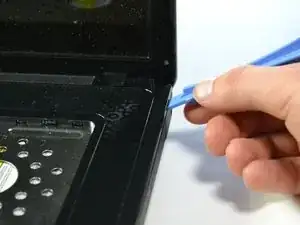

With one of your hands, push the leftmost tab down with the plastic opening tool (above the F1 key). With your other hand, lift the left side of the keyboard.
Push the middle tab down with the plastic opening tool and continue lifting from the left side of the keyboard to the right side (above the F6 key).
Push the rightmost tab down with the plastic opening tool and continue lifting from the left side of the keyboard to the right side (above the PrntScr key). The keyboard should be loosened from the laptop after these steps.

for your last bullet, maybe clarify saying "push the next to tabs with the plastic opening tool…"

Katie Pepi - 27/05/14

Schritt 3

After the top edge of the keyboard is loose, pull up on the keyboard gently.
Do not pull the keyboard up forcefully as the keyboard is still attached to the laptop by a ribbon.

Schritt 4

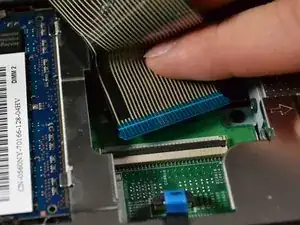

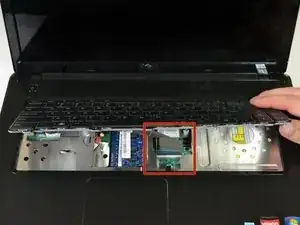

Pull up the bottom side of the keyboard and locate the ribbon connecting the keyboard to the motherboard.
Locate the blue end of the ribbon which is connected to the motherboard.

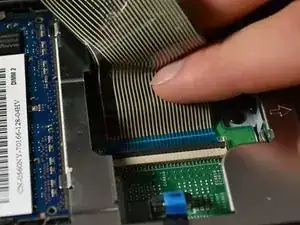

Lift up the black flap on the connector and gently pull the ribbon away from the connector which is parallel to the motherboard.
Lift the keyboard up and off of the motherboard. Detach the blue end of the ribbon from the connector.

Schritt 5

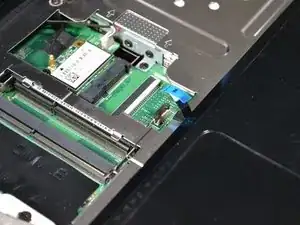

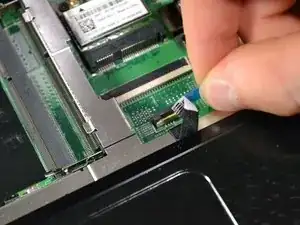

Disconnect the blue tab located just above the touch pad of the laptop.

how do you disconnect speaker cable from it’s connector do those tabs lift up push down or do you just pull them out never seen connectors like them before and i am a bit concerned i might break connector.

Garry

garry gibbons - 23/11/20

Schritt 6

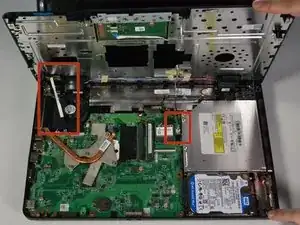

Use a plastic opening tool to pry up the plastic covering of the laptop by wedging it underneath one side of the covering and lift up.

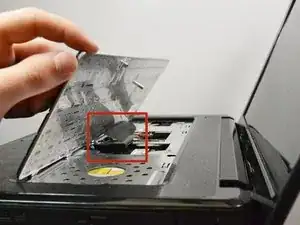

Do not lift off the cover all the way as it is still connected by two wires on the side nearest to the screen.

Schritt 7

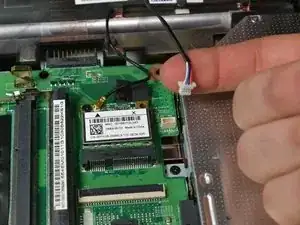

Disconnect the white block of wires which is the right-most wire connecting the covering to the laptop.

Schritt 8

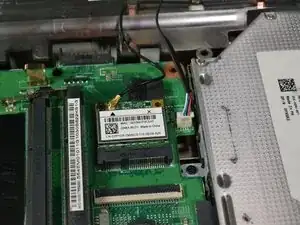

Disconnect the wire with the blue tab which is the left-most wire connecting the covering to the laptop.
You can now remove the plastic covering.

Schritt 9

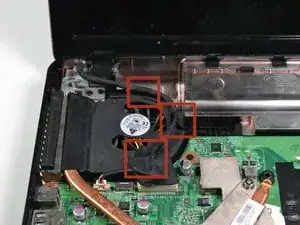

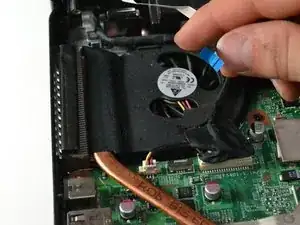

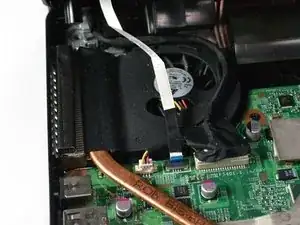

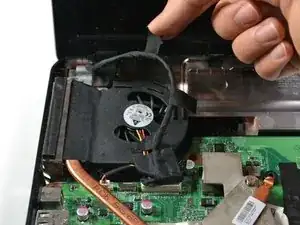

Remove the tape from the fan, but do not remove the tape from the wire.
Move the wire away from the fan.
There are ridges along the top of the fan which indicate where the wire should sit when you put the fan back.

Schritt 10

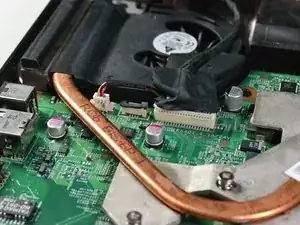

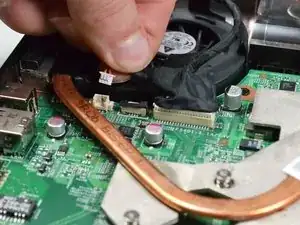

Locate the yellow/black/red wires and find the white plastic block where they end.

Schritt 11

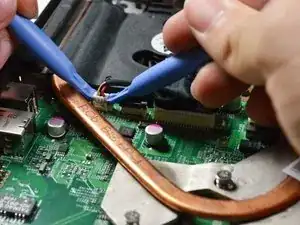

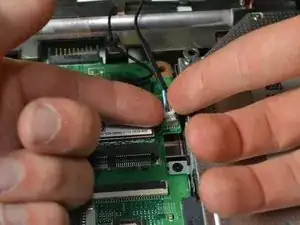

Using two fingers (one on either side of the block) or two plastic opening tools (one on either side of the block), pinch the bottom of the block and lift up to remove the block.

Schritt 12

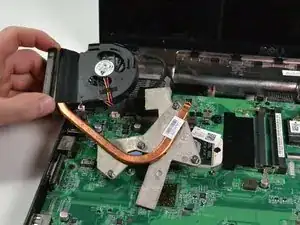

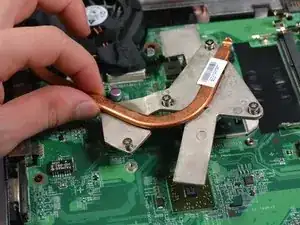

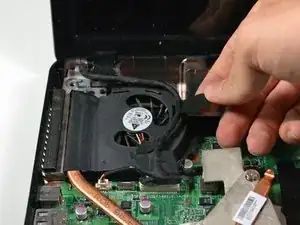

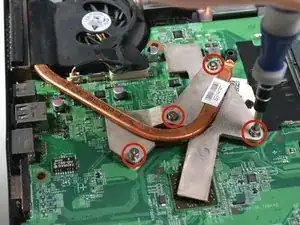

Unscrew the four screws from the heat sink with a Phillips #0 screwdriver.
You do not need to remove the screws completely from the heat sink.

Schritt 13

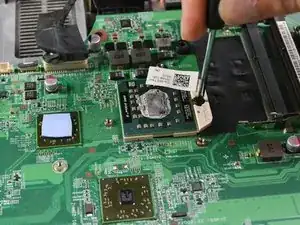

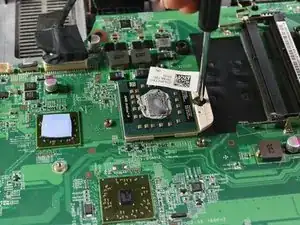

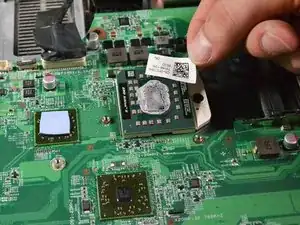

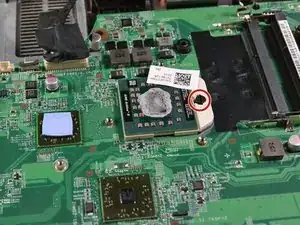

Remove the the black screw above the processor with a flathead screwdriver.

maybe circle the processor in the first picture for this step. i am not familiar with what the mother boards of computers look like and had no idea what the processor was in this image!

Katie Pepi - 27/05/14

Schritt 14

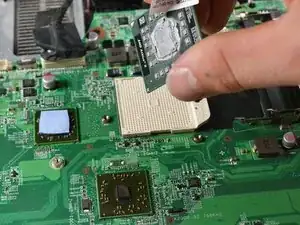

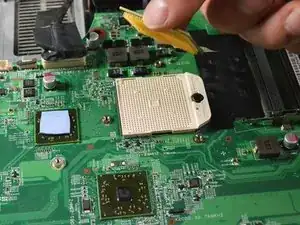

Grab the sides of the processor with your thumb and forefinger to remove the processor.

Remember to apply Thermal Compound on CPU before replacing the Heat Sink

cushtydog - 20/04/15

would that make the computer not turn on afterwards?

Sarala Wallin - 19/05/16

I would not prevent the computer from starting up, however it could prevent effective cooling causing damage. You should be using some kind of grounding device when touching the cpu.

Justin Hippensteel - 24/07/16

Easy, peazy thanks to the excellent verbal description and pics! Many thanks.

James Haden - 10/02/19

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jenine Quintana

Mitglied seit: 17/04/14

440 Reputation

Ein Kommentar

Is this the right part number for a cpu replacement for a dell inspiron m5030: PART # 3PDDV?

desertsun15 - 30/06/17
