Dell Optiplex 745 Small Form Factor Rear Audio Jack Replacement

Geschrieben von: Jeremy Nicholas
  • Kommentare: 0
Dell Optiplex 745 Small Form Factor Rear Audio Jack Replacement

Schwierigkeitsgrad

Very difficult

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

This guide is useful for when your speakers, microphone, or headphones cannot work when plugged into your desktop. The rear audio jacks are mostly used for accessories to a desktop that are meant to work with the desktop at all times. So making sure these jacks are functioning can be important.

Before beginning this guide, ensure you know how to solder. Here is a link to a helpful soldering guide for beginners: Wie man Lötverbindungen herstellt und entlötet

  1. 3XsQ2WiGnOcwFcsy
    3XsQ2WiGnOcwFcsy
    OZcrjMXljA5hH4dL
    WSFAbRlUbtbB3R6D

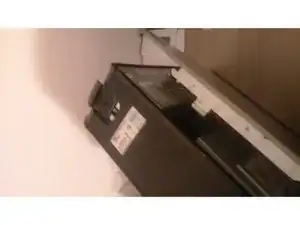

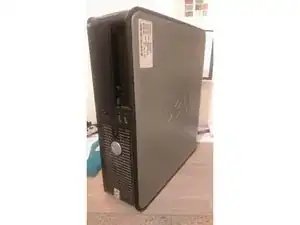

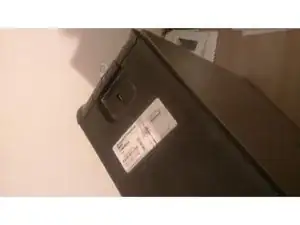

    • Remove the side panel/cover

    • Pull the slide at the top back.

    • This releases the panel, and it can be removed easily.

  2. T35xSkyS12kOOITF
    T35xSkyS12kOOITF
    Lv31WgXp5V5etaYT
    oSFidLGj1S2U1ZrW

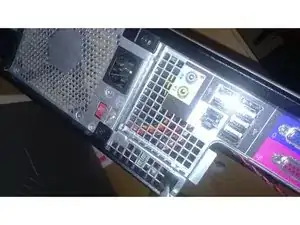

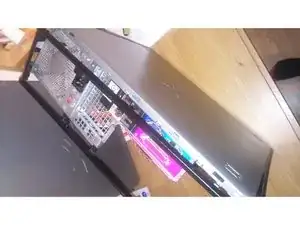

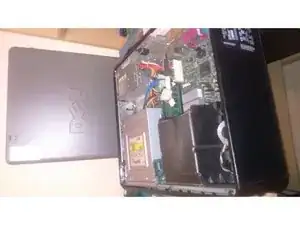

    • Remove the back cover.

    • Unscrew the 3 screws at the back, next to the power cable slot.

    • Pull along the sides of the cover bit by bit to remove each holder from its respective slot

  3. UwZtibFvVXIVDcrd

    • Upon opening the desktop, locate the rear audio jacks.

  4. DOUIqFtWYSRsWhJt

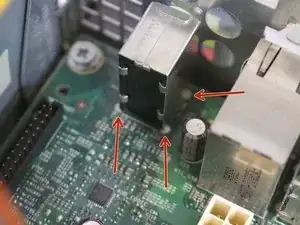

    • Once located, identify the soldering points that connect the audio jacks to the motherboard.

    • There is another location you cannot see in the picture which is a part of the rectangular pattern.

    • Gently apply the soldering iron to these points to loosen the hold on the audio jacks.

    • Applying the soldering iron for extended periods of time will damage your device. So it is best to cycle from point to point, slowly trying to remove the audio jacks little by little.

Abschluss

To reassemble your device, follow these instructions in reverse order.
