Use this guide to replace the thermal paste for your Dell Precision T7600 if your CPU is overheating.

The CPU is the main part of the computer, as important as the heart of human. When the heat dissipation capacity is insufficient, the temperature is too high, your computer will become less efficient and less responsive. In severe cases, it may stop working or even shut down automatically.

In the replacement process, you do not need to remove the CPU, you can just add silicon grease (thermal paste) on top of it.

In the step 4 and 5, each tower has four 18mm TONG DIN912 screws, so total is eight screws.

Make sure to power down your device before you begin.

  1. T3yMsuAdjVG2EDgR
    • Turn off the computer and unplug the power cord.

  2. PENiSnNWMyPK6Kel

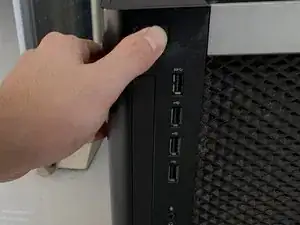

    • Press and hold the power button for 30 seconds.

  3. fwX1NoysDHgYjBAt
    fwX1NoysDHgYjBAt
    Zv1OUfQiPdMKUZQm

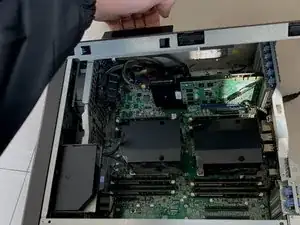

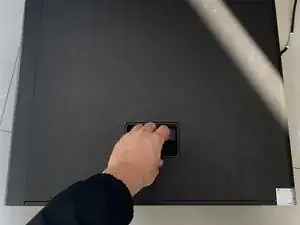

    • Open the case using the handle on the side.

    • Locate the CPUs.

    • The two black boxes are radiators, the CPUs are under these two black boxes.

  4. Rp3a3PMsGTGolTfK
    Rp3a3PMsGTGolTfK
    iu2YN65P2InDJ2kS
    g5ZwPFWSX1KNeviX

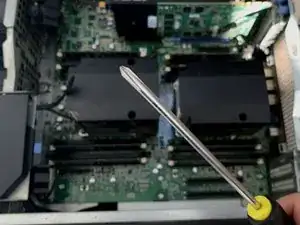

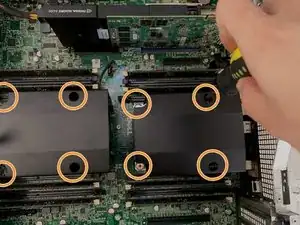

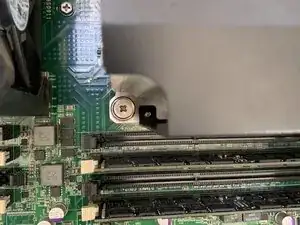

    • Remove the four 18mm screws from each of the black radiators with a Phillips #0 screwdriver. (8 screws total)

  5. 5ObHlJDZ4hVRgkwc
    5ObHlJDZ4hVRgkwc
    LRItPx4UqDMpcWcA
    nMdbEaRWZIoJvo5V

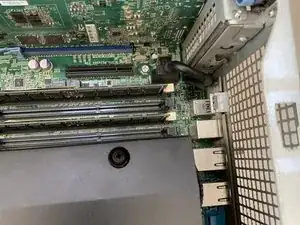

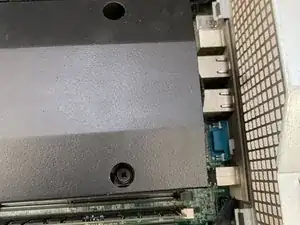

    • You need take all eight 18mm TONG DIN912 screws. (Each radiator has four.)

    • Remove the radiator vertically.

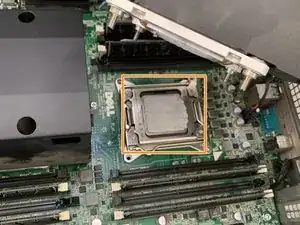

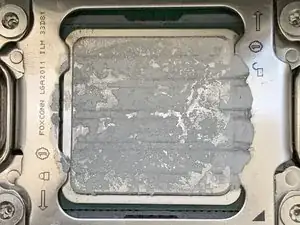

  6. BXpJnej3VEXpBpyE
    BXpJnej3VEXpBpyE
    OJIVhGIML2IF1oAB
  7. UlGGeFBlRHYCJqXc
    UlGGeFBlRHYCJqXc
    k4O2t3X4144lyAss

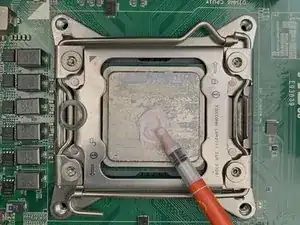

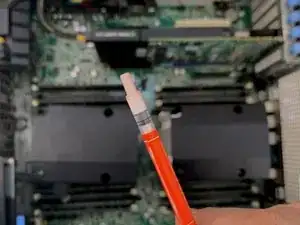

    • Squeeze 1 ML of thermal paste onto the clean CPU.

    • Don't worry about spreading the thermal paste around, as the pressure from the radiator should spread the paste evenly. You can check out this nifty Thermal Paste Application Guide if you need any help.

  8. TxYQemObHKgCYSOW
    TxYQemObHKgCYSOW
    Rg3JYQJVtIWV1TVh

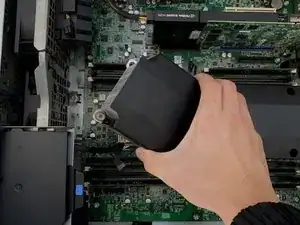

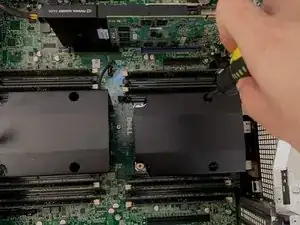

    • Replace the radiator tower, applying even pressure as you make contact with the CPU.

    • Tighten the screws slowly in a cross pattern, making sure that one side doesn't have more pressure than the other.

  9. RGGOIXWKoRUYNxwi
    RGGOIXWKoRUYNxwi
    NdSIdRbrMyQNwsAx
    rjGwqNUiESCKIgZC

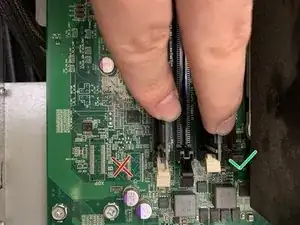

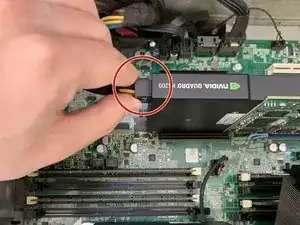

    • Make sure the memory sticks are firmly affixed into the slots and the graphics card is connected.

    • The green check shows a good RAM connection and the X shows a bad one.

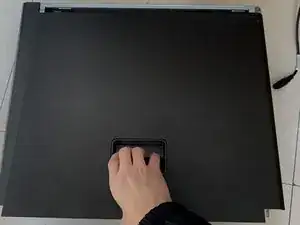

    • Close the case.

  10. CFANQNWbxuHZ5JVx
    CFANQNWbxuHZ5JVx
    qIZUJHGUOTAvCGxB

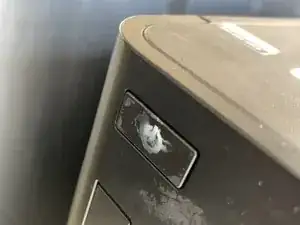

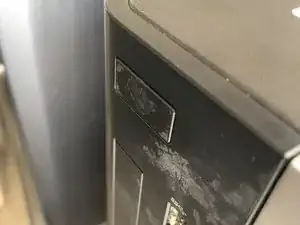

    • Plug in the power supply.

    • The power light should come one. This is the self-checking state, do not touch anything. Wait until the light goes off, indicating that the self-checking state is finished.

    • If the light does not go off (after 5 mins), you need to repeat steps 6 and 7.

Abschluss

To reassemble your device, follow these instructions in reverse order.
