Dell XPS 13 9305 Battery Replacement

Geschrieben von: Alex Diaz-Kokaisl
  • Kommentare: 0
Dell XPS 13 9305 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

Use this guide to replace the battery in your Dell XPS 13 9305 Laptop.

For your safety, discharge the battery below 25% before disassembling your device. This reduces the risk of fire if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

  1. TpIA2FFg24uBChBn
    TpIA2FFg24uBChBn
    a1R1dETf4GDWHuua

    • For your safety, discharge the battery below 25% and power down your device before disassembly.

    • Use a Torx T5 screwdriver to remove the eight 3.2 mm-long screws.

  2. PUQ6NCHjVWcFWYLC
    PUQ6NCHjVWcFWYLC
    5Q3yfSPhtWHWLiQe

    • At each corner, insert an opening pick between the back cover and the device body.

    • Pry upward to release the retaining clips. Listen for a loud click when each clip releases.

  3. rP6Tf2fvQSFLebHf
    rP6Tf2fvQSFLebHf
    IjcasfkFPqndIuuO
    1LWANk6PCDOLJwpi

    • The edges of the cover are very sharp. Use caution when handling this panel.

    • Lift the front edge of the cover away from you.

    • Some clips may release during this step. If the cover is stuck, move it side to side to help release additional clips.

    • Remove the back cover from the laptop.

  4. fkkDoQcAxlWTGevo
    fkkDoQcAxlWTGevo
    4YCHmBJt2EfxlXDj
    5wpXjjINOxwDWQpL

    • Push the battery connector out of its socket using the pointed end of a spudger.

    • Push the small tabs on the side of the connector to avoid damaging the cables.

  5. pwao2HejDPK5b3Uq
    pwao2HejDPK5b3Uq
    qBIoIwsvEmVesTG3

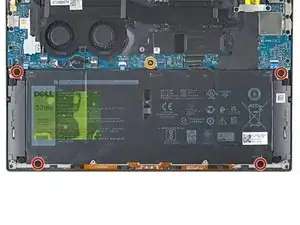

    • Use a Phillips screwdriver to remove the five screws securing the battery:

    • Four 2.4 mm-long screws

    • One 4.4 mm-long screw

  6. sCFanRoZsMA6mOMG
    sCFanRoZsMA6mOMG
    MZZIuNAkKmgjnGHu
    YJeJ4JYbL3IA3PiL

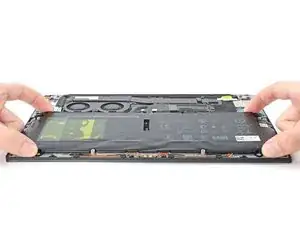

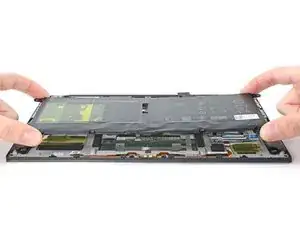

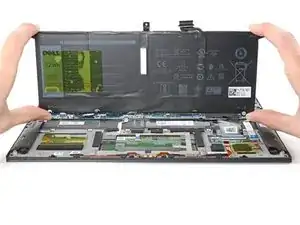

    • Lift the battery straight out of its recess and remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.

For optimal performance, calibrate your newly installed battery after completing this guide.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
