Dell XPS 15 9570 Heat Sink Replacement

Geschrieben von: Margaret Combs
  • Kommentare: 4
Dell XPS 15 9570 Heat Sink Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

20 - 45 Minuten

Einleitung

Follow this guide if you need to replace the heat sink of your Dell XPS 15 9570. You may need to complete this replacement if your computer is overheating or if you wish to apply more thermal paste.

Before starting this guide, power the laptop off and disconnect from the charger.

  1. XDM21s2U3cke3sGH

    • Make sure your device is powered off and unplugged before starting

    • Flip the device over so the base cover of the computer is facing upwards.

  2. d1TkpNtEmj1gYkSq
    d1TkpNtEmj1gYkSq
    JvcaxuB3RfDfEGdd
    XwugwAd2HEwvmXtf

    • Using a Torx T5 screwdriver, remove the ten 3 mm screws on the back.

  3. YrsOILKZD1PRTYwJ
    YrsOILKZD1PRTYwJ
    Fe25FODYZtLlMT2f

    • Flip open the system badge and with a Phillips #00, remove the two 8.5 mm screws.

  4. KVZHHmymMGCjCZTD

    • Lift the back cover off of the device.

  5. JUxdS4psiWRxTvZG

    • Using the Phillips #00 screwdriver, remove the four 4 mm screws holding the battery in place.

    For laptops with the larger battery, there are actually 9 screws to remove.

    nebman227 -

    My previous comment is incorrect, it is 7 screws, not 9, for the larger battery

    nebman227 -

    in the red circles wrong screws marked.

    Eugenio Rodriguez -

  6. LQBoPGVRdlPDyOw2

    • Use the iFixit opening tool to disconnect the battery connector from the motherboard.

  7. dDCbvb1B1h5jM2LC

    • With your hands, pick up and remove the battery from the system.

    Just right except my battery was full width.

    William Corwin -

  8. CBE11KkBaDB1W14u
    CBE11KkBaDB1W14u
    WH1oQGErV4YBE1M2

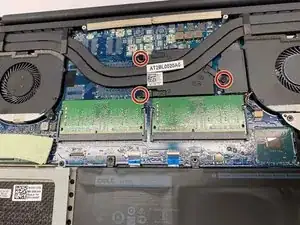

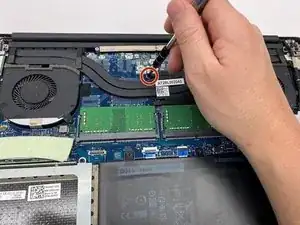

    • Use the Phillips #00 to remove the three (without graphics card) or four (with graphics card) 3 mm screws that connect the heat sink to the system board.

  9. HdqVHZpTaA6WM6xH

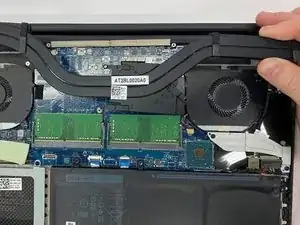

    • Lift the heat sink from the device. The thermal paste may have dried and make this handling more complicated, be careful.

Abschluss

To reassemble your device, follow these instructions in reverse order.
