Dell XPS M1530 Heat Sink Replacement

Geschrieben von: Jase Sasaki
  • Kommentare: 0
Dell XPS M1530 Heat Sink Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 30 Minuten

Einleitung

If your computer is still running hot after cleaning the fan, you should remove the heat sink to check that it is not damaged.

  1. wJatXlL6lrCdmwuW

    • Turn the computer upside down with the battery facing you.

    • Turn the computer off and disconnect the charging cable from the computer.

    • Failure to unplug the charging cable may result in electric shock.

  2. IhXR2NZjDY36TLsM

    • Push the switch as far to the right as possible to unlock the battery.

  3. k2jFPu3PqITRYlKx
    k2jFPu3PqITRYlKx
    ENTx41oNDixCGAvy

    • Remove the battery using two hands and pull it away from the computer.

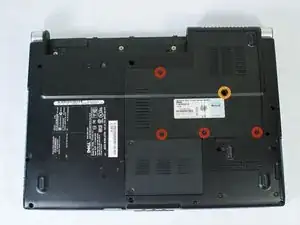

  4. gkyeU3Y4aUaWA5mo

    • Unscrew the four Phillips #1 screws holding down the back panel. Then remove one 5.8mm Phillips #1 screw labeled "M" in the middle of the back panel.

    • Four 3.9mm Phillips #1 screws

    • One 5.8mm Phillips #1 screw

  5. IgWUeMeM2Pk3KbNB
    IgWUeMeM2Pk3KbNB
    XGyO5o5ME3cPCvhD

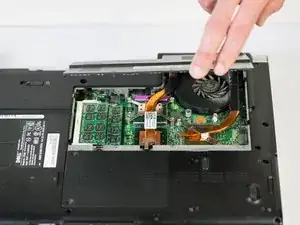

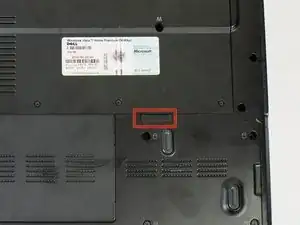

    • Using the highlighted indent, pull up and out to remove the back panel.

    • The indent should provide enough grip to remove the panel with ease.

  6. HZZqEJyFk1wBMJMy
    HZZqEJyFk1wBMJMy
    3wlrORCxpEoaqq3Q

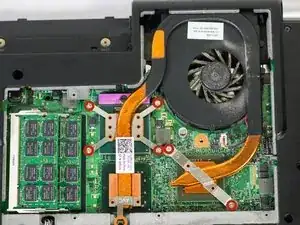

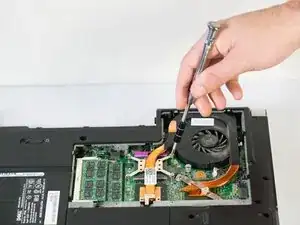

    • First, unscrew the six screws that are holding down the fan and heat sink with a Philips #1 screwdriver. Then use a Phillips #1 to remove the single screw near the bottom of the heat sink.

    • Six Silver Chrome 5.8mm Phillips #1 screws

    • One 5.8mm Phillips #1 screw

    • Remove the four screws that are holding down the CPU (the four to the top left that form a rectangle in this image) first. Unscrew them in an X pattern (eg. top left screw, bottom right screw, top right screw, bottom left screw) to minimize risk of harming CPU.

  7. ZlYGkKIuQuHfSIII
    ZlYGkKIuQuHfSIII
    tu6AQg62uZbIMPeG

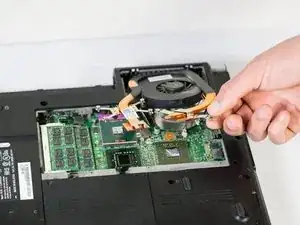

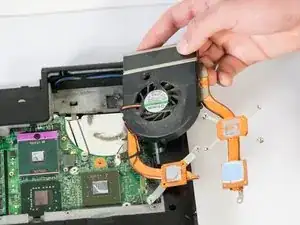

    • Carefully lift the fan and heat sink from the laptop.

    • Be careful not to pull up too hard, because the power pin is still connecting the fan to the laptop.

  8. vsMcUGsVWSlteiqb

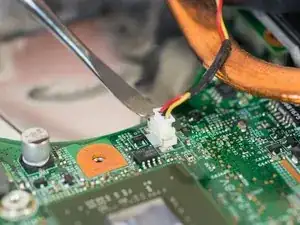

    • Use your fingers or a spudger to remove the power pin connecting the fan to the laptop by pulling it straight up off the motherboard.

  9. NSUFx32R2UexrAgo

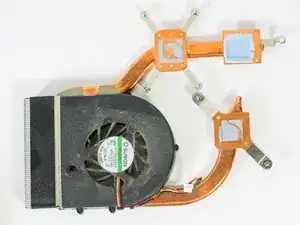

    • Remove the fan and heat sink from the laptop.

    • When installing the new heat sink, do not forget to replace the thermal paste underneath the heat sink. See iFixit's Applying Thermal Paste guide for further instructions.

Abschluss

To reassemble your device, follow these instructions in reverse order.
