DeltaLab CT-40 Chromatic Tuner Input Jack Port Replacement

Geschrieben von: Theodore Tan
  • Kommentare: 0
DeltaLab CT-40 Chromatic Tuner Input Jack Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

Is your input jack broken in your chromatic tuner? Instead of buying a new one you can just buy the input part itself and replace it. This method works for similar tuners but this guide is specifically for the DeltaLab CT-40 Chromatic Tuner.

  1. mUSPKeNRZNXq5yZD
    mUSPKeNRZNXq5yZD
    pKcGnyRJYc5Q2H2q

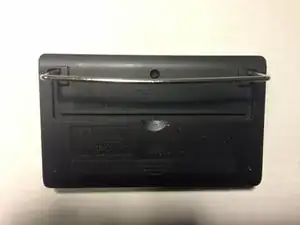

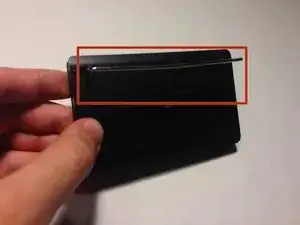

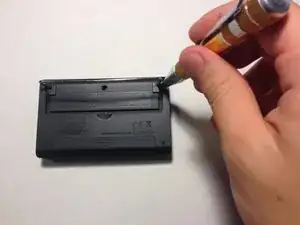

    • First, open the metal stand to access the screws without damaging the body.

  2. IR13MJw3mtVRyTDD
    IR13MJw3mtVRyTDD
    m5Mdmv1kCVMwDTyD

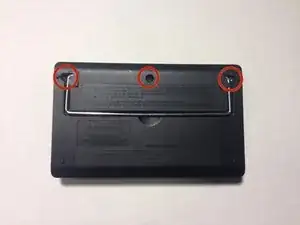

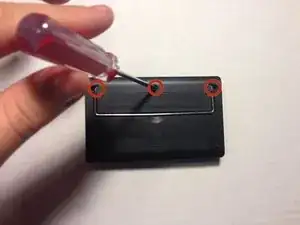

    • Remove the 3 outer 1.2 mm Phillips #1 screws using a small head screwdriver.

  3. UvIlLVkqi1Cc2e2W
    UvIlLVkqi1Cc2e2W
    hbUSqwi3HAxIPWug

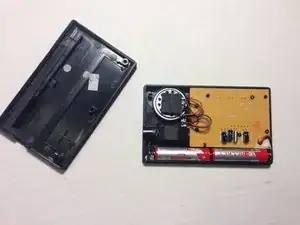

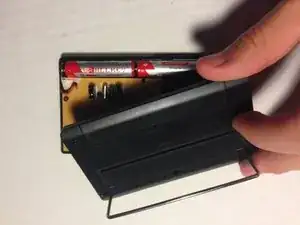

    • Remove the back casing to reveal the inner circuitry.

  4. qF6tJfuPrQ3QGDNC

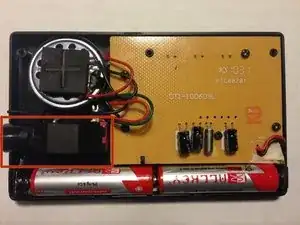

    • Locate the different parts of your tuner, finding the broken input jack port.

  5. EouiM1omc4ucCIEK
    EouiM1omc4ucCIEK
    2RGkCkHXEMY1BbiX

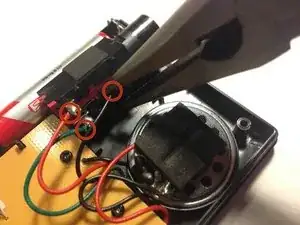

    • Snip the wires attached to the input jack port using the wire cutter as close to the input jack port as possible.

  6. 11cgxecvnDn236Y6
    11cgxecvnDn236Y6
    VySv5fHafAsuxNLu

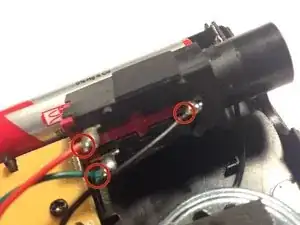

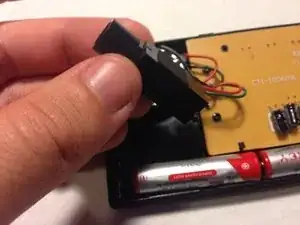

    • Take your new input jack port and solder the wires to the corresponding connection areas on the new port.

    • Learn how to solder (here).

  7. ukCmhqSneenffkoR
    ukCmhqSneenffkoR
    lGOVigk3BeNyYbAC

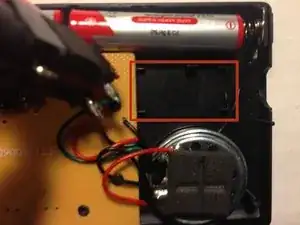

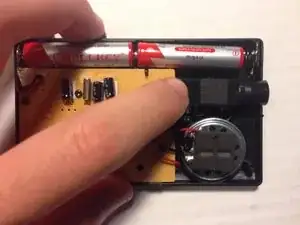

    • Fold the wires back and put the new input port into the slot where it belongs on the tuner.

  8. HuRCbRGFaREVWyN6
    HuRCbRGFaREVWyN6
    MwrMEbsSrZiHv4OT
    1kCL1YIhiE5a1rav

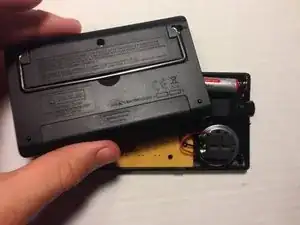

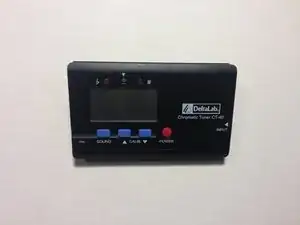

    • Replace the casing and 3 1.2 mm Phillips #1 screws using the screwdriver.
