Dewalt Air Compressor DWFP55126 2016 Manifold Replacement

Use a long-shank T10 driver to remove the manifold cover screw.

Lift the cover directly up off of the gauges to remove.

Use a T20 driver to remove the two handle screws, one on each side.

Grab the handle like you would if you were to pick the compressor up. Pull up and push forward away from the gauges at the same time to rotate the handle up off the case.

Lift the handle off to remove.

Remove the following four screws:

Three 20 mm-long T20 screws.

One 20 mm-long Phillips #1 screw.

Firmly push the top case off of the four tabs to detach.

Carefully pull the half of the case that is opposite the manifold away from the tank.

Use a large flathead screwdriver to depress the plastic tab on the red power switch closest to the open side of the case.

While keeping the tab depressed, grab the top side of the switch and pull directly up off the case.

Pull the switch farther out of the case.

Use a flathead screwdriver to pry both wire connectors slightly off the plugs on the bottom of the switch.

Once the wires are loosened from the plugs on the switch, completely remove both wires.

Remove the power switch.

Carefully pull to remove the connector on the ground wire located inside the case.

Use needle nose pliers to bend the check valve hose clamp up away from the hose.

Once the hose clamp is bent enough to clear the hose, lift it up and off to remove.

Pull the hose off the fitting to remove.

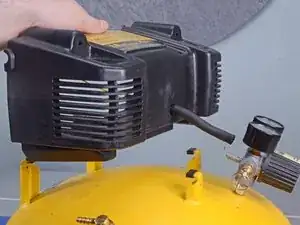

While holding the plastic housing, pull the pump assembly out, careful to not snag hoses or wires.

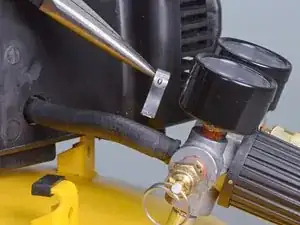

Use needle nose pliers to bend and remove the hose clamp from the manifold hose.

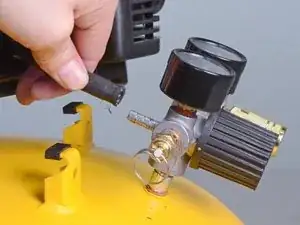

Pull the hose away from the manifold fitting to remove.

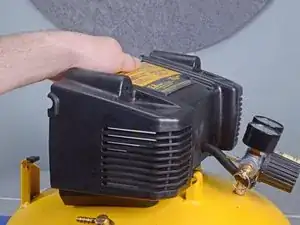

Remove the top casing.

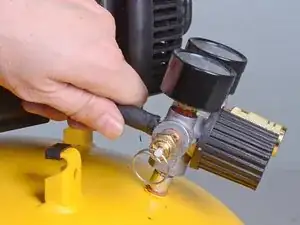

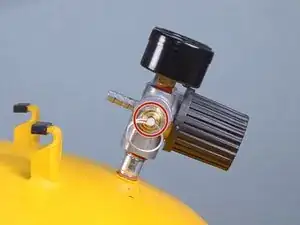

Use a 9/16 inch wrench to remove the spring-loaded air release valve from the manifold.

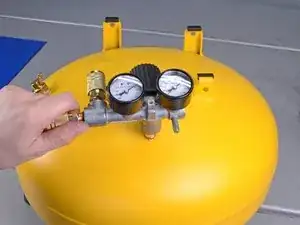

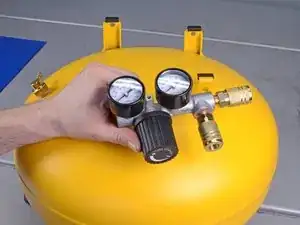

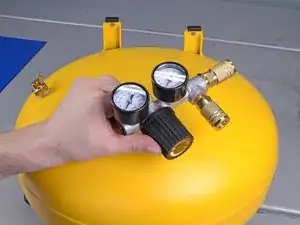

Twist the entire manifold assembly counterclockwise to unthread it from the tank.

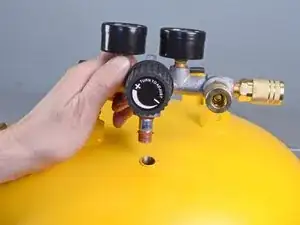

Remove the manifold.
