DigiTech RP70 Input/Output ¼” Ports Replacement

Geschrieben von: Elijah Smith
  • Kommentare: 0
DigiTech RP70 Input/Output ¼” Ports Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

If the input/output port is broken this guide will teach you how to remove the broken component for replacement.

  1. OrjgPDq2feho53Ai
    OrjgPDq2feho53Ai
    pAfkGCYBHXoL14ZC

    • Unplug the device from its AC power adapter; unplug anything connected to the input/output jacks.

    • Remove the four 8mm Phillips #0 screws located on the back panel.

  2. SvSqM1H4AY3dyrPv
    SvSqM1H4AY3dyrPv
    sGQFAGaGesvr6pbf

    • Remove the back panel to expose the motherboard.

  3. pIdYF3SBFiiSQHFX

    • Remove the two 11mm #0 Phillips screws located at the bottom of the motherboard.

  4. VClvmoEdeDiCuoQG

    • Lift the indented end of the motherboard opposite the input/output jacks. Then, pull away from the input/output jacks to slide the motherboard out of the casing.

  5. 6MGZYAZbbp6bAJbm
    6MGZYAZbbp6bAJbm
    HTx2QAwmQaO3HkGN

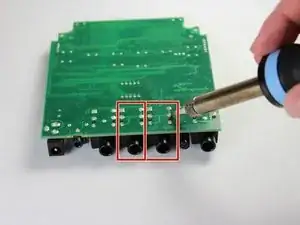

    • Desolder the back of the motherboard where the damaged input/output port is located.

Abschluss

To reassemble your device, follow these instructions in reverse order.
