Digiland DL1168A Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

To replace the Digiland DL1168A battery you will need an opening tool. Be sure to be careful. The glue on the battery is sticky and hard to get off.

  1. rkxHZNChugk4OrEB

    • Using an opening tool, begin softly prying open device by first inserting it in between the front and back panels.

    • Continue prying the edges while moving around the device's perimeter until the back can be easily removed.

  2. HAcLwS5VPRtg5agP
    HAcLwS5VPRtg5agP
    UvR5fSCCYCGWxQap

    • Carefully lift back panel away from the body of the device.

    • Be gentle when lifting the back panel. The speaker wires are still connected to both the front and back panel.

  3. cAPUwyPnANY3naDM
    cAPUwyPnANY3naDM
    XCjFLtKxvjRa16dJ

    • Desolder the four wires connecting the rear case to the motherboard.

    • Disconnect the wires from the motherboard.

    • Remove the rear case from the device.

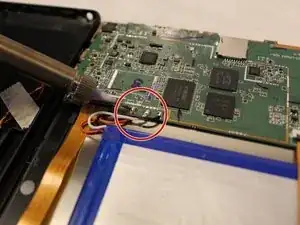

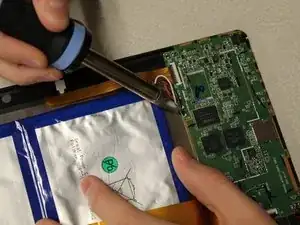

  4. E1TrEWdeeWOTunSN
    E1TrEWdeeWOTunSN
    jUYmPj6omacu4MKl
    ELw5hKBndpJUCxAS

    • Desolder the three positive, negative, and neutral red, black, and white wires from the motherboard that are connected to the battery.

    • The soldering tool is hot, and will burn. Follow this link for instructions on Wie man Lötverbindungen herstellt und entlötet.

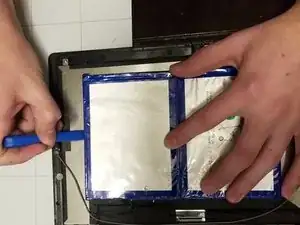

  5. 2jO4NJbp2ZvGgHjZ
    2jO4NJbp2ZvGgHjZ
    xnvveICCXmHQymYq

    • Using an opening tool, separate the battery from the tablet.

    • Follow the edge of the battery to loosen the glue.

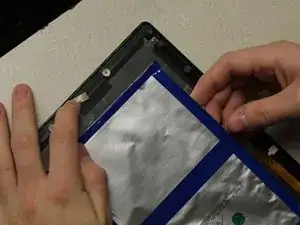

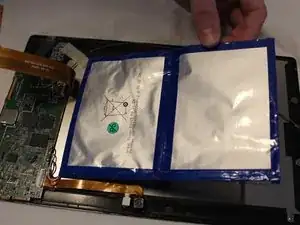

  6. 3UTIdjJZNU6YdTGd
    3UTIdjJZNU6YdTGd
    XfBRGpMOhtHaYi1L
    ChZeDGoClYhCWNM1

    • Once the glue is loosened, pry the battery away from the screen.

    • Pulling on the battery may cause you to bend the battery. Bending the battery could cause it to break open. Battery fumes are toxic and unsafe.

Abschluss

To reassemble your device, follow these instructions in reverse order.
