Digiland DL1168A Front/Rear Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

Here is a guide on how to replace your Digiland DL1168A camera and replace it with a new one.

  1. rkxHZNChugk4OrEB

    • Using an opening tool, begin softly prying open device by first inserting it in between the front and back panels.

    • Continue prying the edges while moving around the device's perimeter until the back can be easily removed.

  2. HAcLwS5VPRtg5agP
    HAcLwS5VPRtg5agP
    UvR5fSCCYCGWxQap

    • Carefully lift back panel away from the body of the device.

    • Be gentle when lifting the back panel. The speaker wires are still connected to both the front and back panel.

  3. cAPUwyPnANY3naDM
    cAPUwyPnANY3naDM
    XCjFLtKxvjRa16dJ

    • Desolder the four wires connecting the rear case to the motherboard.

    • Disconnect the wires from the motherboard.

    • Remove the rear case from the device.

  4. iJm5CB1NMk4NsFhX

    • Use tweezers to remove the cover that keeps the camera lens in place.

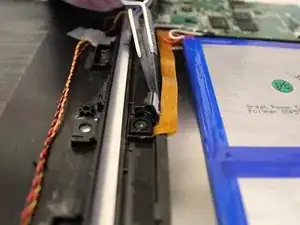

  5. Se1LOjKnjgYRTkQR

    • Use tweezers to gently begin to lift the back piece off.

    • Lift gently because the lens is connected to the back piece by a small cord.

  6. y1PyGY2RNjqqCZJx

    • After lifting gently both the lens and the back piece will be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
