The following guide covers how to replace the 3.7 V lithium-ion battery in the Digitac Jazz Ultratab C725. The battery removal procedure for this device requires the proper use of a soldering iron. If you are unfamiliar with soldering, we recommend that you check out this soldering guide.
-
-

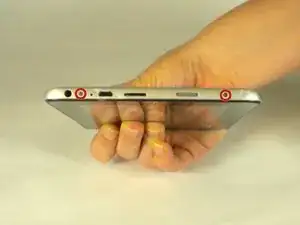

Locate the four 3.5 mm Philips head screws. There are two screws on top and 2 screws on the bottom.
-

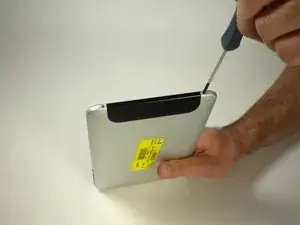

Remove four screws with the Phillips #00 screwdriver.
-
-
-
Flip your device so that the long side without the buttons is facing you.
-

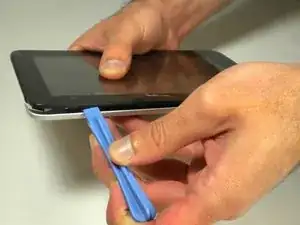

Insert the plastic opening tool between the silver back plate and the screen. From the corner of the device on either side, pry the seam of the device about 1 inch.
-

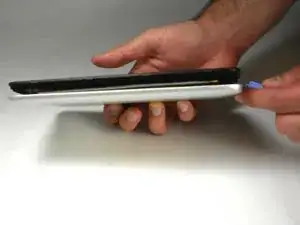

With the plastic opening tool, pry the screen apart from the back plate.
-

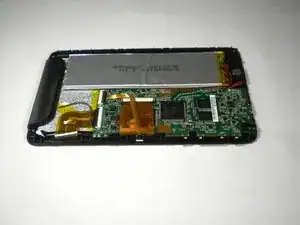

Keep prying the screen apart from the back plate until they are separated.
-

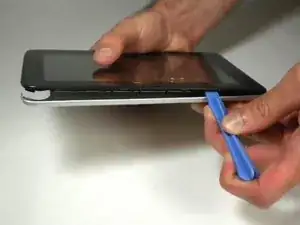

With the plastic opening tool, if necessary, pry part the remaining seams of the device.
-
-
-

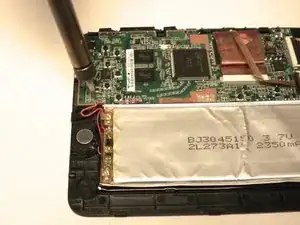

Use a soldering iron to melt the solder that connects the battery wires to the motherboard.
-
Pull the wires once the solder is melted.
-
-
-
Peel up one of the long edges of the battery.
-

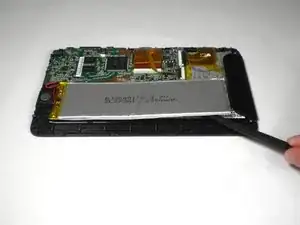

With the flat side of the Spudger insert it underneath the battery.
-
Weaken the strength of the adhesive by sweeping back and forth along the battery.
-

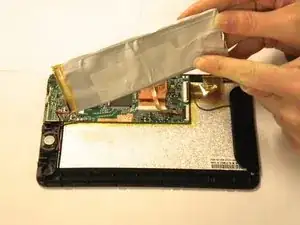

Pull the battery out of the device once it is loose.
-
To reassemble your device, follow these instructions in reverse order.
