Digital2 D2-861G Charging Port Replacement

Geschrieben von: Eduardo Duran
  • Kommentare: 0
Digital2 D2-861G Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 30 Minuten

Einleitung

This guide will be showing you how to replace the charging port for the Digital2 D2-861G model. Be sure to carefully remove parts to avoid damaging the device.

  1. eOoaPJkXCvYCaU3H

    • Working on your device while powered on may result in electric shock. Make sure to unplug and power down your device before you begin.

    • Place your device on a soft cloth to avoid scratching the screen.

    • Flip your device over so back panel is facing upwards.

  2. YFKB3XjsdKKIrGrA

    • Do not use a lot of force as it can break the clips or the back panel.

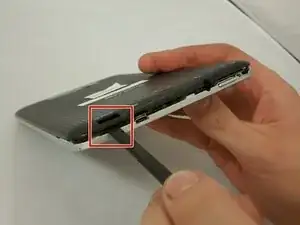

    • Insert spudger in the slot below the micro SD card.

    • You should hear clips releasing as you pry along the edges.

    • With the spudger tool, run along the edges of the backing undoing 20 plastic clips.

  3. PbvOrSwrGNmAJX3i
    PbvOrSwrGNmAJX3i
    QfXWROKCElDXQGJU
    Rv31RAZTI1qwDfCW

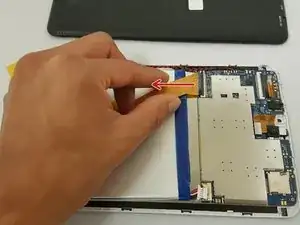

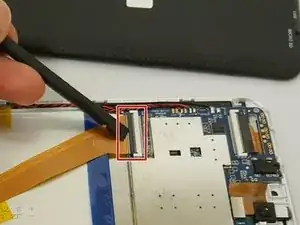

    • Locate the gold colored ZIF (Zero insertion force) connector and disconnect it from the motherboard.

    • To disconnect the ZIF connector, go under the black tab and lift up. Then pull the connector out.

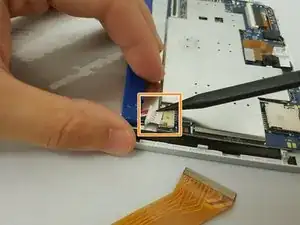

    • Locate the bundled cable connector and disconnect it by simply pulling it gently or using a spudger.

    • Disconnecting the bundled cable connector helps avoid short circuiting anything on the device.

  4. kgXoiaIgGFpUaQKH
    kgXoiaIgGFpUaQKH
    hKZRUanP4oZ4MTLJ
    AoCF5iCaXdgRAiEE

    • Make sure to have your magnetic board to hold your screws.

    • Remove two 3.51mm screws that are located on the top corners with your Phillips #00 screwdriver.

    • Next, unplug the ZIF connector by going under the black tab and simply lift up.

    • Slide the connector out with the pointed side of the spudger.

  5. TO42vrrtKIEethkP
    TO42vrrtKIEethkP
    Kny2bHgwrXFEYqXk
    WVsYgd2FsDErGNRe

    • This step is optional if you want to remove the metal casing.

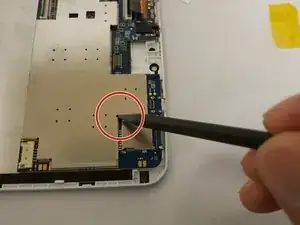

    • Insert the pointed side of the spudger in the corner and gently lift.

    • Once one side is lifted, use your fingers and with little force, lift up to remove the case.

  6. tFPJtnDNtNWjjlRF

    • Use little force or else you risk breaking the motherboard.

    • Watch out for the ZIF connector!

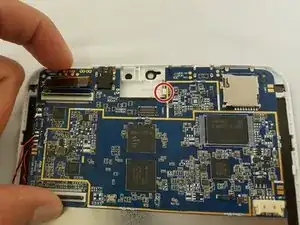

    • There is a white clip holding the motherboard.

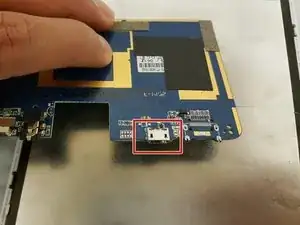

    • To remove the motherboard, grab the component on the top left and gently lift while pushing or pulling to the right.

  7. qq3pXvxHgDRFV5J1
Abschluss

To reassemble your device, follow these instructions in reverse order.
