Digital2 D2-861G LCD Screen Replacement

Geschrieben von: Eduardo Duran
  • Kommentare: 0
Digital2 D2-861G LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

This guide will be showing you how to replace the LCD screen. Be sure to carefully remove components to avoid damaging the device.

  1. kkNOPLZuXm43eOku

    • Working on your device while powered on may result in electric shock. Make sure to unplug and power down your device before you begin.

    • Place your device on a soft cloth to avoid scratching the screen.

    • Flip your device over so back panel is facing upwards

  2. eAJYKD3VIgAPNEIM
    eAJYKD3VIgAPNEIM
    ZGrlCuusLKcIV1BE

    • Do not use a lot of force as it can break the clips or the back panel.

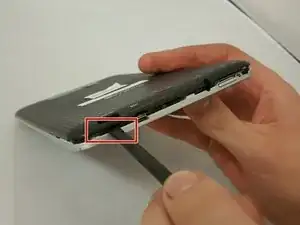

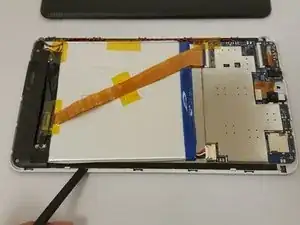

    • Insert spudger in the slot below the micro SD card

    • You should hear clips releasing as you pry along the edges.

    • With the spudger tool, run along the edges of the backing undoing 20 plastic clips.

  3. k1QIRQVYaDppvSxH
    k1QIRQVYaDppvSxH
    dKaXQSMD2ZrU2ZZi
    R5SVcXojAJpSAKUt

    • Look at the images to locate the black tabs.

    • Carefully remove the tape to avoid damaging the device.

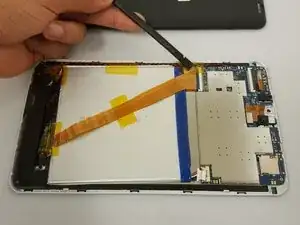

    • Remove ALL the yellow tape securing the gold colored ZIF (Zero insertion force) connector and the battery. Discard or save the tape if you would like.

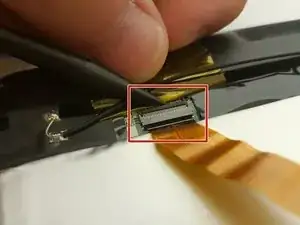

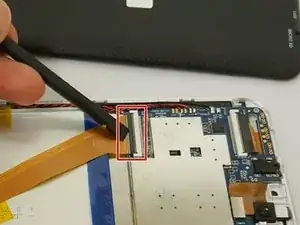

    • To unclip the connector. Go under the black tab with a spudger or finger nail and simply lift up.

  4. JQjikNIJvo1XGtXn
    JQjikNIJvo1XGtXn
    QlUBMXpnG4VKtssM

    • Make sure to not bend or puncture the battery when removing it.

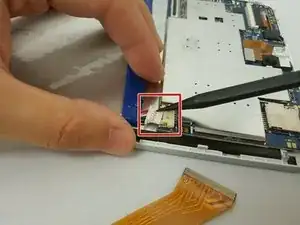

    • Locate the bundled cable connector and disconnect it by simply pulling it gently with your hands or using a spudger.

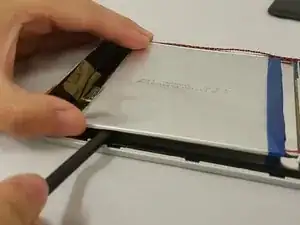

    • Use prying tools to carefully break the adhesive under the battery

  5. EGOoM6DHIGJirGHc
    EGOoM6DHIGJirGHc
    hPNSp66WNF2c16qw

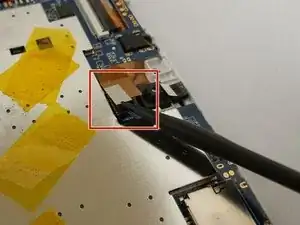

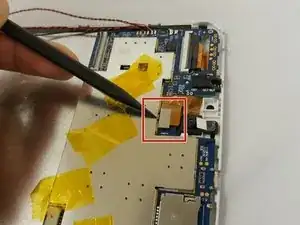

    • Locate the flat-top connector. Go under it with the spudger and simply lift up.

  6. PxhC6fIvybRTEHlp
    PxhC6fIvybRTEHlp
    qAentEwEgfIAOVUg

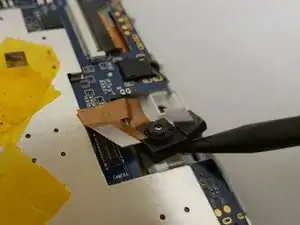

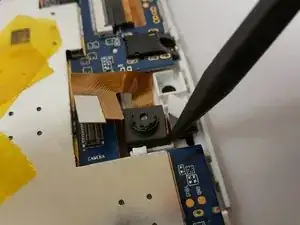

    • To remove the camera, simply use the pointed end of the spudger and insert it in the corner and gently lift.

  7. RAPRvHLDvZ5s3CyE
    RAPRvHLDvZ5s3CyE
    QT6XUgGfhthQ1CIn

    • Be sure to have a magnetic mat or anything magnetic to hold your screws!

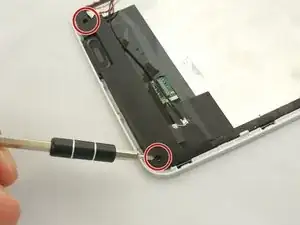

    • Remove two 3.51mm screws located on the bottom corners of the device with your Phillips #00 Screwdriver.

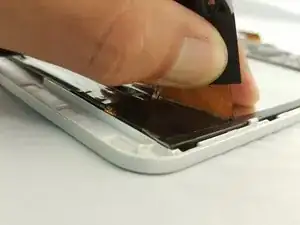

    • Carefully lift the casing and pull back the tape along with the soldered wire.

    • You can remove the soldered wire if you want or leave it connected. Refer to iFixit's guide on how to Solder Wie man Lötverbindungen herstellt und entlötet

  8. JFeUsbgGWt6QW3QF
    JFeUsbgGWt6QW3QF
    PbpHh5t2vMVN32Lf
    CNp2FWo3kmHma1WR

    • Make sure to have your magnetic board to hold your screws!

    • Remove the two 3.51mm screws that are located on the top corners of the device with the same phillips screwdriver..

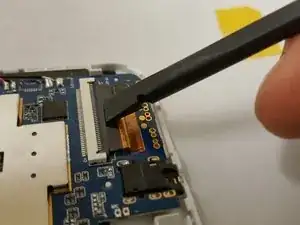

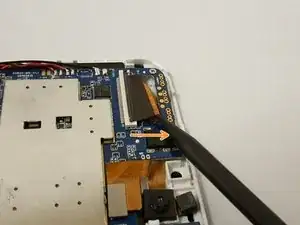

    • Next, unplug the ZIF connector and slide it out with the pointed side of the spudger.

    • To unclip the connector, go under the black tap and simply lift with your finger nail or spudger.

  9. HRotpJDkeYSOlPDG

    • Use little force or else you risk breaking the motherboard.

    • Watch out for the ZIF connector!

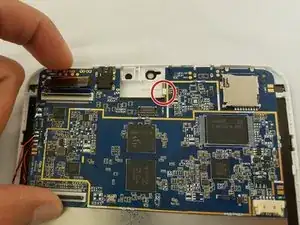

    • To remove the motherboard, grab the component on the top left and gently lift. Be careful with the clip holding the motherboard.

  10. DoclatYdcgJ1yXCL
    DoclatYdcgJ1yXCL
    PytGVqGkCAdVBZJG
    TfrqMyJ22ZwG2VUr

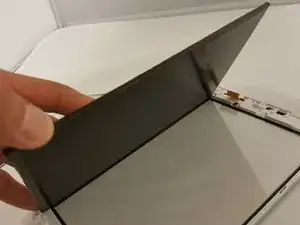

    • Now that every component is removed, use the flat side of the spudger and insert it on the bottom of the screen.

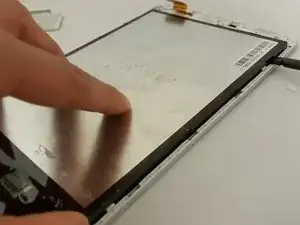

    • Gently move along the edges to lift the screen.

  11. 3GWx5KRuLoQWcRI2

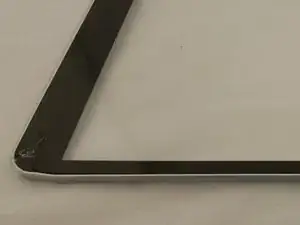

    • If you have a damaged front case, take the opportunity to replace that as well.

Abschluss

To reassemble your device, follow these instructions in reverse order.
