This guide will help users replace damaged or malfunctioning internal dual speakers on the Digitech XC-5206 Bluetooth speaker. Please refer to troubleshooting page before beginning replacement guide steps.
-
-

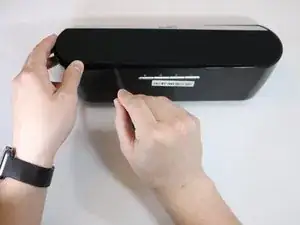

Remove the front panel by forcefully placing the flat edge of the spudger in between the panel and the plastic housing.
-

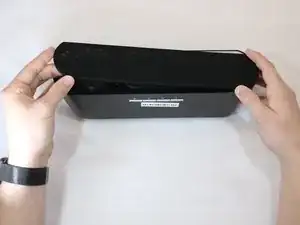

Angle the spudger and use your fingers to pry the panel off.
-
-
-

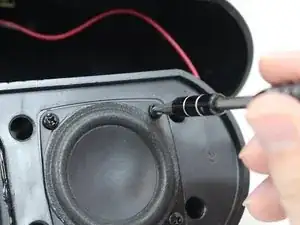

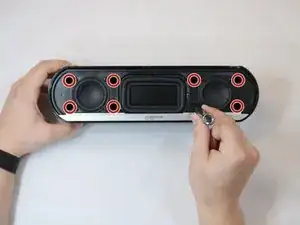

Unscrew all eight 14mm screws closest to the edges of the speaker by spinning a size PH2 screwdriver in a counterclockwise motion.
-

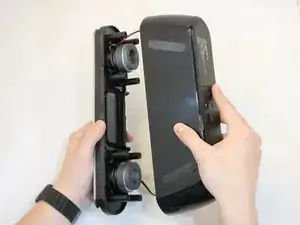

Dislodge face by holding speaker face down. Gently shake or tap front against table to fully remove face.
-
OR grab ahold of the silver tab to pull the speaker face out. This may require force.
-
-
-

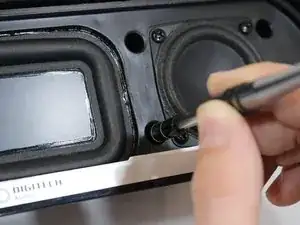

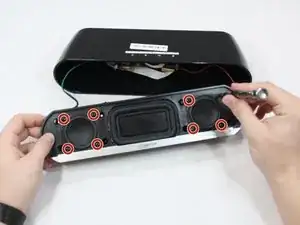

Unscrew the eight 10mm screws closest to the center of the speakers by spinning a Phillips screwdriver with a PH2 bit in a counterclockwise motion.
-
Push speaker bulbs forward and out of slot.
-
-
-

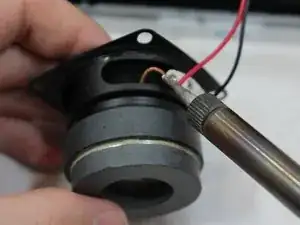

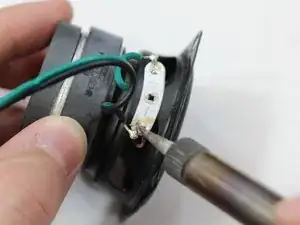

Remove green (left) and red (right) wired connection to speaker bulb using a soldering station.
-
To reassemble your device, follow these instructions in reverse order.
