Disassembling Behringer Eurolive B212D Power & Control Panel

Geschrieben von: Troy W. Weber
  • Kommentare: 2
Disassembling Behringer Eurolive B212D Power & Control Panel

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 - 25 Minuten

Einleitung

This speaker contains 3 main PCB's. One is for audio control, one is for power control, and the other (and largest) is for audio amplification. To access any of them for replacement, you must first open up the metal electronics box.

  1. Whj2vPTm2CqCGePm

    • CAUTION: Unplug your speaker from the power outlet.

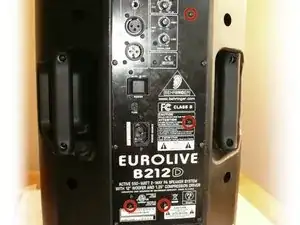

    • Remove the 8 Phillips screws from the back of the speaker.

  2. IlaTRENYXONpJsmU

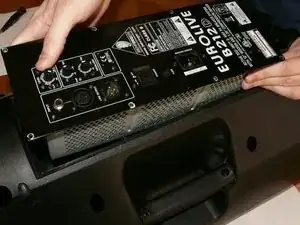

    • Carefully remove the back panel, lifting out the metal electronics-box with it.

    • To avoid damaging your speaker, remove slowly, as there is still a wire attached from the electronics box to the speaker.

  3. CDRAJbneBDeTaqlW
    CDRAJbneBDeTaqlW
    eWciSVRTwTEcl4L6
    QWImWQCbxU46WNvk

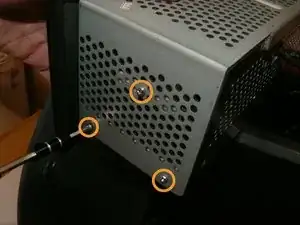

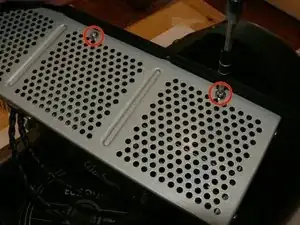

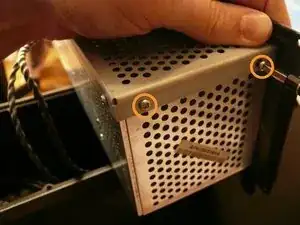

    • There are two silver, 6 mm-long machine screws with two 1/8" inner-diameter washers on the exterior of the metal electronics box; remove these first using a #2 philips screwdriver.

    • There are five of the same type of machine screw (silver, 6 mm-long) remaining around the metal electronics box's exterior; remove these as well.

    • You should have removed a total of 7 machine screws and 2 washers.

    • The reason for removing the two screws with the two washers first (or replacing them last when reassembling) is that their holes are actually slots. They are designed as slots to accommodate slop in the assembly, and if unscrewed out of order, you may have difficulty while removing - or possibly even damage - the other five screws.

  4. LpWvHGtBLOYOOqjk

    • Remove the portion of the metal housing that you freed with the 7 screws in the previous step.

  5. aQVnWBYbMXKjpCik
    aQVnWBYbMXKjpCik
    4YDTL1JqLXAqmHuD
    31BuKwhJAWa2W1nJ

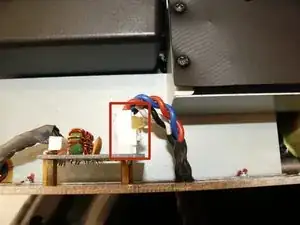

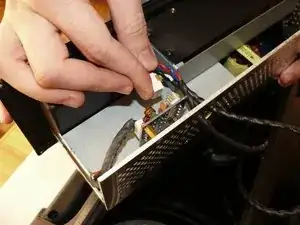

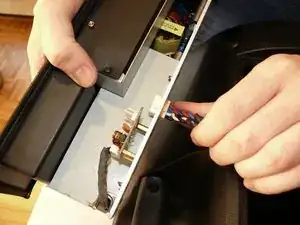

    • Inside the metal electronics box housing is a white clip attached to a small PCB; remove this.

    • The white clip in this image has been glued, indicating that the manufacturer may not expect the end user to remove this clip; it is difficult to proceed with the disassembling without doing so, however, because the rest of the speaker does not provide a sufficient surface on which to work.

    • Snake the clip head through the hole in the metal electronics box casing.

  6. Eu3YFTxp2FBrs5EP
    Eu3YFTxp2FBrs5EP
    tbgIZTORyfpE2tTS

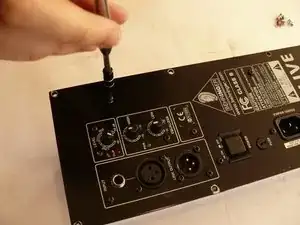

    • Remove the 4, 7/32" long machine screws with a #2 phillips head screwdriver.

  7. jDjWPGvI41CWvdFX
    jDjWPGvI41CWvdFX
    jJX1NYwAacK2iUmS

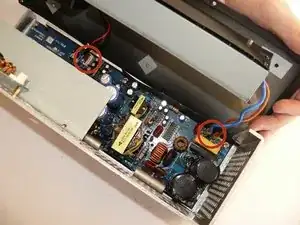

    • Caution: The circuit board contains many capacitors that could cause serious injury if touched. If possible, use a capacitor discharge probe to safely rid the capacitors of dangerous charges.

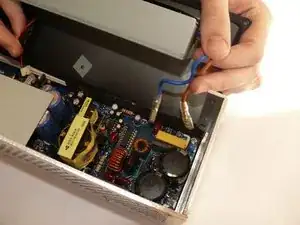

    • Rotate the back panel so you can view the interior; note the three wires attached.

    • Remove the wires to you can fully remove the back panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
